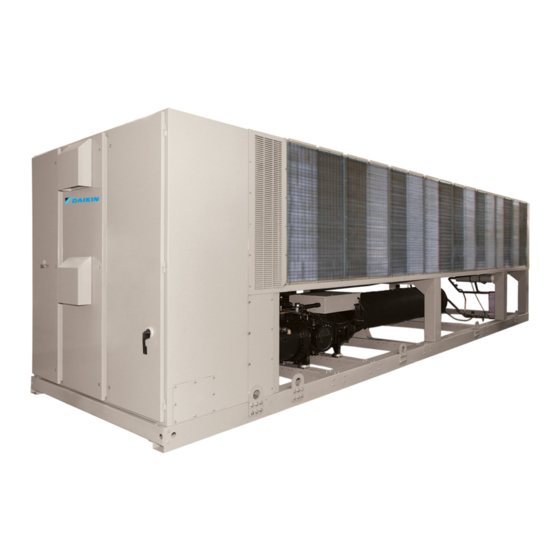

Daikin Pathfinder AWS190CDS Installation & Operating Manual

Air cooled chillers, standard, high, & premium efficiencies includes models with vfd
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
Pathfinder
Models AWS170-C to AWS550-C, Standard, High, & Premium Efficiencies
Includes models with VFD
170 to 550 tons • 600 to 1930 kW • R-134a • 60Hz
Software Version 263214200
© 2013 Daikin Applied
Installation & Operating Manual
Air Cooled Chillers
IOM 1202
Group: Chillers
Part Number: IOM1202
Date: July, 2013
