ETC MSC-NET Mk3 Installation Manual

ETC Installation Guide
Mosaic Network Switch Mk3
Overview
The Mosaic Network Switch Mk3 is a DIN rail-mounted five-port unman-
aged network switch that includes four Power over Ethernet (PoE) ports
and one standard Ethernet port for connection to the lighting network.
The MSC-NET Mk3 is designed to be permanently installed on a DIN
(rail/enclosure) in a central control room.

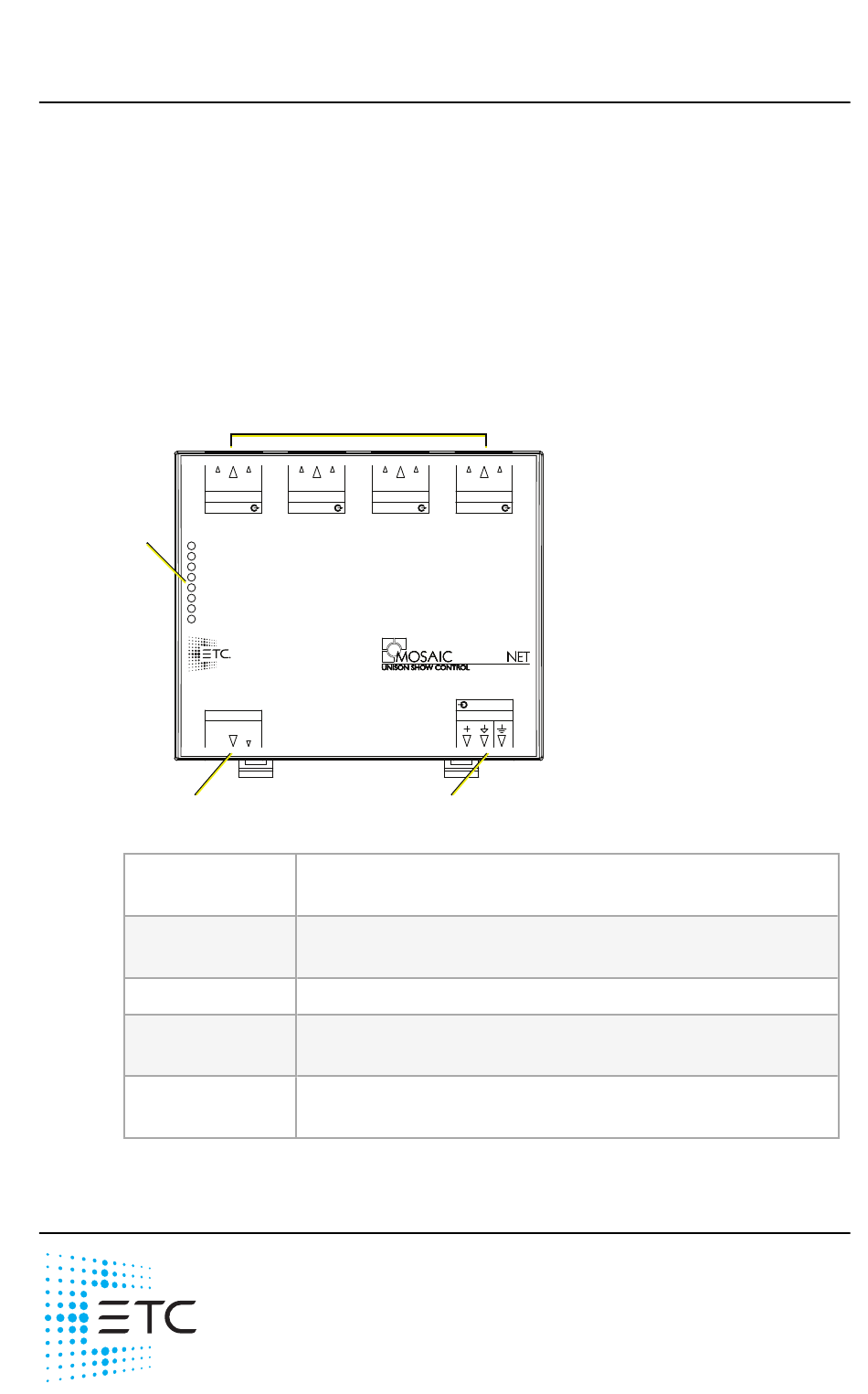

Layout
Status
Power
LEDs
Ethernet
Port 1
Port 2
Port 3
Port 4
PoE
Error
Ethernet
(Network)
24 VDC Power
Input
Ethernet
(Network)
Status LEDs
PoE Outputs
(x4)
Port Activity
LEDs (x4)
PoE Outputs and
Port Activity LEDs
Lnk PoE Lnk PoE
10/100TX 10/100TX
PORT 1 PORT 2
10W MAX 10W MAX
ETHERNET
10/100TX
Lnk
See Power Supply Specification on the next page
RJ45 10/100TX port for connection to the lighting
network (non-PoE)
Status LEDs on page 4
See
RJ45 10/100TX ports for power and communication
to PoE powered devices
Indicates Ethernet port activity. See
page 4
Corporate Headquarters n Middleton, WI, USA | +1 608 831 4116
Global Offices n London | Rome | Holzkirchen | Paris | Hong Kong | Dubai | Singapore
New York | Orlando | Los Angeles | Austin | © 2024 Electronic Theatre Controls, Inc.
Web etcconnect.com
Contact etcconnect.com/contactETC
Third-party license agreement
cifications subject to change. ETC intends this document to be provided in its entirety.
7180M2123 Rev A Released 2024-08
Lnk PoE Lnk PoE
10/100TX 10/100TX
PORT 3 PORT 4
10W MAX 10W MAX
45W MAX
24V DC
24 VDC
Power Input
