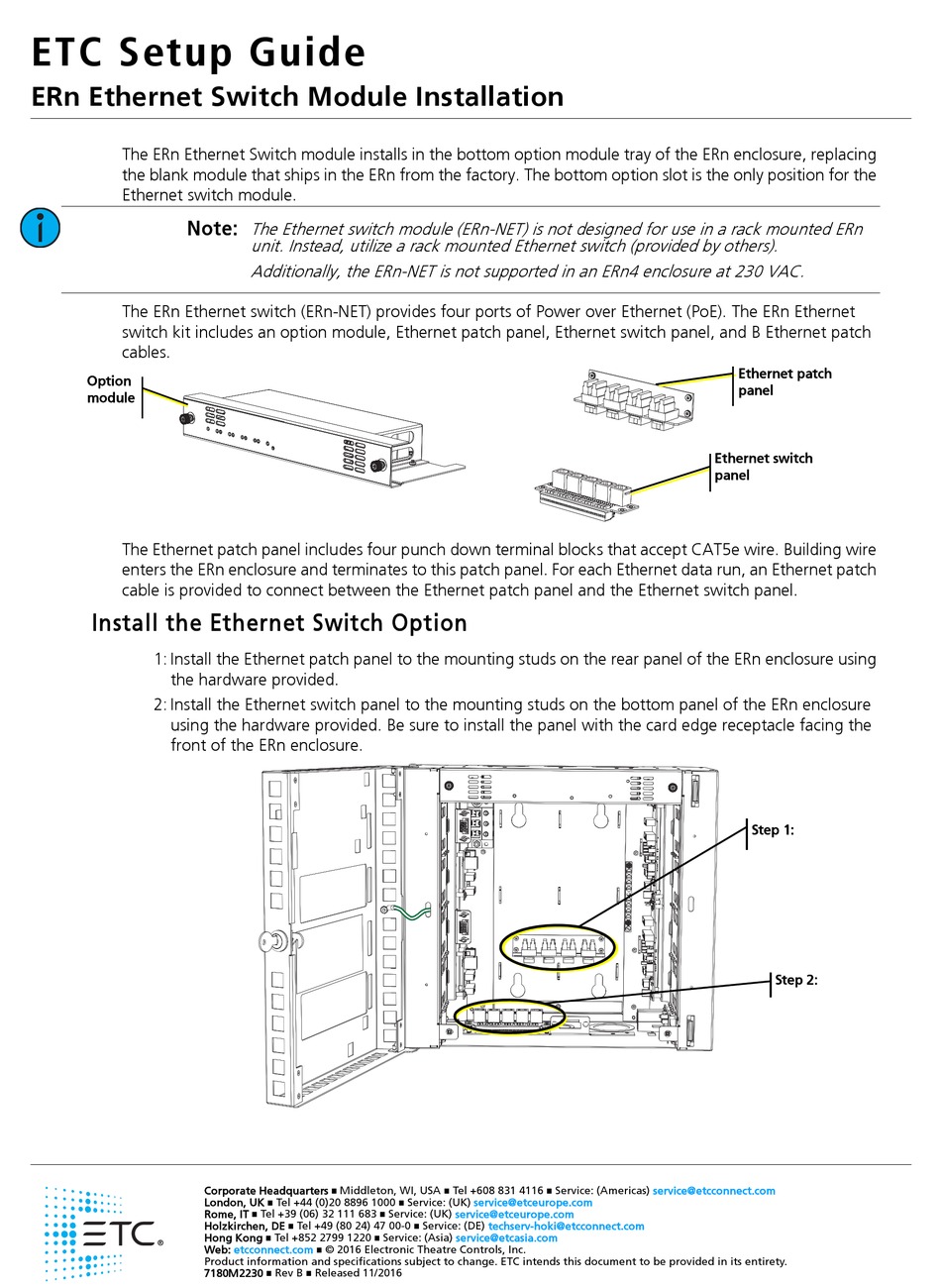

ETC Setup Guide
ERn Ethernet Switch Module Installation
The ERn Ethernet Switch module installs in the bottom option module tray of the ERn enclosure, replacing
the blank module that ships in the ERn from the factory. The bottom option slot is the only position for the
Ethernet switch module.
Note:
The ERn Ethernet switch (ERn-NET) provides four ports of Power over Ethernet (PoE). The ERn Ethernet
switch kit includes an option module, Ethernet patch panel, Ethernet switch panel, and B Ethernet patch
cables.
Option
module
The Ethernet patch panel includes four punch down terminal blocks that accept CAT5e wire. Building wire
enters the ERn enclosure and terminates to this patch panel. For each Ethernet data run, an Ethernet patch
cable is provided to connect between the Ethernet patch panel and the Ethernet switch panel.
Install the Ethernet Switch Option
1: Install the Ethernet patch panel to the mounting studs on the rear panel of the ERn enclosure using
the hardware provided.
2: Install the Ethernet switch panel to the mounting studs on the bottom panel of the ERn enclosure
using the hardware provided. Be sure to install the panel with the card edge receptacle facing the
front of the ERn enclosure.
Corporate Headquarters
London, UK
Rome, IT
Holzkirchen, DE
Hong Kong
Web:
Product information and specifications subject to change. ETC intends this document to be provided in its entirety.
7180M2230
The Ethernet switch module (ERn-NET) is not designed for use in a rack mounted ERn
unit. Instead, utilize a rack mounted Ethernet switch (provided by others).
Additionally, the ERn-NET is not supported in an ERn4 enclosure at 230 VAC.
Middleton, WI, USA
Tel +44 (0)20 8896 1000
Service: (UK)
Tel +39 (06) 32 111 683
Service: (UK)
Tel +49 (80 24) 47 00-0
Tel +852 2799 1220
Service: (Asia)
etcconnect.com
© 2016 Electronic Theatre Controls, Inc.
Rev B
Released 11/2016
Tel +608 831 4116
Service: (Americas)
service@etceurope.com
service@etceurope.com
Service: (DE)
techserv-hoki@etcconnect.com
service@etcasia.com
Ethernet patch
panel
Ethernet switch
panel
Step 1:
Step 2:
service@etcconnect.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ETC ERn-NET
Summary of Contents for ETC ERn-NET
- Page 1 Additionally, the ERn-NET is not supported in an ERn4 enclosure at 230 VAC. The ERn Ethernet switch (ERn-NET) provides four ports of Power over Ethernet (PoE). The ERn Ethernet switch kit includes an option module, Ethernet patch panel, Ethernet switch panel, and B Ethernet patch cables.
- Page 2 ETC Setup Guide ERn Ethernet Switch Module Connect CAT5e Wiring Note: All Ethernet terminations must follow IEEE 802.3 and be terminated to the T568B standard. 1: Pull your CAT5e building wire through the conduit access previously prepared. 2: Use a slotted screwdriver to remove the Ethernet punch down connector from the Ethernet patch panel and remove the connector covers from each side to reveal the connector terminals.
-
Page 3: Status Indicators
ETC Setup Guide ERn Ethernet Switch Module 7: Install the Ethernet switch option module into the enclosure and secure it in place using the captured screws provided. Status Indicators When power is applied to the ERn, the Paradigm Ethernet option module LEDs, located on the front panel, indicate main power, data, and PoE power status.
