ETC Echoflex MBI Installation Manual

Echoflex Installation Guide
Multi-Button Interface Switch Station
Overview
The Multi-Button Interface Switch Station (MBI) uses wireless technology
to communicate with compatible Echoflex controllers to manage lighting
and dimming commands. The MBI is available in different button con-

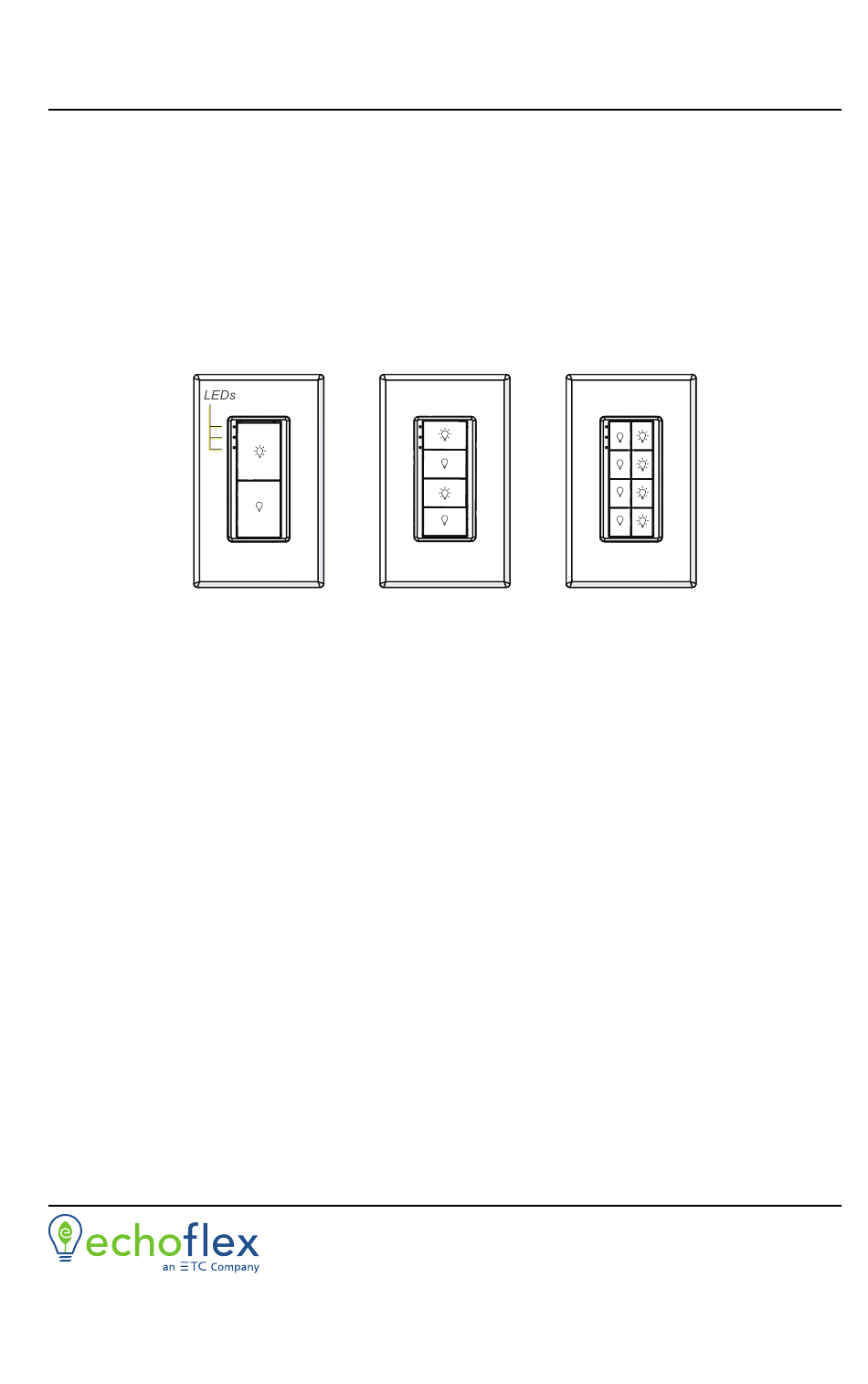

figurations, radio frequencies, and colors. Each pair of buttons can be
linked to different controllers to manage multiple circuits from one sta-
tion. Each button is labeled for its function and color LEDs indicate work-
ing status.
This document covers the installation process and basic setup for all MBI
models. The product package includes the station, faceplate, back sup-
port plate, and a battery.
Prepare for Installation
To ensure optimal function, consider the installation environment and the
following guidelines:
• For indoor use only. Operating temperature -10°C to 45°C
(14°F to 113°F), 5%–92% relative humidity (non-condensing).
• High-density construction materials and large metal appliances or
fixtures in the space may disrupt wireless transmissions.
• One CR2032 coin cell battery is provided with the MBI. Install the
battery or activate it if factory-installed by removing the protective
plastic tab in the battery housing. See
• Avoid mounting transmitters and receivers on the same wall.
Supplies required to install:
• Two #6 screws and wall anchors (not provided)
• Quick strip spacers (not provided)
