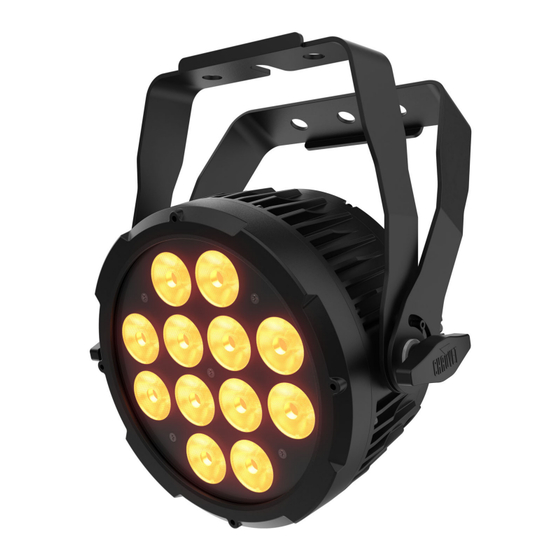

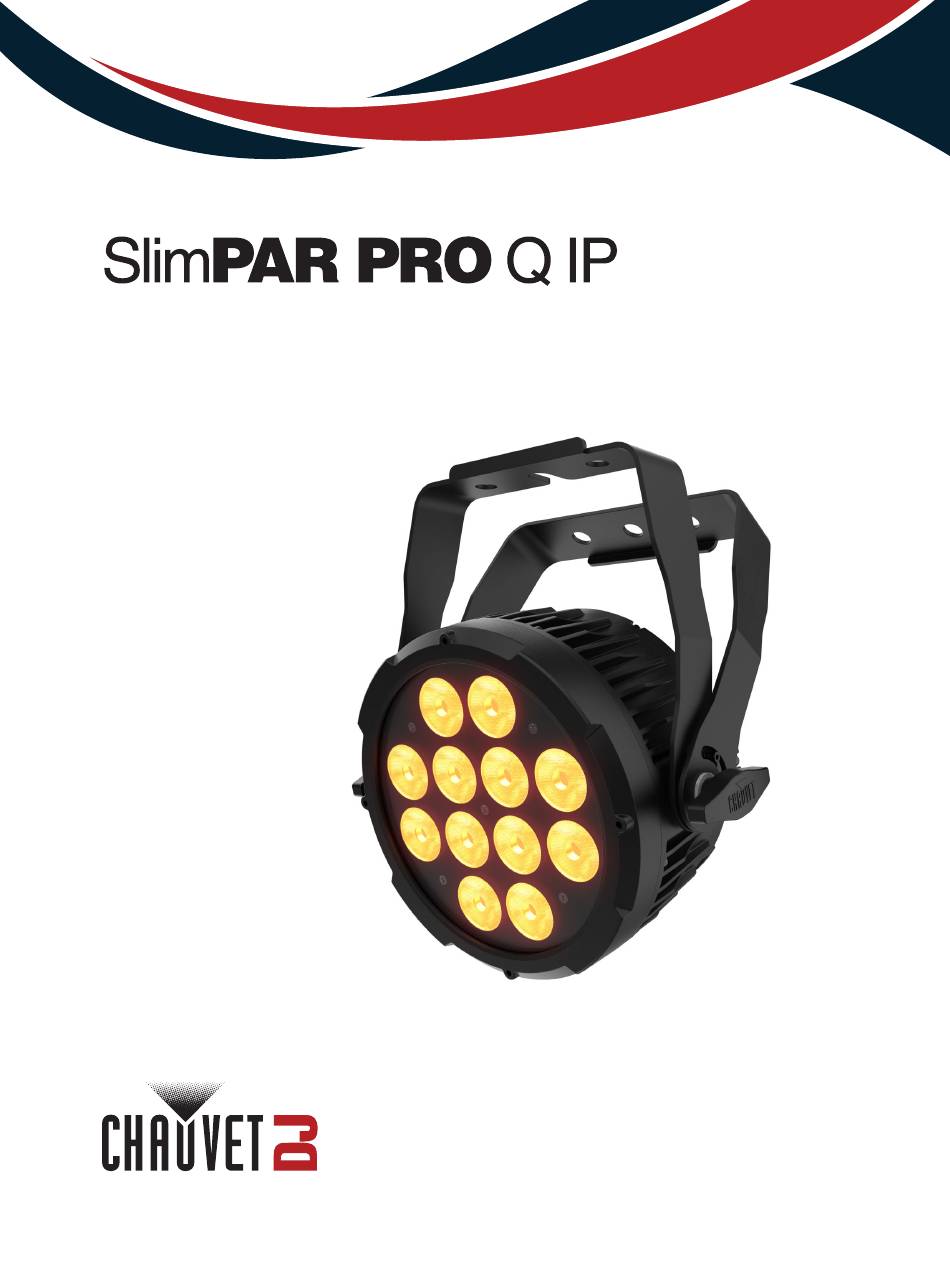

- Page 1 User Manual...
- Page 2 Edition Notes The SlimPAR Pro Q IP User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the SlimPAR Pro Q IP as of the release date of this edition. Trademarks Chauvet, Chauvet DJ, the Chauvet logo, and SlimPAR are registered trademarks or trademarks of Chauvet &...
-
Page 3: Table Of Contents
Custom Color Mixing...................... Screen Lock ........................Factory Reset......................... 10 Master/Slave Mode ..................5. Maintenance................Product Maintenance ..................Torque Measurements .................. Vacuum Test Measurements ................ 6. Technical Specifications ............Contact Us ..................Warranty & Returns..................SlimPAR Pro Q IP User Manual... -
Page 4: Before You Begin
Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. SlimPAR Pro Q IP User Manual Rev. 2... -
Page 5: Safety Notes
Set this product on a flammable surface. ♦ Use for space-heating purposes. Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. SlimPAR Pro Q IP User Manual Rev. 2... -
Page 6: Introduction
Introduction 2. Introduction Product Overview Name Name Display screen Safety cable pass-through Menu buttons Mounting brackets 3-pin DMX out 3-pin DMX in Power in/out Bracket adjustment knob (2x) SlimPAR Pro Q IP User Manual Rev. 2... -
Page 7: Product Dimensions
Introduction Product Dimensions 11.2 in 284 mm 10.3 in 263 mm 4.2 in 108 mm 4.3 in 118 mm SlimPAR Pro Q IP User Manual Rev. 2... -
Page 8: Setup
3. Setup AC Power The SlimPAR Pro Q IP has an auto-ranging power supply, and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the... -
Page 9: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The SlimPAR Pro Q IP may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming. -
Page 10: Operation
Press to scroll down the list of options or to find a lower value <ENTER> Press to activate a menu option or a selected value Menu Map Refer to the SlimPAR Pro Q IP product page on www.chauvetdj.com for the latest software and menu map. Mode... -
Page 11: Dmx Configuration
If the starting address is set too high, access to some channels could be restricted. For information about the DMX protocol, download the DMX Primer from www.chauvetdj.com. The SlimPAR Pro Q IP uses up to 10 DMX channels in a 10Ch DMX mode, which defines the highest configurable address to 503. -
Page 12: Standalone Configuration
Press <ENTER>. Preset Color Mode To run the SlimPAR Pro Q IP on a static color, follow the instructions below: Press <MENU> repeatedly until C-- shows on the display. Press <ENTER>. Use <UP> or <DOWN> to select a static color, from C 1–19. -
Page 13: Factory Reset
The Master/Slave mode allows a single SlimPAR Pro Q IP product (the “master”) to control the actions of one or more SlimPAR Pro Q IP products (the “slaves”) without the need of a DMX controller. The master product will be set to operate in Standalone, whereas the slave products will be set to operate in Slave mode. -
Page 14: Maintenance
Use the IP Tester from Chauvet Professional to ensure the product has been reassembled correctly by following the information below: Parameters Values Method Positive Test pressure 15 kPa Test duration 60 seconds PASS state leak pressure <0.073 kPa SlimPAR Pro Q IP User Manual Rev. 2... -
Page 15: Technical Specifications
104 °F (40 °C) Convection I/O Connector Channel Range 3-pin XLR 4, 5, or 10 Ordering Product Name Item Code UPC Number SlimPAR Pro Q IP 10031863 781462222116 UL 1573 CSA C22.2 No. 166 E113093 SlimPAR Pro Q IP User Manual Rev. 2... -
Page 16: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. SlimPAR Pro Q IP User Manual Rev. 2...
