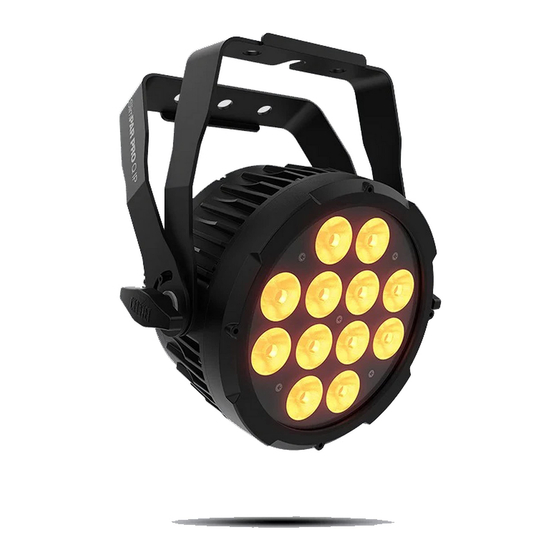

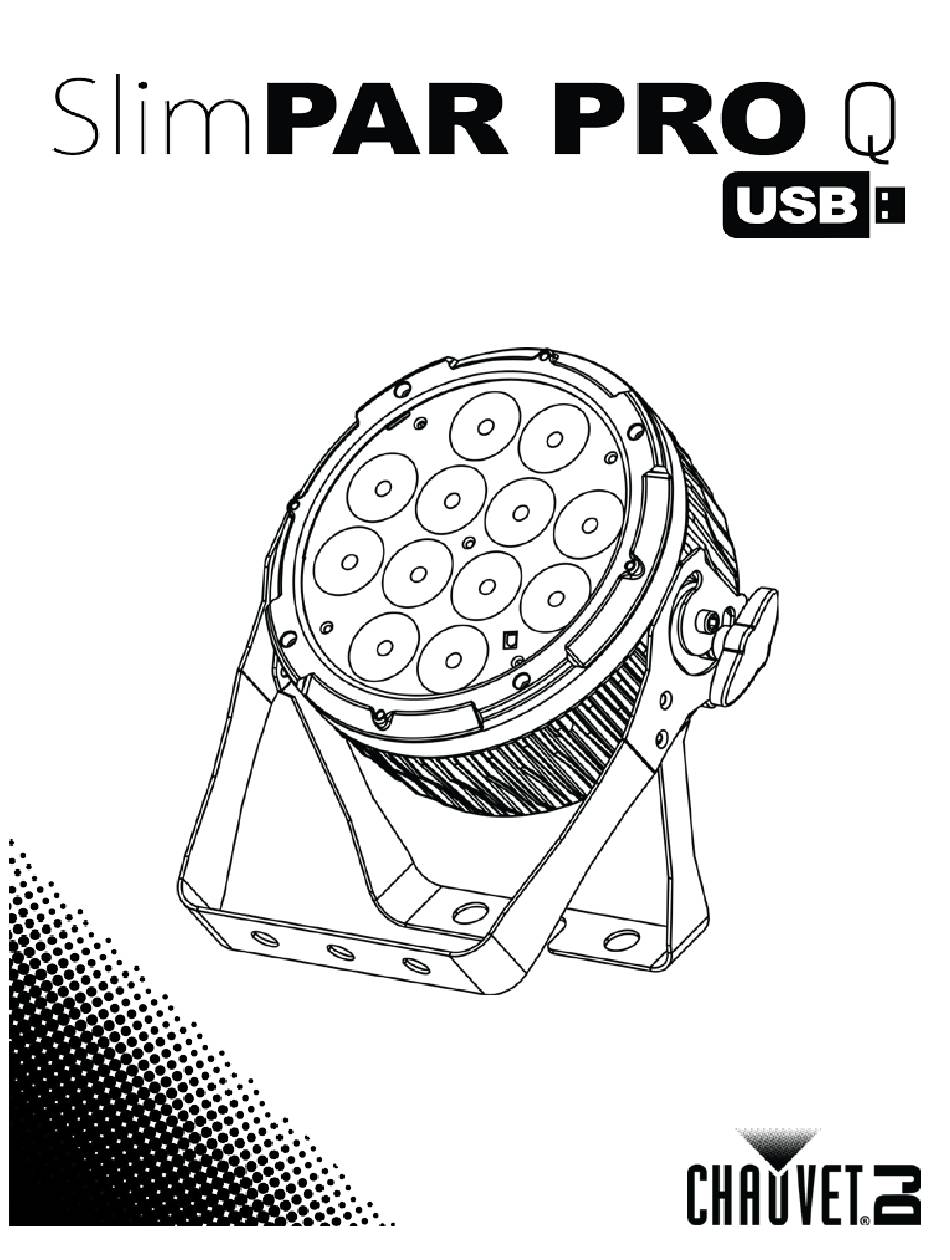

- Page 1 User Manual...
-
Page 2: Table Of Contents
IRC-6 Operation............................ 14 Master/Slave Mode (wired) ......................15 Master/Slave Mode (D-Fi USB) ....................15 5. Maintenance .........................16 Product Maintenance ........................16 6. Technical Specifications ....................17 Returns ..........................18 Contact Us .........................19 Page 2 of 19 SlimPAR Pro Q USB User Manual Rev. 2... -
Page 3: Before You Begin
© Copyright 2016 Chauvet & Sons, LLC. All rights reserved. Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, SlimPAR PRO Q USB, and D-Fi USB are registered trademarks or trademarks of Chauvet & Sons, LLC. (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. -
Page 4: Product At A Glance
Keep this User Manual for future use. If you sell the product to someone else, be sure that they also receive this document. Page 4 of 19 SlimPAR Pro Q USB User Manual Rev. 2... -
Page 5: Introduction
Back Panel View Lenses IR Sensor Front View WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product. SlimPAR Pro Q USB User Manual Rev. 2 Page 5 of 19... -
Page 6: Product Dimensions
Product Dimensions 10 in 253 mm 11.4 in 290 mm 3.9 in 98 mm Page 6 of 19 SlimPAR Pro Q USB User Manual Rev. 2... -
Page 7: Setup
Additional Products You can power link up to 7 SlimPAR PRO Q USB products on 120 VAC or up to 13 SlimPAR PRO Q USB products on 230 VAC. The power linking diagram corresponds to the North American version of the... -
Page 8: Mounting
Bracket Adjustment Knob x 2 The SlimPAR PRO Q USB comes with a gel frame and a gel frame holder, which can be Gel Frame attached with the included screws. The gel frame holder can easily fit 7.5 inch barn Holder doors, such as the Ovation 7.5”... -
Page 9: Operation
Custom static colors Combine red, green, blue, and amber b000–255 (blue) A000–255 (amber) dIM1 Dimmer speed mode, fast to slow, or off dIM2 dIM3 IR function on or off SlimPAR Pro Q USB User Manual Rev. 2 Page 9 of 19... -
Page 10: Dmx Linking
DMX Linking The SlimPAR PRO Q USB works with a DMX controller. Information about DMX is in the CHAUVET Primer, which available from Chauvet website Set the product in DMX mode to control with a DMX controller. Configuration Connect the product to a suitable power outlet. -
Page 11: Dmx Personality And Starting Address
Address The SlimPAR PRO Q USB uses up to 10 DMX channels in a 10CH DMX mode, which defines the highest configurable address to 503. If you are not familiar with the DMX protocol, download the DMX Primer from To select the starting address, do the following: Press <MENU>... -
Page 12: 5-Ch
000 ó 255 0–100% Amber Channel Function Value Percent/Setting 4-CH 000 ó 255 0–100% 000 ó 255 0–100% Green 000 ó 255 0–100% Blue 000 ó 255 0–100% Amber Page 12 of 19 SlimPAR Pro Q USB User Manual Rev. 2... -
Page 13: Configuration (Standalone)
Use <UP> and <DOWN> to increase or decrease the sound sensitivity (u--0–100). Press <ENTER>. The product will return to the last selected mode. To run the SlimPAR PRO Q USB in preset color mode, follow the instructions below: Preset Color Press <MENU>... -
Page 14: Irc-6 Infrared Remote Control
IRC-6 Infrared The SlimPAR PRO Q USB is compatible with the IRC-6 infrared remote control from Chauvet. To activate IR mode, follow the instructions below: Remote Press <MENU> repeatedly until SEr shows on the display. Control Press <ENTER> to accept. -
Page 15: Master/Slave Mode (Wired)
Do not connect more than 31 slaves to the master. Master/Slave The D-Fi USB allows a single SlimPAR PRO Q USB product (the “master”) to control the actions of one or more SlimPAR PRO Q USB products (the “slaves”) without the need of Mode a DMX controller or DMX cables. -
Page 16: Maintenance
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Page 16 of 19 SlimPAR Pro Q USB User Manual Rev. 2... -
Page 17: Technical Specifications
104 °F (40 °C) Convection I/O Connectors Channel Range 3-pin XLR 4, 5 or 10 Product Name Item Code UPC Number Ordering SlimPAR PRO Q USB 03031131 78146221479 SlimPAR Pro Q USB User Manual Rev. 2 Page 17 of 19... -
Page 18: Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Page 18 of 19 SlimPAR Pro Q USB User Manual Rev. 2... -
Page 19: Contact Us
SlimPAR Pro Q USB User Manual Rev. 2 Page 19 of 19...
