Installation Continued
3 3

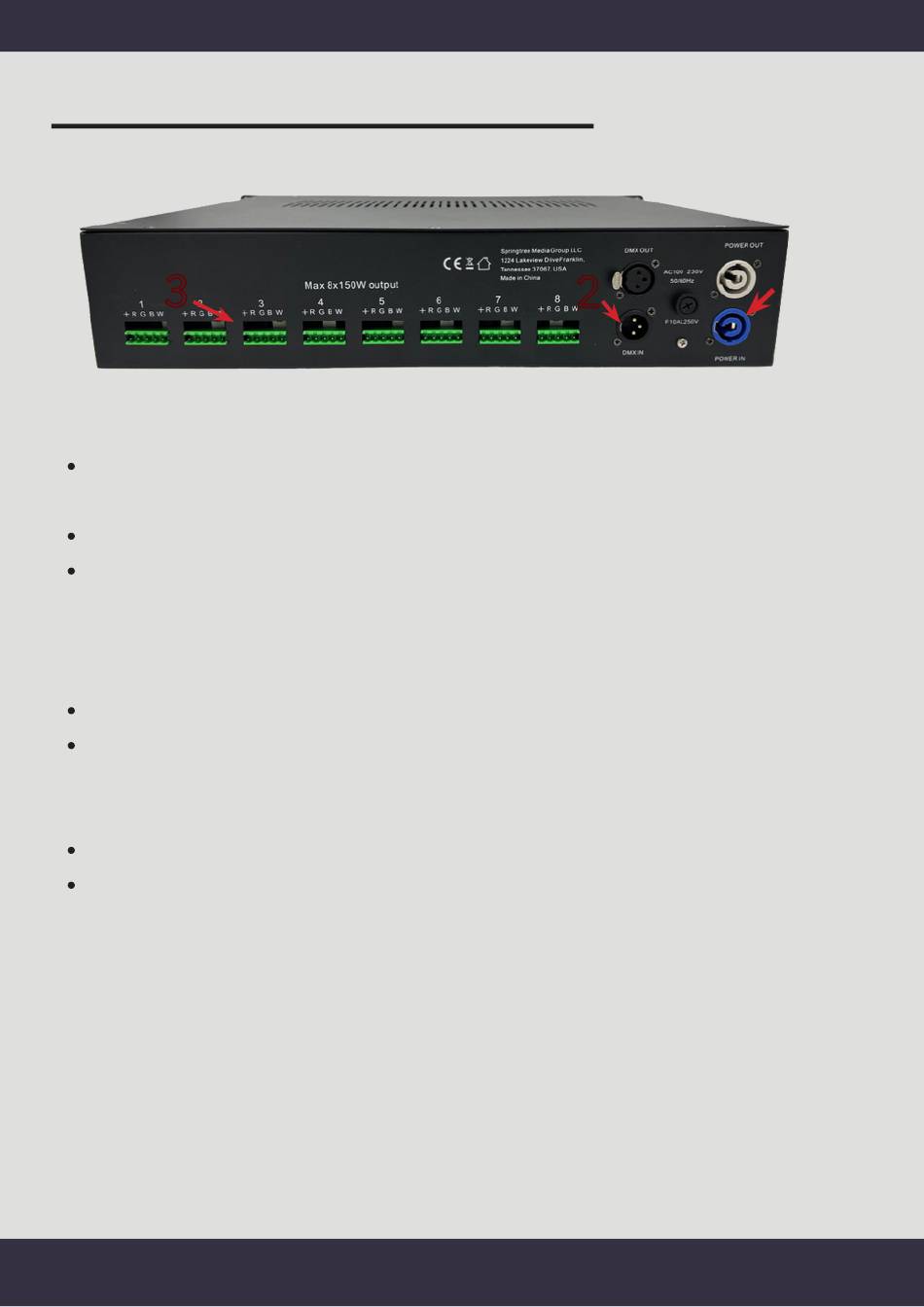

1. Electrical Connection:
Use the linking power connector located on the rear of the DMX1202X for
electrical connection.
A linking power output is provided for daisy-chaining to other equipment.
Note: Only one DMX1202X can be powered on a single 20amp circuit at
maximum load. Two units could be used if neither operates at max load.
The maximum recommended load per 20amp circuit is 1800 watts.
2. DMX Connection:
Connect DMX via the 3-pin XLR connection located on the rear.
DMX input originates from your lighting console and can be daisy-chained
to additional DMX1202X units or lighting fixtures.
3. Connection to Lo-Vo Lights:
Utilize the Phoenix connector for connecting to Lo-Vo lights.
Refer to the next page for detailed instructions on wiring each type of
fixture.
DMX1202X
2 2
1
