Bauer 23703E-B Owner's Manual & Safety Instructions

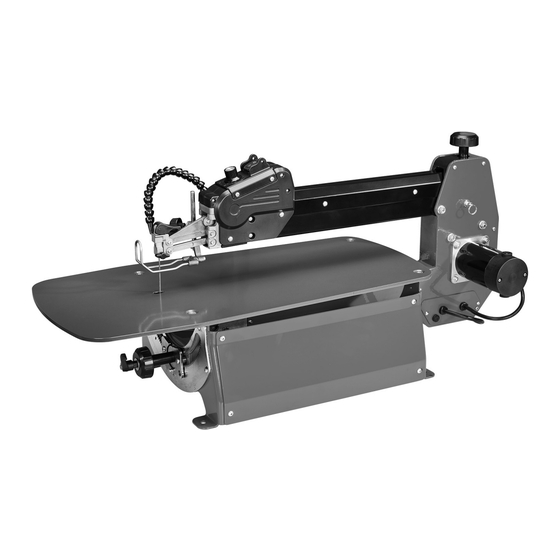

22" variable-speed scroll saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
22"
VARIABLE-SPEED
SCROLL SAW
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2023 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
23703E-B
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
24b
59416

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 23703E-B and is the answer not in the manual?

Questions and answers

Related Manuals for Bauer 23703E-B

Summary of Contents for Bauer 23703E-B

  • Page 1 Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference. 23703E-B 22" VARIABLE-SPEED SCROLL SAW Visit our website at: http://www.harborfreight.com...

  • Page 2: Important Safety Information

    table of contents Safety ............2 Maintenance ..........10 Specifications ..........6 Parts List and Diagram ......14 Setup ............6 Warranty ............ 16 Operation ............ 8 WarninG SyMBOLS anD DeFinitiOnS This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
  • Page 3 13. DON’T OVERREACH. table a: recOMMenDeD MiniMuM Wire GauGe Keep proper footing and balance at all times. FOr eXtenSiOn cOrDS (120 VOLt) 14. MAINTAIN TOOLS WITH CARE. Keep eXtenSiOn cOrD tools sharp and clean for best and safest naMepLate performance. Follow instructions for LenGtH aMpereS lubricating and changing accessories.

  • Page 4: Scroll Saw Safety Warnings

    Grounding instructions tO preVent eLectric SHOcK anD DeatH FrOM incOrrect GrOunDinG Wire cOnnectiOn reaD anD FOLLOW tHeSe inStructiOnS: 110-120 Vac Grounded tools: tools with three prong plugs 1. In the event of a malfunction or breakdown, 6. Repair or replace damaged or grounding provides a path of least resistance for worn cord immediately.

  • Page 5: Vibration Safety

    10. People with pacemakers should consult their 11. The warnings, precautions, and instructions physician(s) before use. Electromagnetic fields in discussed in this instruction manual cannot cover all close proximity to heart pacemaker could cause possible conditions and situations that may occur. pacemaker interference or pacemaker failure.
  • Page 6 Specifications Electrical Rating 120VAC / 60Hz / 1.3A S1, 1.6A S2 30min Arm Tilt 45° Right and 30° Left Max Cutting Thickness 2" Blade Type 5" L Pinless Blade Throat Depth 22" Blade Stroke 3/4" Cutting Speed 360 to 1600/min Base Mounting Holes 4x Ø10mm (3/8") holes 4x Adjustable Foot, Ø30 x 11mm with M8 Bolts and Nuts...
  • Page 7 align Bevel Scale indicator note: The Bevel Scale Indicator has been adjusted at the factory but should be checked before using the Saw. Guard Height adjustment 1. Loosen the Guard Height Adjustment knob and move the Blade Guard all the way up. Blade Guard 2.

  • Page 8: Arm Angle Adjustment

    Operating instructions read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product. tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn: turn the power Switch of the tool off and unplug the tool from its electrical outlet before performing any procedure in this section.

  • Page 9: Inside Cuts

    4. Using both hands, carefully guide the workpiece into 5. When cutting is complete, move workpiece beyond the Blade. Press down on the workpiece and slowly the Blade Guard foot and turn Power Switch OFF. guide it through the Saw Blade. Do not force the Unplug the Saw from its electrical outlet after use.

  • Page 10: Cleaning And Maintenance

    Maintenance and Servicing procedures not specifically explained in this manual must be performed only by a qualified technician. tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn: turn the power Switch of the tool off and unplug the tool from its electrical outlet before performing any procedure in this section.

  • Page 11: Removing And Installing Blades

    removing and installing Blades WarninG! tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn: turn the power Switch of the tool off and unplug the tool from its electrical outlet before making any adjustments to the Blade. note: Replacement blades sold separately. note: A properly tensioned Blade will make a high-C sound (C6, 1047 Hz) when plucked with a 1.

  • Page 12: Troubleshooting

    troubleshooting problem possible causes Likely Solutions Blades breaking 1. Wrong blade tension. 1. Adjust blade tension. 2. Over-working blade. 2. Reduce feed cut rate. 3. Wrong blade application. 3. Use narrow blades for cutting thin wood, wide blades for cutting thicker wood. 4.

  • Page 13: Please Read The Following Carefully

    pLeaSe reaD tHe FOLLOWinG careFuLLy THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.

  • Page 14: Parts List

    parts List and Diagram parts List part Description part Description part Description Housing Guard Board Hex Socket Screw, M6 x 8 Lower Support Lower Adaptor Spring Column Pin, 3 x 18 Lower Support Upper Supporting Tube Big Washer, D4 Direction Plate Upper Supporting Pad Big Washer, D8 Lower Support...

  • Page 15: Assembly Diagram

    assembly Diagram 59416 For technical questions, please call 1-888-866-5797. Page 15...
  • Page 16 Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
