Owner's Manual & Safety Instructions

Save This Manual

operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the

back of the manual near the assembly diagram (or month and year of purchase if product has no number).

Keep this manual and the receipt in a safe and dry place for future reference.

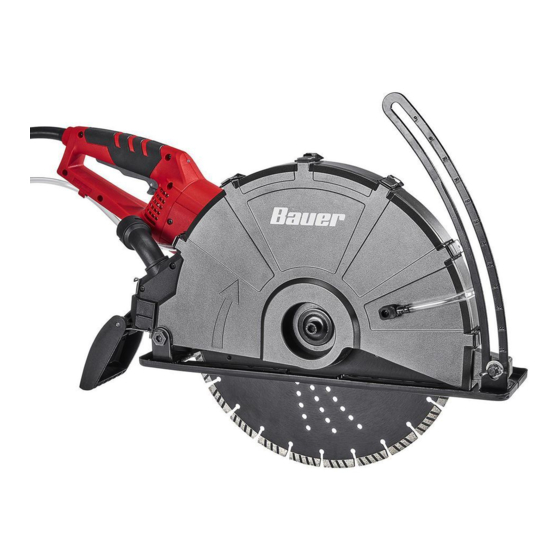

Wheel Sold

Separately

Email our technical support at: productsupport@harborfreight.com

When unpacking, make sure that the product is intact

and undamaged. If any parts are missing or broken,

please call 1-888-866-5797 as soon as possible.

2020 by Harbor Freight Tools

No portion of this manual or any artwork contained herein may be reproduced in

any shape or form without the express written consent of Harbor Freight Tools.

Diagrams within this manual may not be drawn proportionally. Due to continuing

improvements, actual product may differ slightly from the product described herein.

Tools required for assembly and service may not be included.

Keep this manual for the safety warnings and precautions, assembly,

Visit our website at: http://www.harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

21j

Table of Contents

Need help?

Do you have a question about the 21713E-B and is the answer not in the manual?

Questions and answers

Summary of Contents for Bauer 21713E-B

Page 1 Owner’s Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.
Page 2: Table Of Contents
Table of Contents Safety ............2 Maintenance ..........15 Specifications ..........10 Parts List and Diagram ......18 Setup ............10 Warranty ............ 20 Operation ........... 11 WARNING SYMBOLS AND DEFINITIONS This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Page 3: Safety
3. Do not expose power tools to rain or wet 5. When operating a power tool outdoors, conditions. use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor will increase the risk of electric shock. use reduces the risk of electric shock.
Page 4 Service Have your power tool serviced by a qualified repair person using only identical replacement parts. Cut-Off Machine Safety Warnings 1. The guard provided with the tool must be securely 10. Wear personal protective equipment. Depending attached to the power tool and positioned on application, use face shield, safety goggles for maximum safety, so the least amount or safety glasses.
Page 5 20. Do not lay the tool down until it has come to 28. People with pacemakers should consult their a complete stop. Moving parts can grab the physician(s) before use. Electromagnetic fields surface and pull the tool out of your control. in close proximity to heart pacemaker could cause pacemaker interference or pacemaker failure.
Page 6 Kickback and Related Warnings Kickback is a sudden reaction to a pinched or snagged rotating wheel. Pinching or snagging causes rapid stalling of the rotating wheel which in turn causes the uncontrolled power tool to be forced in the direction opposite of the wheel's rotation at the point of the binding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out.
Page 7 Grounding TO PREVENT ELECTRIC SHOCK AND DEATH FROM INCORRECT GROUNDING WIRE CONNECTION: Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. Do not modify the power cord plug provided with the tool. Never remove the grounding prong from the plug.
Page 8 Extension Cords Note: Extensions cords must not be used with this tool. Service Precautions Ground Fault Circuit Interrupter Protection This tool is provided with a ground-fault circuit-interrupter (GFCI) built into the plug of the power-supply cord. This device provides additional protection from the risk of electric shock. Should replacement of the plug or cord become necessary, use only identical replacement parts that include GFCI protection.
Page 9: Specifications
Symbology Read the manual before Double Insulated set-up and/or use. Volts WARNING marking concerning Risk of Hearing Loss. Wear hearing protection. Alternating Current WARNING marking concerning Risk of Fire. Amperes Do not cover ventilation ducts. Keep flammable objects away. WARNING marking concerning n 0 xxxx/min.
Page 10: Setup
Setup - Before Use: Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Note: For additional information regarding the parts listed in the following pages, refer to Parts List and Diagram on page 18.
Page 11: Operation
Operating Instructions Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Tool Set Up TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Release the Trigger and unplug the tool from its electrical outlet before performing any procedure in this section.
Page 12 Installing Splash Guard 1. Press Splash Guard onto Splash Guard Bar, below the Dust Port, until it snaps in place. 2. When not in use, flip Splash Guard up. 3. To remove, tilt the Splash Guard upward until it releases from Splash Guard Bar. Splash Guard Installing Guide Wheels...
Page 13 For Wet Sawing - Connecting Water System TO PREVENT SERIOUS INJURY AND ELECTRIC SHOCK: Do not allow water to enter the motor. Check all water connections for leaks. If leaks are Water found, do not use Saw for wet sawing until leaks Connector 1 are fixed.
Page 14 General Operating Instructions TO PREVENT ELECTRIC SHOCK AND DEATH: Test Ground Fault Circuit Interrupter (GFCI) before each use. The GFCI does not protect against electrical shock due to contact with both circuit conductors or a fault in any wiring supplying in this device. Do not alter or disable the GFCI. Do not use an extension cord. TO PREVENT SERIOUS INJURY FROM KICKBACK: Do not attempt to make an excessive depth of cut.
Page 15: Maintenance
Maintenance and Servicing Procedures not specifically explained in this manual must be performed only by a qualified technician. TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Release the Trigger and unplug the tool from its electrical outlet before performing any inspection, maintenance, or cleaning procedures. TO PREVENT SERIOUS INJURY FROM TOOL FAILURE: Do not use damaged equipment.
Page 16 Troubleshooting Problem Possible Causes Likely Solutions Tool will not start. 1. Cord not connected. 1. Check that cord is plugged in. 2. No power at outlet. 2. Check power at outlet. If outlet is unpowered, turn off tool and check circuit breaker. If breaker is tripped, make sure circuit is right capacity for tool and circuit has no other loads.
Page 17 PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
Page 18: Parts List And Diagram
Parts List and Diagram Parts List Part Description Part Description Bolt, M4 x10 Auxiliary Handle Screw, M10 x 20 Water Connector 1 Auxiliary Handle Support Wheel Guard Gear Box Bolt, M10 x 20 Middle Cover Small Flange Wind Ring Outer Flange Small Gear Washer Ring, 35 x 1.5...
Page 19 Assembly Diagram Item 58215 For technical questions, please call 1-888-866-5797. Page 19...
Page 20: Warranty
Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
