Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the back
of the manual (or month and year of purchase if product has no number). Keep this manual and the receipt
in a safe and dry place for future reference.
For Best Results,
Use 3.0 Amp Hour Battery
or Greater.
(Sold Separately)
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2022 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Saw Blade sold separately
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
22g
Advertisement
Related Manuals for Bauer 2072C-B
Summary of Contents for Bauer 2072C-B

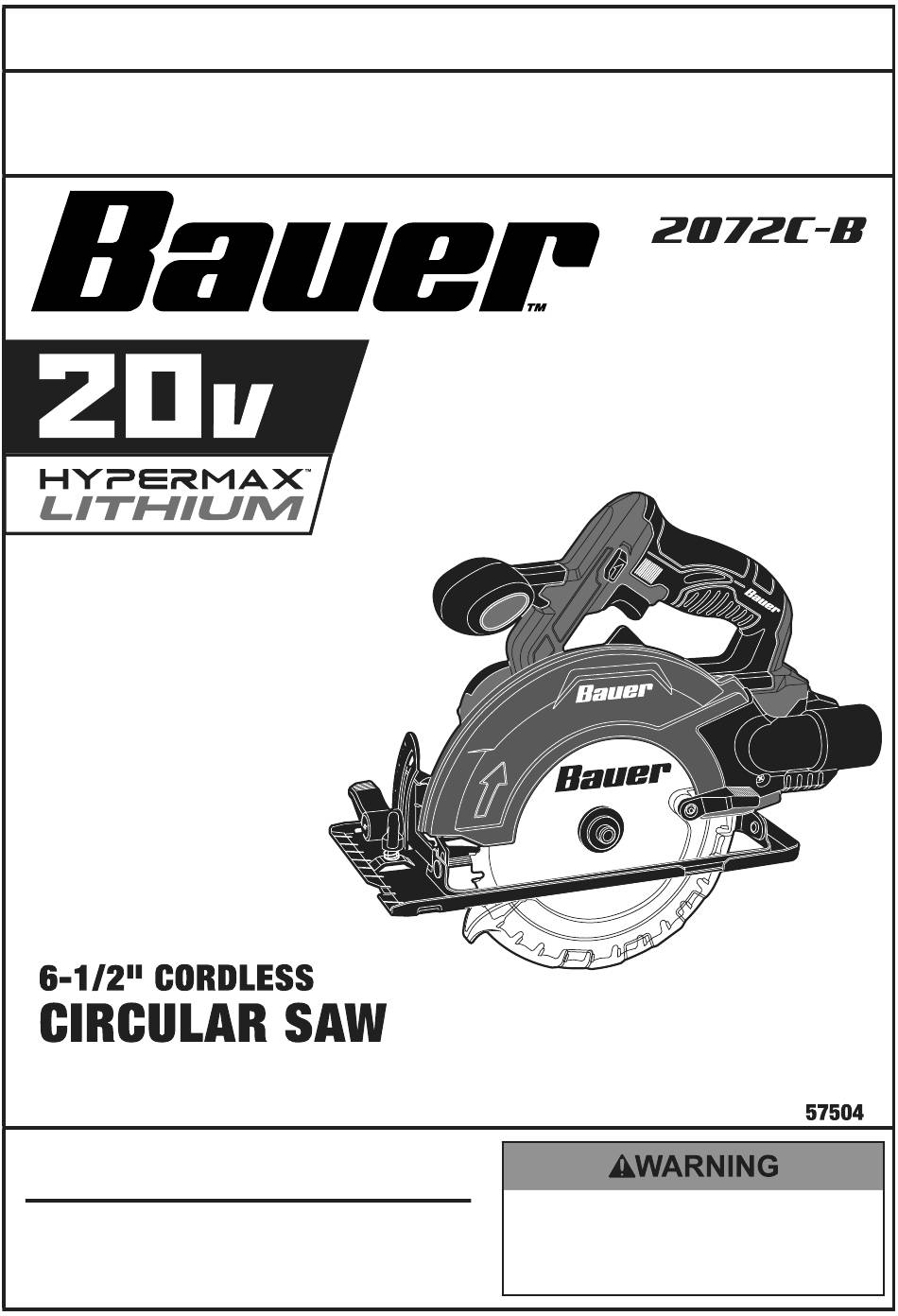

- Page 1 Owner’s Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.
-
Page 2: Table Of Contents
table of contents Safety ............2 Operation ........... 10 Specifications ..........8 Maintenance ..........12 Setup ............9 Warranty ............ 15 WARninG SyMBOLS AnD DEFinitiOnS This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. -
Page 3: Safety
2. Electrical safety j. Do not lay the tool down until it has come to a complete stop. Moving parts can grab the Do not expose power tools to rain or wet surface and pull the tool out of your control. conditions. - Page 4 g. Use the power tool, accessories and tool bits f. When ripping, always use a rip fence etc. in accordance with these instructions, or straight edge guide. This improves taking into account the working conditions the accuracy of cut and reduces and the work to be performed.
- Page 5 10. Support large panels to minimise the risk of b. Adjust the riving knife as described in blade pinching and kickback. Large panels tend this instruction manual. Incorrect spacing, to sag under their own weight. Supports must positioning and alignment can make the riving be placed under the panel on both sides, near knife ineffective in preventing kickback.
- Page 6 i. Follow all charging instructions and do 15. Vibration Safety not charge the battery pack or power tool This tool vibrates during use. outside of the temperature range specified Repeated or long-term exposure to vibration may in the instructions. Charging improperly or at cause temporary or permanent physical injury, temperatures outside of the specified range may particularly to the hands, arms and shoulders.
- Page 7 Grounding tO pREVEnt ELEctRic SHOcK AnD DEAtH FROM incORREct GROUnDinG: check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. Do not modify the power cord plug provided with the charger. Do not use the charger if the power cord or plug is damaged.
-
Page 8: Specifications
Specifications Bauer 20 V Li-ion 57007 Battery (sold separately) Bauer 20 V Li-ion 57006 Charger (sold separately) No Load Speed n 0 : 4000/min Maximum Blade Diameter 6-1/2″ (165mm) Arbor 5/8″ round For technical questions, please call 1-888-866-5797. Page 8... -
Page 9: Setup
Setup - Before Use: Read the EntiRE iMpORtAnt SAFEty inFORMAtiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Functions trigger Lock Auxiliary Handle trigger Main Handle Upper Vacuum Guard port... -
Page 10: Operation
Operating instructions Read the EntiRE iMpORtAnt SAFEty inFORMAtiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product. tool Set Up tO pREVEnt SERiOUS inJURy FROM AcciDEntAL OpERAtiOn: Make sure that the trigger is in the off-position and remove its Battery pack before performing any procedure in this section. - Page 11 Attaching Vacuum port Vacuum port Attach Vacuum Port to Upper Guard using Bolt. Tighten Bolt securely. Upper Guard Bolt Workpiece and Work Area Set Up 1. Workpiece selection: 2. Designate a work area that is clean and well lit. The work area must not allow access by children a.
-
Page 12: Maintenance
Maintenance and Servicing procedures not specifically explained in this manual must be performed only by a qualified technician. tO pREVEnt SERiOUS inJURy FROM AcciDEntAL OpERAtiOn: Make sure that the trigger is in the off-position and remove its Battery pack before performing any procedure in this section. tO pREVEnt SERiOUS inJURy FROM tOOL FAiLURE: Do not use damaged equipment. - Page 13 troubleshooting problem possible causes Likely Solutions Tool will not start. 1. Battery Pack not properly 1. Remove Battery Pack, make sure there are no connected. obstructions, reinsert the Battery Pack according to its shape (it should only fit one way), and press firmly until the Battery Pack locks in place.
- Page 14 Record product’s Serial number Here: note: if product has no serial number, record month and year of purchase instead. note: Some parts are not available individually as replacement parts. Specify UPC 193175468956 when ordering parts. For technical questions, please call 1-888-866-5797. Page 14 Item 57504...
-
Page 15: Warranty
Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance. - Page 16 26677 Agoura Road • calabasas, cA 91302 • 1-888-866-5797...
