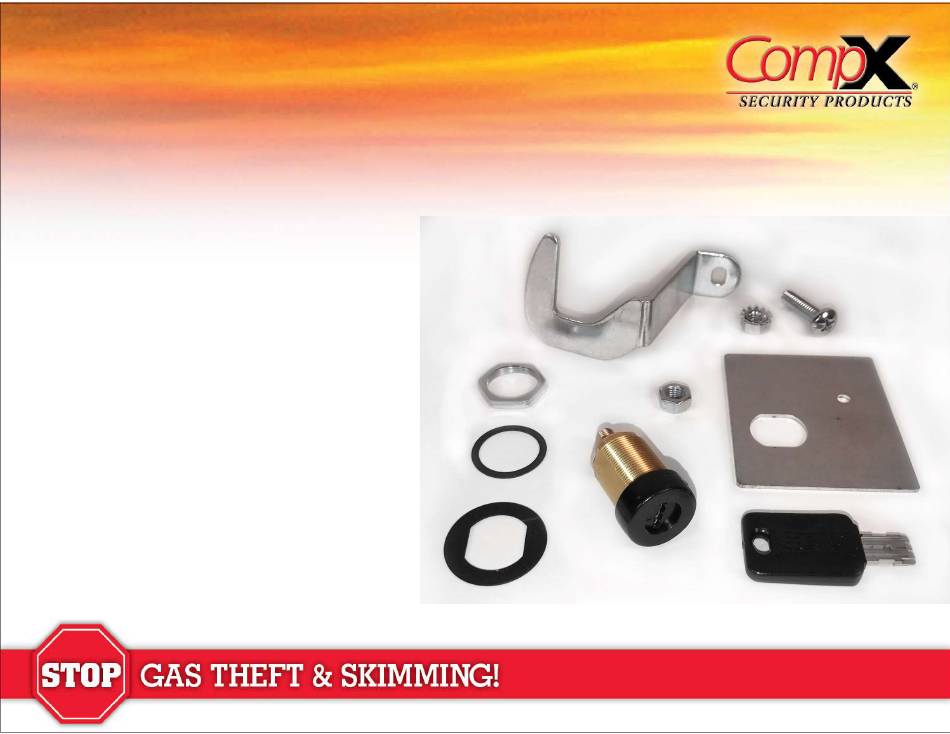

TuBAR
®
Retrofit: Ovation CAT Door
Part # DWC-O
1. Use Drill Template (F) to drill Ø3/16" pilot
hole in Panel by placing template along
inside edge at desired height (Fig 1).
2. Drill Ø3/4" hole through pilot hole (Fig 2).
3. Install Lock (C) through Washer (G), Gasket
(E) and Ø3/4" Panel hole (Figs 2 & 3).
Assemble Mounting Plate (F) and secure
with Cylinder Nut (D) (Fig 4).
4. Install Cam (A) to Lock Assembly and
secure with Thread Locking Cam Nut (B)
(Fig 5). (Nut requires additional force to
install)
5. Drill Ø1/4" hole in frame and insert Screw
(H) and Secure with Hex Nut (I) (Figs 6 & 7).
/Turbine
A
B
D
E
C
G
I
H
J
Rev L
F
3
