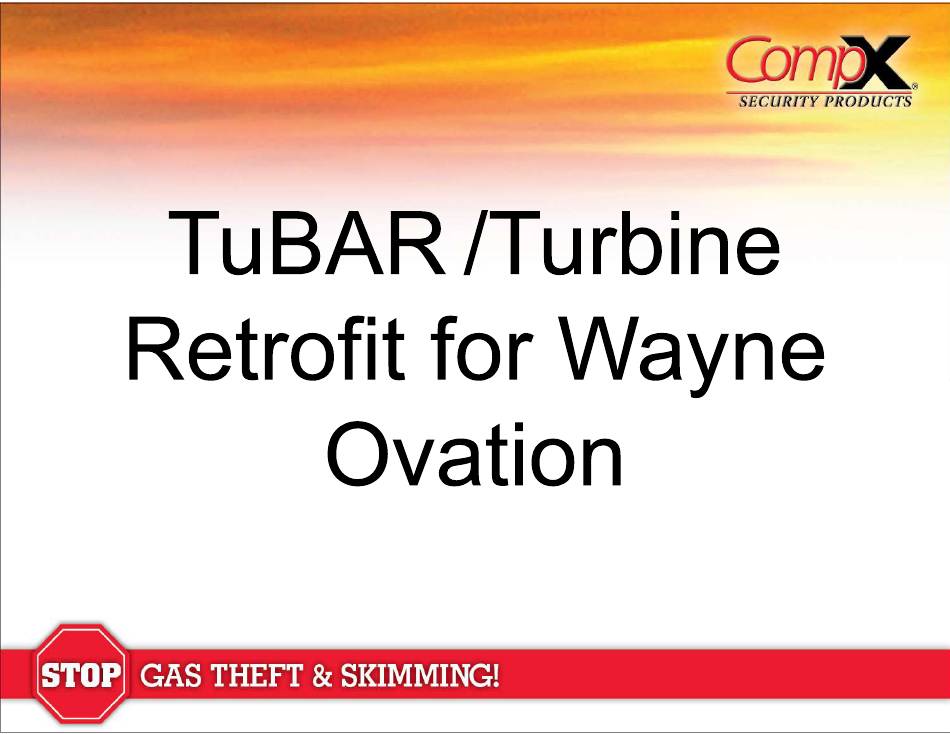

- Page 1 ® Copyright © 2009 CompX Security Products. Any companies and/or products referred to herein are marks or registered trademarks of their respective companies owners and/or mark holders. Rev L...
- Page 2 TuBAR /Turbine ® Retrofit: Ovation CAT Door Part # DWC-O A. Ovation ARC Cam B. Thread Locking Cam Nut C.Lock Assy (TuBAR Shown) D.Cylinder Nut E. Gasket F. Drill & Mounting Template G.Flat Washer H.Screw #1/4-20 x 1” I. Hex Keps Nut #1/4-20 J.
- Page 3 TuBAR /Turbine ® Retrofit: Ovation CAT Door Part # DWC-O 1. Use Drill Template (F) to drill Ø3/16” pilot hole in Panel by placing template along inside edge at desired height (Fig 1). 2. Drill Ø3/4” hole through pilot hole (Fig 2). 3.
- Page 4 TuBAR /Turbine ® Retrofit: Ovation CAT Door Part # DWC-O Place template along inside edge as shown and drill Ø3/16” pilot hole. Lock location may interfere with a “call Figure 1 button” decal found on some Ovation doors, adjust lock position accordingly. Rev L...
- Page 5 TuBAR /Turbine ® Retrofit: Ovation CAT Door Part # DWC-O Drill Ø3/4” hole through pilot hole. Figure 2 Rev L...
- Page 6 TuBAR /Turbine ® Retrofit: Ovation CAT Door Part # DWC-O Install Lock Assembly (C) thru Washer (G), Gasket (E) and Ø3/4” Panel hole. Figure 3 Rev L...
- Page 7 TuBAR /Turbine ® Retrofit: Ovation CAT Door Part # DWC-O Assemble Mounting Plate (F) and secure with Cylinder Nut (D). Figure 4 Rev L...
- Page 8 TuBAR /Turbine ® Retrofit: Ovation CAT Door Part # DWC-O Assemble Cam (A) to Lock Assembly (C) and secure with Thread Locking Cam Nut (B). Thread Locking Cam Nut requires additional force to install. Figure 5 Rev L...
- Page 9 TuBAR /Turbine ® Retrofit: Ovation CAT Door Part # DWC-O Drill Ø1/4” hole in frame in approximate location shown. Insert Screw (H) into hole and secure with Hex Nut (I) from inside frame. ⅞” 15” Figure 6 Figure 7 Rev L...
- Page 10 CAT Door Retrofit Upgrade: Ovation Security Box kit Part # DWC-O-SB Kit includes: (1) Security Box (2) ¼-20 x 1” Screws (2) ¼-20 Hex Keps Nuts (1) Thread Locking Cam Nut Rev L...
- Page 11 CAT Door Retrofit Upgrade: Ovation Security Box kit Part # DWC-O-SB Drill existing hole to Ø1/4”. Measure UP approximately 2-3/8” and drill Remove existing #10-24 nut and screw another Ø1/4” hole. from previous installation. Existing #10-24 screw 2-3/8 Existing hole from previous installation.
- Page 12 CAT Door Retrofit Upgrade: Ovation Security Box kit Part # DWC-O-SB Slide Security Box over frame and install (2) ¼-20 screws and secure with (2) ¼-20 nuts. Remove the existing nyloc Cam Nut from Lock Assembly and replace with new Thread Locking Cam Nut supplied.
