Hardware Manual
Industrial Cellular Router
ICR-2701
Advantech Czech s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic
Document No. MAN-0069-EN, revision from 15th November, 2023.

Advertisement

Table of Contents
loading

Related Manuals for Advantech ICR-2701

Summary of Contents for Advantech ICR-2701

  • Page 1 Hardware Manual Industrial Cellular Router ICR-2701 Advantech Czech s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Document No. MAN-0069-EN, revision from 15th November, 2023.
  • Page 2 © 2023 Advantech Czech s.r.o. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photography, recording, or any information storage and retrieval system without written consent. Information in this manual is subject to change without notice, and it does not represent a commitment on the part of Advantech.
  • Page 3 Used symbols Danger – Information regarding user safety or potential damage to the router. Attention – Problems that can arise in specific situations. Information – Useful tips or information of special interest.

  • Page 4: Table Of Contents

    Contents 1. Product Overview 1.1 Product Introduction ......... 1.2 Hardware Overview .
  • Page 5 List of Figures Hardware Overview of the Router ........Metal Box –...
  • Page 6 List of Tables Hardware Overview of the Router ........Order Codes Overview .

  • Page 7: Product Overview

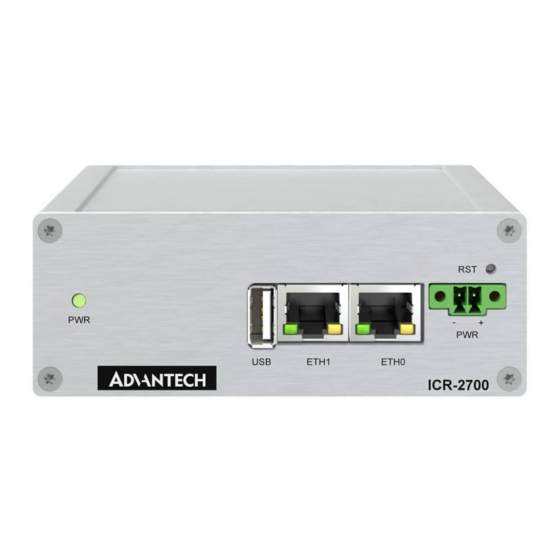

    1. Product Overview 1.1 Product Introduction Industrial router ICR-2701 is LAN Router & Edge Computing Gateway focused on the global market. The router, which may have a metal or plastic box, is equipped with two independently configurable Ethernet ports, with one USB 2.0 host interface and with LEDs for status indication. The router can be equipped with a dual-band WiFi module, but this must be part of the initial configuration –...

  • Page 8: Hardware Overview

    DIN clip DIN rail clip, included as standard accessories; see Chap- ter 1.8. Grounding Pay attention to proper grounding of model with metal box; screw see Chapter 2.3. Table 1: Hardware Overview of the Router ICR-2701 Hardware Manual (preliminary version)

  • Page 9: Order Codes

    Product Revision. Please note that the default revision (Rev.1.0) is unavailable here. Rev.# Description Initial version (revision number not printed on the labels). WiFi support added to the mainboard; see PCN-2023-10 for details. Not released for this model. Table 3: HW Revisions History ICR-2701 Hardware Manual (preliminary version)

  • Page 10: Package Contents And Accessories

    0 / 1 pc Order code: BB-KD-ETH WiFi Antenna (RP-SMA male). 0 / 1 pc Order code: BB-AW-A2458G-FSRPK Wall mount power supply, 12V/1A with EU plug. 0 / 1 pc Order code: BB-RPS-v2-EU Continued on the next page ICR-2701 Hardware Manual (preliminary version)

  • Page 11: Contents Of Package

    Wall mount power supply, 12V/1A with UK plug. 0 / 1 pc Order code: BB-RPS-v2-UK Wall mount power supply, 12V/1A with US plug. 0 / 1 pc Order code: BB-RPS-v2-US Table 4: Contents of Package ICR-2701 Hardware Manual (preliminary version)

  • Page 12: Product Dimensions

    For the dimensions of the product in metal and plastic boxes see the figures below. Note that all sizes are measured in millimeters. Variant with Metal Box Figure 2: Metal Box – Top, Side and Front View ICR-2701 Hardware Manual (preliminary version)

  • Page 13: Plastic Box - Top, Side And Front View

    1. Product Overview 1.6 Product Dimensions Variant with Plastic Box Figure 3: Plastic Box – Top, Side and Front View ICR-2701 Hardware Manual (preliminary version)

  • Page 14: Mounting Recommendations

    • Sufficient space must be left between each connector for the handling of cables, • To ensure the correct functioning of the router we recommend the use of an earth-bonding distribution frame for the grounding of the grounding screew, see Chapter 2.3. ICR-2701 Hardware Manual (preliminary version)

  • Page 15: Din Rail Mounting

    DIN rail clip hitched to the DIN rail get out of this rail and then fold out the bottom part of the router away from the DIN rail, see Figure 5. Figure 5: Removing Router from the DIN Rail ICR-2701 Hardware Manual (preliminary version)

  • Page 16: Product Label

    1. Product Overview 1.9 Product Label 1.9 Product Label The figure below shows an example of the product labels with all the information printed on them. Figure 6: Product Label ICR-2701 Hardware Manual (preliminary version)

  • Page 17: Hardware Functionality

    Receive Data+ (positive pole) — — — — Receive Data- (negative pole) — — — — Table 5: Ethernet Connector Pinout Description The isolation barrier of the Ethernet ports against the ground is 1500 V. ICR-2701 Hardware Manual (preliminary version)

  • Page 18: Power Supply

    All metal parts of the router in a metal box, including the box itself, are connected with the negative pole of the power supply (common pole). If recommended for the installation environment, protect the router by grounding it properly by the grounding screw, see Figure 9. Figure 9: Position of the Grounding Screw ICR-2701 Hardware Manual (preliminary version)

  • Page 19: Low Power Mode

    • To mount the drive to the mnt directory, use the mount command: mount /dev/sda1 /mnt For more information about the commands for creating, mounting, checking, and unmounting a file system on a USB Flash Drive, consult the application note for the Ext4_tools router app. ICR-2701 Hardware Manual (preliminary version)

  • Page 20: Usb Connector Pinout

    Positive pole of 5 V DC supply voltage, 0.5 A USB data - USB data signal – negative pole Input/Output USB data + USB data signal – positive pole Input/Output Negative pole of DC supply voltage Table 7: USB Connector Pinout ICR-2701 Hardware Manual (preliminary version)

  • Page 21: Led Status Indication

    Selected 100 Mbps bit rate ETH1 Green Selected 10 Mbps bit rate ETH0 Orange The network cable is connected. ETH1 Orange Blinking Data transmission Orange The network cable is not connected. Table 8: LED Status Indication ICR-2701 Hardware Manual (preliminary version)

  • Page 22: Reset Functions

    RST button for at least 10 seconds. This action will reset the router’s configuration to the default settings. Use a narrow screwdriver or any small tool to press the RST button. Figure 11: Resetting the Router ICR-2701 Hardware Manual (preliminary version)

  • Page 23: First Use

    WebAccess/DMP server. See the configuration manual [1], chapter Basic Information -> WebAccess/DMP Configuration, for more information. If the router’s label lacks a unique password, use the password root . ICR-2701 Hardware Manual (preliminary version)

  • Page 24: Technical Specifications

    170 g (plastic box) Antenna connectors WiFi RP-SMA female connector for WiFi – 50 Interfaces ETH0 RJ-45 socket for 10/100 Mbps Ethernet ETH1 RJ-45 socket for 10/100 Mbps Ethernet USB-A socket Table 9: Basic Parameters ICR-2701 Hardware Manual (preliminary version)

  • Page 25: Standards And Regulations

    EN 61000-4-6, EN 61000-4-11, EN 61000-6-2, EN 61000-6-3, EN 55032 Safety IEC 62368-1, IEEE 802.3 Transportation E-Mark (E8), homologation number: 10R-06 13493 National CE, UKCA compliant Environmental REACH, RoHS3 and WEEE compliant Table 10: Standards and Regulations ICR-2701 Hardware Manual (preliminary version)

  • Page 26: Type Tests And Environmental Conditions

    Radiated emission EN 55032 Enclosure Cl. B,30MHz-1GHz,1GHz-6GHz Class B, 150 kHz – 30 MHz Class B, 150 kHz – 30 MHz AC/DC Class B, 150 kHz – 30 MHz Table 11: Type Tests and Environmental Conditions ICR-2701 Hardware Manual (preliminary version)

  • Page 27: Parameters Of Wifi

    Multirole (STA&AP) Security – Standards WPA, WPA2, WPA3, 802.1X Security – Encryption WEP, TKIP, AES TX Power Max. 18 dBm @ 2.4 GHz Max. 15 dBm @ 5 GHz Table 12: Technical Parameters of WiFi ICR-2701 Hardware Manual (preliminary version)

  • Page 28: System Configuration

    • 512 MB for customer data RAM size 128 MB Watchdog HW Watchdog Battery Backup RTC Trusted Platform Module (TPM) 2.0 Table 13: System Configuration Not assembled by default, for a dedicated customer order only. ICR-2701 Hardware Manual (preliminary version)

  • Page 29: Appendix A: Troubleshooting

    • Check the "System Log" page for error messages. IPSec tunnel establishes but the communication does not run. • Probably there are bad routing rules defined in the connected devices, or the default gateway. Serial communication is not working. ICR-2701 Hardware Manual (preliminary version)
  • Page 30 Web interface in "Configuration" section, "Services", "SSH". Then connect with any SSH client on port 22 of the router. User and password is the same as for the Web interface. Telnet on v2 routers can be enabled here: "Configuration" section, "Services", "Telnet". ICR-2701 Hardware Manual (preliminary version)
  • Page 31 +1-800-346-3119 (Monday – Friday, 7 a.m. to 5:30 p.m. CST) Fax: +1-815-433-5109 E-mail: support@advantech-bb.com Web: www.advantech-bb.com Customer Support for Asia Phone: +886-2-2792-7818 #1299 (Monday – Friday, 9 a.m. to 5:30 p.m. UTC+8) Fax: +886-2-2794-7327 E-mail: icg.support@advantech.com.tw Web: www.advantech.com ICR-2701 Hardware Manual (preliminary version)
  • Page 32 Remove the battery from the device before disposal. The battery in the device needs to be disposed of apart accordingly. Check the terms and conditions of your supplier for disposal information. ICR-2701 Hardware Manual (preliminary version)
  • Page 33 Appendix D: Related Documents ICR-2[78]00 Configuration Manual [EP] Product-related documents and applications can be obtained on Engineering Portal at https://icr.advantech.com/download address. ICR-2701 Hardware Manual (preliminary version)
  • Page 34 We, Advantech Czech s.r.o., declare that the radio equipment narrated in this user’s man- ual complies with Directive 2014/53/EU (WiFi version) and with the essential requirements and other relevant provisions of Directives 2014/30/EU and 2014/35/EU (non-WiFi ver- sion). We, Advantech Czech s.r.o., declare that the radio equipment narrated in this user’s man- ual complies with Radio Equipment Regulations 2017 (S.I.
