- Page 1 LAN Industrial Router ICR-2701 USER MANUAL...
- Page 2 ICR-2701 c 2023 Advantech Czech s.r.o. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photography, recording, or any information storage and retrieval system without written consent. Information in this manual is subject to change without notice, and does not represent a commitment on the part of Advantech.
- Page 3 Attention – Problems that can arise in specific situations. Information, notice – Useful tips or information of special interest. Advantech Czech s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Document No. MAN-0069-EN, revision from February 23, 2023. Released in the Czech Republic.
-
Page 4: Table Of Contents
ICR-2701 Contents 1 Product Overview 1.1 Product Introduction ....... . . - Page 5 ICR-2701 List of Figures Hardware Overview of the Router ......Metal Box – Top, Side and Front View .
- Page 6 ICR-2701 List of Tables Hardware Overview of the Router ......Order Codes Overview ....... .
-
Page 7: Product Overview

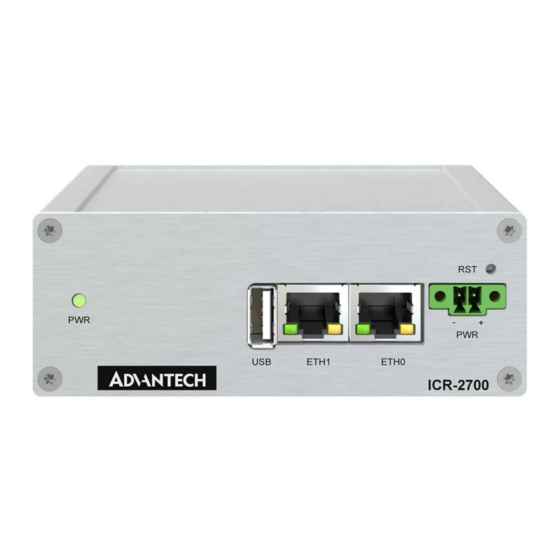

ICR-2701 1. Product Overview 1.1 Product Introduction Industrial router ICR-2701 is LAN Router & Edge Computing Gateway focused on the global market. The router, which may have a metal or plastic box, is equipped with two independently configurable Ethernet ports, with one USB 2.0 host interface and with LEDs for status indi- cation. -
Page 8: Hardware Overview
ICR-2701 1.2 Hardware Overview The router case preview is shown in Figure 1. A short description of hardware parts of the router is listed in Table 1, including the links to the chapters with a detailed description. For a router in a plastic box, the description of the components is similar. -
Page 9: Order Codes
ICR-2701 1.3 Order Codes Order codes overview is shown in the table below. Order code Configuration ICR-2701 metal box, ETH0, ETH1, USB ICR-2701P plastic box, ETH0, ETH1, USB ICR-2701A01 metal box, ETH0, ETH1, USB, accessories with Ethernet cable, two an-... -
Page 10: Package Contents
ICR-2701 1.4 Package Contents The standard router set includes items listed in Table 3: For other optional accessories, see Table 4. Item# Figure Q’ty Description 1 pcs Router in metal or plastic box DIN rail clip with screws (screws differ... -
Page 11: Other Accessories
ICR-2701 Table lists items that may be included as accessories or can be ordered separately. See Chapter for more information. Description Figure Ethernet cross cable of length 1.5 m. It can be ordered separately under BB-KD-ETH part number. Wall mount power supply, 12V/1A with EU plug.It can be ordered separately under BB-RPS-v2-EU part number. -
Page 12: Product Dimensions
ICR-2701 1.5 Product Dimensions For the dimensions of the product in metal and plastic boxes see the figures below. Note that all sizes are measured in millimeters. Variant with Metal Box Figure 2: Metal Box – Top, Side and Front View... -
Page 13: Plastic Box - Top, Side And Front View
ICR-2701 Variant with Plastic Box Figure 3: Plastic Box – Top, Side and Front View... -
Page 14: Mounting Recommendations
ICR-2701 1.6 Mounting Recommendations The router can be placed: on a flat surface, on a DIN rail EN 60715 with the metal DIN rail clip (see Chapter 1.7) For most applications with a built-in router within a switchboard, it is possible to recognize... -
Page 15: Din Rail Mounting
ICR-2701 1.7 DIN Rail Mounting The DIN rail clip is suitable for a DIN rail according to EN 60715 standard only. There are four possible positions of the clip as shown in Figure 4. The DIN rail clip is the same for the metal and plastic router box. It just differs by the screws used. -
Page 16: Product Label
ICR-2701 1.8 Product Label An example of the product label, with all the information printed on it, is in the figure below. Figure 6: Label Example... -
Page 17: Hardware Functionality
ICR-2701 2. Hardware Functionality See Chapter for the product hardware overwiew. Table lists a short description of the hardware, including the links to the chapters with a detailed description. 2.1 Ethernet Interfaces The panel socket of RJ45 is used for Ethernet interface. The pinout of the socket is shown in Figure and described in Table 5. -
Page 18: Power Supply
ICR-2701 2.2 Power Supply The pins of power supply are physically connected to the 6-pin terminal block panel socket located on the left panel. The connection of power supply is shown in Figure and described in Table 6. Figure 8: Connection of Power Supply... -
Page 19: Low Power Mode
ICR-2701 2.3 Low Power Mode In applications requiring low power consumption (such as solar power - not 7/24 mode) is strictly recommended to use LPM mode prior to powering down the entire router. LPM (Low Power Mode) is a router mode where the router is in sleep mode with minimal power consumption;... -
Page 20: Led Status Indication
ICR-2701 USB Socket Pinouts USB socket pinouts is described in Figure and Table 7. Figure 10: USB Connector Pinout Signal mark Description Data flow direction +5 V Positive pole of 5 V DC supply voltage, 0.5 A USB data - USB data signal –... -
Page 21: Reset Functions
ICR-2701 2.6 Reset Functions Consider creating a router configuration backup before performing the router’s factory reset. The RST button can be used in three different scenarios: Reset: Hold the RST button for less than 4 seconds; the router will reboot, applying its customized configuration. -
Page 22: First Use
ICR-2701 3. First Use 3.1 Accessories Connection Before putting the router into operation, it is necessary to connect all the components required to run your applications; see Chapter for the hardware overview. 3.2 Router Configuration Initial router configuration can be made via a web browser on your PC. Here you can perform router monitoring, configuration, and administration. -
Page 23: Router's Web Interface
ICR-2701 Figure 12: Router’s Web Interface A detailed description of the router settings in the web interface can be found in the configura- tion manual of the router. -
Page 24: Technical Specifications
ICR-2701 4. Technical Specifications 4.1 Basic Parameters Router parameters Temperature range Operating -40 C to +75 C Storage -40 C to +85 C Humidity Operating 5 to 95 % relative humidity non condensing Storage 5 to 95 % relative humidity non condensing... -
Page 25: Standards And Regulations
ICR-2701 4.2 Standards and Regulations The router complies with the following standards and regulations: Standards and regulations EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11, EN 61000-6-2, EN 61000-6-3, EN 55032 Safety IEC 62368-1, IEEE 802.3... -
Page 26: Type Tests And Environmental Conditions
ICR-2701 4.3 Type Tests and Environmental Conditions Phenomena Test Description Test levels EN 61000-4-2 Enclosure 6 kV, L3 8 kV, L3 RF field AM EN 61000-4-3 Enclosure 20 V/m, 80 MHz – 1 GHz, LX modulated 10 V/m, 1 GHz – 6 GHz, L3... -
Page 27: System Configuration
ICR-2701 4.4 System Configuration The main parametes of the system are listed in Table 12. Other technical parameters CPU architecture ARM926EJ-S CPU frequency 600 MHz CPU power 4,72 DMIPS/MHz Flash memory 4 MB of NOR 4 096 MB of eMMC... -
Page 28: Appendix A: Troubleshooting
ICR-2701 Appendix A: Troubleshooting If you cannot connect to the router from your PC, your network card may be configured in such a way that it is not possible to connect to the router. Take one or more of the following steps in order to solve the problem: Make sure your PC’s network card is configured to obtain the IP address form the... - Page 29 ICR-2701 L2TP or IPSec isn’t establishing. Check the "System Log" page for error messages. IPSec tunnel establishes but the communication does not run. Probably there are bad routing rules defined in the connected devices, or the default gateway. Serial communication is not working.
-
Page 30: Appendix B: Customer Support
ICR-2701 Appendix B: Customer Support Customer Support for Europe Advantech Czech s.r.o. Sokolska 71 562 04, Usti nad Orlici, Czech Republic Phone: +353 91 792444 Fax: +353 91 792445 E-mail: iiotcustomerservice@advantech.eu Web: www.advantech.com Customer Support for NAM Advantech B+B SmartWorx... -
Page 31: Appendix C: Regulatory & Safety Information
ICR-2701 Appendix C: Regulatory & Safety Information Safety Notices Please, observe the following instructions: The router must be used in compliance with all applicable international and national laws and in compliance with any special restrictions regulating the utilization of the router in prescribed applications and environments. - Page 32 ICR-2701 Product Disposal Instructions The WEEE (Waste Electrical and Electronic Equipment: 2012/19/EU) directive was in- troduced to ensure that electrical/electronic products are recycled using the best available recovery techniques to minimize the environmental impact. This product contains high quality materials and components which can be recycled. At the end of it’s life this pro- duct MUST NOT be mixed with other commercial waste for disposal.
-
Page 33: Appendix D: Related Documents
ICR-2701 Appendix D: Related Documents Configuration Manual for v2i Platform [EP] Product-related documents and applications can be obtained on Engineering Portal at address. https://icr.advantech.cz/download... - Page 34 (non-WiFi ver- sion). We, Advantech Czech s.r.o., declare that the radio equipment narrated in this user’s manual complies with Radio Equipment Regulations 2017 (S.I. 2017 No. 1206) and with the Electromagnetic Compatibility Regulations 2016 (S.I. 2016 No. 1091 and S.I. 2016 No. 1101).
