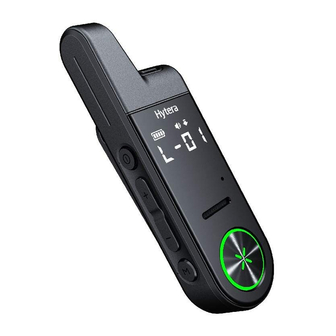

- Page 1 S1 mini Two-way Radio User Manual Hytera Communications Corporation Limited...
- Page 2 Preface Welcome to the world of Hytera and thank you for purchasing this product. This manual includes a description of the functions and step-by-step procedures for use. To avoid bodily injury or property loss caused by incorrect operation, please carefully read the Safety Information Booklet before use.
- Page 3 Copyright Information Hytera is the trademark or registered trademark of Hytera Communications Corporation Limited (the Company) in the People's Republic of China (PRC) and/or other countries or areas. The Company retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners.
- Page 4 The antenna should be kept away from the face and eyes. When worn on the body, always place the radio in a Hytera-approved holder, holster, case, or body harness or by use of the correct clip for this product. Use of non-approved accessories may result in exposure levels which exceed the ISED's occupational/controlled environmental RF exposure limits.
- Page 5 Lorsque vous portez la radio sur le corps, placez - la toujours dans un support, un étui, un boîtier ou un harnais de corps approuvé par hytera ou utilisez le clip approprié pour ce produit. L'utilisation d'accessoires non approuvés peut entraîner des niveaux d'exposition dépassant les limites d'exposition aux RF professionnelles / environnementales...
-
Page 6: Table Of Contents
6.4 Monitor ..............................9 6.5 Squelch Off ............................10 6.6 Radio Clone ............................10 6.7 Channel Copy ............................. 11 6.8 Hytera Radio App ..........................12 7. Troubleshooting ............................. 13 8. Radio Care .............................. 14 8.1 Care ..............................14 8.2 Cleaning .............................. 15 8.3 Sterilizing ............................ -
Page 7: Documentation Information
User Manual Documentation Information Documentation Information Documentation Conventions Instruction Conventions Icon Description Indicates information that can help you make better use of your product. Indicates references that can further describe the related topics. Indicates situations that could cause data loss or equipment damage. Indicates situations that could cause minor personal injury. - Page 8 Documentation Information User Manual Key Operations Operation Description Press Press and release quickly. Long press Press and hold for preset time. Press and hold Keep the key pressed.
-
Page 9: Packing List
User Manual Packing List 1. Packing List Unpack carefully and check that you have received the following items. If any item is missing or damaged, contact your dealer. Item Quantity (PCS) Item Quantity (PCS) Radio Earpiece Strap Documentation Kit Custom Label ... -
Page 10: Product Overview
2. Product Overview 2.1 Product Layout You can configure the channel or radio alias to be displayed on the screen through the Hytera Radio app. 2.2 Programmable Keys For convenience, you can assign the On-Off key, Volume/Channel Up key, and Volume/Channel Down key as shortcuts to the following radio features through the Hytera Radio app. -
Page 11: Before Use
User Manual Before Use 3. Before Use 3.1 Charge the Battery Read the Safety Information Booklet before charging. The remaining lithium-ion battery power is limited to 30% pursuant to the new lithium battery shipment regulation approved by the International Air Transport Association (IATA). ... -
Page 12: Use The Custom Label
Before Use User Manual 3.3 Use the Custom Label... -
Page 13: Basic Operations
If you do not switch channel within 5s, the Volume/Channel Up and Volume/Channel Down keys automatically switch to volume control mode. You can add, modify, or delete channel through the Hytera Radio app. 4.4 Make a Call To ensure optimal voice quality on the receiving radio, keep the microphone about 2.5 cm to 5 cm away from your mouth during speaking. -
Page 14: Operating Status
The radio is being written clone data. Flashes red The radio receives connection request from the Hytera Radio Once every 0.2s for 15s app. Once every 0.2s for 5s The radio is being searched by the Hytera Radio app. -
Page 15: Supplementary Services
User Manual Supplementary Services 6. Supplementary Services 6.1 Battery Saver Battery Saver allows you to prolong the battery life significantly. To enable or disable Battery Saver, press the preprogrammed Battery Saver key. When Battery Saver is enabled, the radio emits a beep. ... -
Page 16: Squelch Off
Supplementary Services User Manual 6.5 Squelch Off Squelch Off keeps the speaker unmuted whether carrier exists, during which the radio sounds background noise. To enable Squelch Off, press the preprogrammed Squelch Off key. When Squelch Off is enabled, the radio emits a beep. ... -
Page 17: Channel Copy
On-Off key to turn off the radio B. When the radio B restarts, it recovers to the original configuration. 6.7 Channel Copy Channel Copy allows you to copy channel information from any radio in the same frequency to the S1 mini quickly. Do not copy information of an empty channel. -
Page 18: Hytera Radio App
You can program the radio through the Hytera Radio app. To download and install the Hytera Radio app on your Android phone, scan the QR code. It is recommended that you install the Hytera Radio app on the phone running Android 9.0 or later. -
Page 19: Troubleshooting
User Manual Troubleshooting 7. Troubleshooting Phenomena Analysis Solution The radio cannot The battery may have run out. Recharge the battery. be turned on. keys fail function Restart the radio. temporarily. The keys do not work. Contact your dealer or technicians of the The keys may be damaged. -
Page 20: Radio Care
Radio Care User Manual 8. Radio Care To guarantee optimal performance as well as a long service life of the radio, follow the tips below. 8.1 Care Do not disassemble the radio. Do not throw, crack, or hammer the radio. ... -
Page 21: Cleaning
User Manual Radio Care 8.2 Cleaning Turn off the radio before cleaning. Ensure no external radios are connected to the radio. Do not use chemical preparations such as stain removers, alcohol, sprays or oil preparations. Do not directly spray the neutral cleanser on the radio. ... -
Page 22: Storing
Radio Care User Manual 8.4 Storing Turn off the radio before storage. Ensure no external accessories are connected to the radio. When storing the radio, follow the tips below: Keep the radio in the well-ventilated place with the temperature from –30°C to +80°C and the humidity no more ... -
Page 23: Optional Accessories
User Manual Optional Accessories 9. Optional Accessories Use the accessories approved by the Company only. Otherwise, we will not be liable for any loss or damage arising out of the use of unauthorized accessories. Contact your local dealer for the optional accessories used with the product. -
Page 24: Specifications
Specifications User Manual 10. Specifications Item Description Model HYT-S10 Dimension (H x W x D) (with antenna and belt 99 mm x 30 mm x 24.1 mm clip) Weight 48 g Screen 0.88 inches Battery 750 mAh Operating Voltage 3.8 V Operating Temperature 0°C to +55°C –30°C to 70°C... -
Page 25: Abbreviations
User Manual Abbreviations 11. Abbreviations Abbreviation Full Name IATA International Air Transport Association Light-Emitting Diode Push-to-Talk... - Page 26 Hytera Communications Canada. © 2023 Hytera Communications Canada. All Rights Reserved. Address: Unit 11, 100 Leek Crescent, Richmond Hill, ON L4B 3E6 https://www.hytera.ca...
