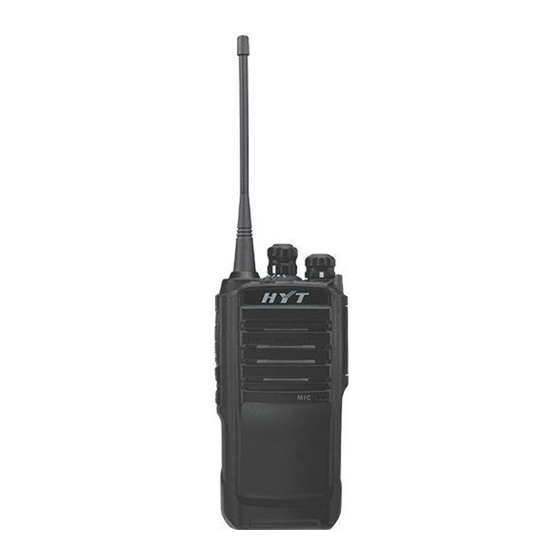

Hytera TC-508V2 Owner's Manual
  1. Manuals
  2. Brands
  3. Hytera Manuals
  4. Two-Way Radio
  5. TC-508V2
  6. Owner's manual

Hytera TC-508V2 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Preface
Thank you for purchasing Hytera TC-508 portable radio. With simple appearance, reliable mechanics,
practical functions and stable performance, it will refresh your communication experience!
To derive optimum performance from your product, please read this manual and the supplied Safety
Information Booklet carefully before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC-508V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hytera TC-508V2

Summary of Contents for Hytera TC-508V2

  • Page 1 Preface Thank you for purchasing Hytera TC-508 portable radio. With simple appearance, reliable mechanics, practical functions and stable performance, it will refresh your communication experience! To derive optimum performance from your product, please read this manual and the supplied Safety...
  • Page 2 TC-508 Owner’s Manual Instructional Icons This radio is not intended for use by general population in an uncontrolled environment. It is only for occupational use and only applied to work-related conditions. The radio must be only used by users, who are fully aware of the hazards of the exposure and who are able to exercise control over their RF exposure to qualify for the higher exposure limits.
  • Page 3 The Hytera product described in this manual may include Hytera computer programs stored in memory or other media. Laws in PRC and/or other countries or areas protect the exclusive rights of Hytera with respect to its computer programs. The purchase of this product shall not be deemed to grant, either directly or by implication, any rights to the purchaser regarding Hytera computer programs.
  • Page 4 TC-508 Owner’s Manual RF Energy Exposure Compliance ● Your radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE and ICNIRP exposure limits for occupational/controlled RF exposure environment at operating duty factors of up to 50% transmitting and is authorized by the FCC for occupational use only.
  • Page 5 TC-508 Owner’s Manual FCC Licensing Information Part 15 Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 6: Table Of Contents

    TC-508 Owner’s Manual Contents Checking Items in the Package ........................6 Product Overview .............................7 Product Controls ..........................7 Programmable Keys..........................8 Before Use ...............................9 Charging the Battery .........................9 Assembling the Accessories......................10 Status Indication.............................12 Basic Operations ............................13 Turning the Radio On/Off ........................13 Adjusting the Volume ........................13 Selecting a Channel ........................13 Transmitting / Receiving........................13 Functions and Operations ........................14...

  • Page 7: Checking Items In The Package

    TC-508 Owner’s Manual Checking Items in the Package Please unpack carefully and check that all items listed below are received. If any item is missing or damaged, please contact your dealer. Battery Rapid-rate Charger (for Li-Ion battery) Power Adapter Antenna Belt Clip Strap Manuals...

  • Page 8: Product Overview

    TC-508 Owner’s Manual Product Overview Product Controls Part Name Part Name Part Name ○ ○ ○ PTT Key SK1 (programmable) SK2 (programmable) Radio On-Off/Volume ○ ○ ○ Antenna Channel Selector Knob Control Knob ○ ○ ○ Speaker Microphone LED Indicator ○...

  • Page 9: Programmable Keys

    TC-508 Owner’s Manual ○ ○ Screw (Belt Clip) Charging Piece Programmable Keys For enhanced convenience, you may request your dealer to program the keys SK1 and SK2 as shortcuts to the functions listed below: Shortcut Key Function To adjust power level through one button Adjust Power Level press.

  • Page 10: Before Use

    TC-508 Owner’s Manual Before Use Charging the Battery Use only the charger and battery specified by Hytera. Charger LED can indicate the charging process. ■ Charge Diagram ■ Procedures Connect the power adapter to AC socket. See arrow 1. Plug the power adapter into the rear jack of the charger. See arrow 2.

  • Page 11: Assembling The Accessories

    TC-508 Owner’s Manual Green LED glows. Fully charged When battery power runs low, the LED will flash red, and the low-pitched tone will sound periodically. In this case, please replace or charge the battery. Caution: Be sure to read the Safety Information Booklet, to get necessary safety information. Assembling the Accessories Assembling the Antenna Turn the antenna clockwise to fasten it.
  • Page 12 TC-508 Owner’s Manual Assembling the Belt Clip 1. Remove the screws. 2. Align the screw holes on the belt clip with those on the radio’s body, and then tighten the screws. To remove the belt clip, loosen the screws. Assembling the Audio Accessory/Programming Cable 1.

  • Page 13: Status Indication

    TC-508 Owner’s Manual Status Indication The top LED indicator will help you easily identify the current status of your radio. LED Indicator Radio Status Red LED glows. Transmitting Red LED flashes. Low battery alert Green LED glows. Receiving Green LED flashes. Scanning...

  • Page 14: Basic Operations

    TC-508 Owner’s Manual Basic Operations Turning the Radio On/Off Rotate the Radio On-Off/Volume Control knob clockwise/counter-clockwise until a click is heard to turn the radio on/off. Adjusting the Volume You may control the volume level using the Radio On-Off/Volume Control knob. After the radio is powered on, rotate the knob clockwise to increase the volume, or counter-clockwise to decrease the volume.

  • Page 15: Functions And Operations

    TC-508 Owner’s Manual Functions and Operations CTCSS/CDCSS CDCSS/CTCSS can be used to prevent unwanted conversations at the same frequency. If CTCSS/CDCSS is set on a certain channel, you can only receive voice calls from radios with matching CTCSS/CDCSS. Otherwise you will receive voice calls from all users operating at the same frequency. You may request your dealer to program corresponding parameters on certain channels.

  • Page 16: Squelch Off

    TC-508 Owner’s Manual Press and hold down the programmed Monitor Momentary key to activate this function (an alert tone sounds); release the key to exit (the alert tone sounds twice). Squelch Off This feature allows you to always unmute the speaker, no matter whether carrier is present or not. Operation: Press the programmed Squelch Off key to activate this function;...

  • Page 17: Vox

    TC-508 Owner’s Manual Once any activity is detected, it will jump to the priority channel. For more information, please consult your dealer. To exit the scanning process, you may press the Scan key again, or switch to a channel where the auto scan feature is disabled; or turn the radio off.

  • Page 18: Battery Strength Indicator

    TC-508 Owner’s Manual Battery Strength Indicator This feature allows you to know the current battery strength. Operation: Press and hold down the programmed Battery Strength Indicator key, and the LED glows to indicate remaining battery strength by different colors . Release the key to exit. The following table lists different colors representing different battery strength levels LED Indicator Battery Strength...

  • Page 19: Battery Save

    TC-508 Owner’s Manual Battery Save In Standby mode, when no signal is received / transmitted or no operation (key press) is performed for 10 seconds (programmable), the radio will automatically enter Battery Save mode to reduce power consumption. The radio may exit the Battery Save mode and get activated as soon as any key is pressed or any signal is received.

  • Page 20: Troubleshooting

    TC-508 Owner’s Manual Troubleshooting Phenomena Analysis Solution The battery may be improperly Remove the battery and attach it again. installed. The battery may run out. Recharge or replace the battery. The radio can not be Clean the battery contacts. If the problem can powered on.
  • Page 21 TC-508 Owner’s Manual If the above solutions can not fix your problems, or you may have some other queries, please contact us or your local dealer for more technical support.

  • Page 22: Care And Cleaning

    TC-508 Owner’s Manual Care and Cleaning To guarantee optimal performance as well as a long service life of the product, please follow the tips below. Product Care Do not pierce or scrape the product with any edged instruments or hard objects. Keep the product far away from substances that can corrode the circuit.

  • Page 23: Optional Accessories

    MIC & VOX EHM16 MIC & VOX EHM15 Nylon Carrying Case (non-swivel) (black) Antenna NCN001 Caution: Use the accessories specified by Hytera only. If not, Hytera shall not be liable for any losses or damages arising out of use of unauthorized accessories.
