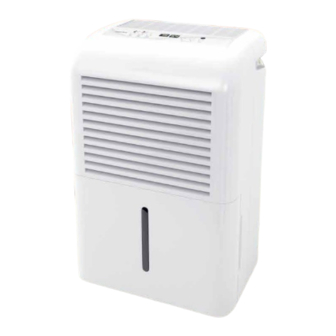

HUMICONTROL
TM
S A F E G U A R D I N G V A L U A B L E S E R I E S
DEHUMIDIFIER
ND690
PRODUCT FEATURES
AUTO
AUTO STOP
EXTENSIVE
CFC FREE
PREFERRED
HUMIDITY
WITH FULL TANK
COVERAGE
REFRIGERANT
HUMIDITY
SETTING
SENSOR
INDICATOR
AREA
PRE-FILTER
CONTINUOUS
ROTARY
EASY ROLL
SCREEN
DRAINAGE
COMPRESSOR
CASTORS
OPTION
OPERATING INSTRUCTIONS AND E-WARRANTY APPLICATION
Please read instructions before using the Dehumidifier
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Novita HUMICONTROL ND690
Summary of Contents for Novita HUMICONTROL ND690
- Page 1 HUMICONTROL S A F E G U A R D I N G V A L U A B L E S E R I E S DEHUMIDIFIER ND690 PRODUCT FEATURES AUTO AUTO STOP EXTENSIVE CFC FREE PREFERRED HUMIDITY WITH FULL TANK COVERAGE REFRIGERANT HUMIDITY...
-
Page 2: Table Of Contents
LIMITED WARRANTY TERMS & CONDITIONS This product includes: • novita Dehumidifier ND690 • novita Dehumidifier ND690 Operating Instructions & e-Warranty Application (e-copy) • Starter Guide * Please contact us immediately if any of the above-mentioned items are not included. OPTIONAL HUMICONTROL™... -
Page 3: Product Description
PRODUCT DESCRIPTION Dehumidifier ND690 FRONT VIEW Control Panel Side Handle Nylon Mesh Pre- Filter Screen Air Inlet Water Tank with Inner Handle Easy Roll Castor BACK VIEW Air Outlet Continuous Drainage Outlet Power Cord & Power Plug... -
Page 4: Control Panel Description
CONTROL PANEL DESCRIPTION Full Water Defrost Light Tank Indicator Indicator Power Timer LED 1 LED 2 Humidity Temperature Control Speed Setting Display TECHNICAL SPECIFICATIONS Power Consumption 900 Watts Voltage/Frequency 220-240V/50 Hz Extraction 50 Litres/Day (30 C, 80% RH) Humidity Setting Available Auto Humidity Setting Available... -
Page 5: Features
FEATURES Auto-humidity Sensor The inbuilt hydrostat detects the humidity level of the surrounding and compares it to the humidity level set. The compressor stops while the fan continues to run when the desired humidity level is achieved. Compressor will reactivate when humidity level of the surrounding surpasses the desired humidity level. Humidity Setting Control The humidity level can be set according to individual’s desire within a range of 30% to 90% RH in interval of 5% RH... -
Page 6: Programmable Timer
Programmable Timer The timer is activated when button is pressed. set the timer in interval of 1 hour and can be programmed to work from 0 (to turn off timer) to 24 hours. Timer can be applied to both ON and OFF mode to turn OFF or turn ON the unit respectively. -
Page 7: Continuous Drainage
Optional Continuous Drainage Instead of manually removing the water from the water tank, the novita dehumidifier ND690 can be set to use with the optional continuous drainage option. Using the continuous drainage option: 01. Turn off the power supply and remove the plug from the power outlet. -
Page 8: Using The Novita Dehumidifier
USING THE NOVITA DEHUMIDIFIER Setting Up 01. Remove all packaging materials and place the unit on a dry, stable and level surface. • DO NOT remove the polystyrene from the water tank. 02. Remove the water tank and then proceed to grasp the grooves at the bottom of the pre-filter screen and slide it downwards. -
Page 9: Emptying The Water Tank
EMPTYING THE WATER TANK novita Dehumidifier ND690 shuts off automatically when the water tank is full. Follow the simple steps below to empty the water tank. Remove the water tank from the unit. Water Tank Hold the water tank handle and discard the content. -
Page 10: Cleaning & Maintenance
CLEANING & MAINTENANCE Cleaning the novita Dehumidifier Front Back To ensure the effectiveness of the dehumidifier, it is recommended to clean & maintain the unit at least once a week. 01. Disconnect the dehumidifier from the power supply. 02. Use a soft cloth to gently wipe the outer case to remove dust. -
Page 11: Troubleshooting
• Remove water tank and replace it switched on. into the unit again. • Plug or cord is damaged. • Contact novita Customer Care Centre. Fan is not working. • Motor has broken down. • Contact novita Customer Care Centre. -
Page 12: Safety Precautions
SAFETY PRECAUTIONS DO NOT pull or tug the unit by Keep the unit away from Refrain from placing the Servicing should only be the power cord to prevent flammable liquids. dehumidifier in confined closets. conducted by professional safety hazards or damage to service technicians. -
Page 13: Novita Customer Service Guarantee
Service Trekking* With everyone’s busy schedule, it’s sometimes hard to keep track of everything. Sit back, relax and leave the fussing to us. Instead of calling and checking up on the status of your product, let novita keeps you updated. -
Page 14: Limited Warranty Terms & Conditions
S$24 is applicable. To the fullest extent permitted by law, novita shall not be in any way liable for any incidental or consequential, direct, indirect damages whatsoever caused by the breach of any express, implied or statutory warranty or condition. - Page 15 • All Information is accurate at the point of print. novita reserves all rights to update the information without prior notice.
- Page 16 COPYRIGHT © 2020 NOVITA SG SV/M/ND690/V2...
