PRODUCT FEATURES

SEMI-

AUTO

PREFERRED

PERMANENT

HUMIDITY

BUILT-IN IONIZER

SENSOR

SETTINGS

CHILDLOCK

ECONOMICAL

AUTO STOP

FUNCTION

STANDBY

WITH FULL TANK

MODE

INDICATOR

OPERATING INSTRUCTIONS AND E-WARRANTY APPLICATION

Please read instructions before using the Dehumidifier

TIMER

POWER

EFFICIENCY

PRE-FILTER

CONTINUOUS

SCREEN

DRAINAGE

OPTION

HUMICONTROL

S A F E G U A R D I N G V A L U A B L E S E R I E S

DEHUMIDIFIER

ND298

CONFIGURATION

FOR COMPRESSOR

Need help?

Do you have a question about the ND298 and is the answer not in the manual?

Questions and answers

Summary of Contents for Novita ND298

Page 1 HUMICONTROL S A F E G U A R D I N G V A L U A B L E S E R I E S DEHUMIDIFIER ND298 PRODUCT FEATURES CONFIGURATION FOR COMPRESSOR SEMI- AUTO PREFERRED TIMER POWER PERMANENT...
Page 2 LIMITED WARRANTY EXTENSION – EXTENDED WARRANTY This product includes: • novita Dehumidifier ND298 • novita Dehumidifier ND298 Operating Instructions & e-Warranty Application (e-copy) • 1 x PE Hose (12 mm inner diameter) • Starter Guide * Please contact us immediately if any of the above-mentioned items are not included.

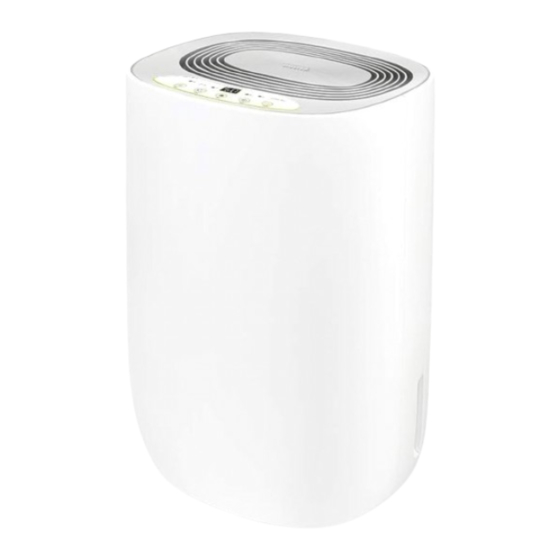

Page 3 PRODUCT DESCRIPTION Dehumidifier ND298 FRONT VIEW Semi-Permanent Built-In Ionizer Air Outlet Control Panel Front Panel Casing Rear Panel Casing BACK VIEW Carrying Handle Power Cord & Plug Air Inlet Frame & Pre-Filter Screen Air Inlet Frame Groove Enhanced Dual Mesh Activated Carbon Filter ◊...
Page 4 CONTROL PANEL DESCRIPTION Power Control High Fan Speed Indicator Timer Low Fan Speed Indicator RH% Setting RH% Display Speed Timer On Indicator Anion Mode Full Tank Indicator Anion Mode On Indicator Power/Defrost Indicator TECHNICAL SPECIFICATIONS Voltage/Frequency 220-240V/50Hz Extraction Rate (30 C/80%RH) 12 Litres/Day Rated Power (27...
Page 5 FEATURES Auto Humidity Sensor Inbuilt hygrostat detects the humidity level of the surrounding and compares it to the humidity level set. The compressor stops operation and unit enters economical standby mode with low fan speed operating for 3 minutes before coming to a stop for 17 minutes when the desired humidity is achieved. After which, compressor and preceding fan speed setting will reactivate again, when humidity level of the surrounding surpasses the desired humidity level by 3%.
Page 6 Timer At On Mode, the unit can be programmed with a timer from 01 to 24 hours at an interval of 1 hour for an automatic shutoff. Timer indicator illuminates when timer function is activated. • To deactivate timer function, press Timer button twice consecutively within 5 seconds.
Page 7 Childlock Function To guard against curious kids, unit is equipped with a Childlock function to prevent mishandling/mis-activated by young children who may change the operation unintentionally. To activate childlock function, simply press and hold Speed button for 2 seconds. Auto Shut Off Unit shuts off automatically with full water tank indicator illuminates and buzzer alarm goes off 5 times in following circumstances: •...
Page 8 Pre-Filter Screen & Enhanced Dual Mesh Activated Carbon Filter ◊ Pre-filter sieves out contaminants from the air that is drawn into the unit. This process increase the efficiency of the unit and helps to filter the air that is released back into the surroundings. Enhanced Dual Mesh Activated Carbon Filter ◊...
Page 9 USING THE NOVITA DEHUMIDIFIER Setting Up 01. Remove all packaging materials and place the unit on a dry, stable and level surface. • DO NOT remove the polystyrene from the water tank. 02. From the back of the unit, grasp the Air Inlet Frame and pull it outwards to remove the Air Inlet Frame &...
Page 10 • In the event when the fan stop operation, Anion Mode will be automatically shut off. Emptying the Water Tank novita Dehumidifier ND298 shuts off automatically when the water tank is full. Follow the simple steps below to empty the water tank.
Page 11 • DO NOT use the dehumidifier without the Air Inlet Frame & Pre-Filter Screen in place. CLEANING & MAINTENANCE Cleaning the novita Dehumidifier It is important to conduct service maintenance of the unit at least Front Back once a week to ensure unit optimum performance and to prevent dust/dirt built up at the continuous drainage outlet port and water float sensor, which may lead to water leakage.
Page 12 Cleaning the Pre-Filter Screen For optimum performance, it is recommended to clean the Air Inlet Frame & Pre-Filter Screen once every two (2) weeks. From the back of the unit, grasp the Air Inlet Frame Groove and pull it outwards to remove the Air Inlet Frame & Pre-Filter Screen from the unit. Remove Air Inlet Frame &...
Page 13 300 ft or 28 m • Exceed extraction capacity • Maximum extraction capacity for ND298 is 12 Litres/Day at 30 80% RH. • The surrounding humidity level is lower • Set the desired RH% lower than than the desired humidity level set.
Page 14 SAFETY PRECAUTIONS DO NOT pull or tug the unit by Keep the unit away from Refrain from placing the the power cord to prevent flammable liquids. dehumidifier in confined closets. safety hazards or damage to the unit. DO NOT insert any foreign For maximum efficiency, ensure Keep the unit away from objects into any crevices of...
Page 15 Service Trekking* With everyone’s busy schedule, it’s sometimes hard to keep track of everything. Sit back, relax and leave the fussing to us. Instead of calling and checking up on the status of your product, let novita keeps you updated.
Page 16 negligence.
Page 17 HumiControl™ Dehumidifier ND298 NEXT 12 MONTHS STANDARD EXTENDED S$60/Unit LIMITED WARRANTY T & C Updates Commission/Effective from 08 Dec 2023 • All Information is accurate at the point of print. novita reserves all rights to update the information without prior notice.
