Novita ND388R Operating Instructions And E-Warranty Application

Hide thumbs

Advertisement

Quick Links

Download this manual

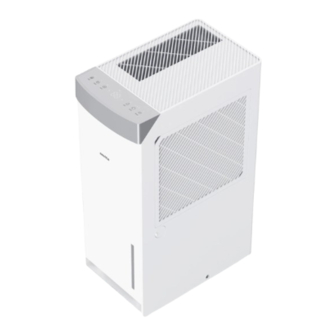

DEHUMIDIFIER
ND388R
PRODUCT FEATURES
AUTO
PREFERRED
HUMIDITY
HUMIDITY
SENSOR
SETTING
ROTARY
CFC FREE
COMPRESSOR
REFRIGERANT
AUTO STOP
EASY ROLL
WITH FULL
CASTORS
TANK INDICATOR
OPERATING INSTRUCTIONS AND E-WARRANTY APPLICATION
Please read instructions before using the Dehumidifier
TIMER
CONTINUOUS
DRAINAGE
OPTION
SLIM
& HANDY
HUMICONTROL
S A F E G U A R D I N G V A L U A B L E S E R I E S
TM

Advertisement

loading
Need help?

Need help?

Do you have a question about the ND388R and is the answer not in the manual?

Questions and answers

Related Manuals for Novita ND388R

Summary of Contents for Novita ND388R

  • Page 1 HUMICONTROL S A F E G U A R D I N G V A L U A B L E S E R I E S DEHUMIDIFIER ND388R PRODUCT FEATURES AUTO TIMER PREFERRED HUMIDITY HUMIDITY SENSOR SETTING ROTARY CFC FREE...

  • Page 2: Table Of Contents

    LIMITED WARRANTY EXTENSION - EXTENDED WARRANTY This product includes: • novita Dehumidifier ND388R • novita Dehumidifier ND388R Operating Instructions & e-Warranty Application (e-copy) • Starter Guide * Please contact us immediately if any of the above-mentioned items are not included.

  • Page 3: Product Description

    PRODUCT DESCRIPTION Dehumidifier ND388R Control Panel 2-In-1 Air Inlet Frame & Pre-Filter Screen Continuous Drainage Port Easy Roll Castor Power Cord & Plug Carrying Handle Water Tank Compartment Pre-Mesh Filter (Optional) Water Tank Handle Water Tank Water Level Indicator CONTROL PANEL DESCRIPTIONS...

  • Page 4: Technical Specifications

    TECHNICAL SPECIFICATIONS Rated Power 320 Watts (30 C/80% RH) Max. Consumption 385 Watts (35 C/90% RH) Extraction Rate 25L/Day (30 C/80% RH) Voltage/Frequency 220-240V/50Hz Humidity Setting Available Auto Humidity Sensor Available Easy Roll Castors Available Running Temperature C to 35 Compressor Rotary Refrigerant/Charge Limit...

  • Page 5: Features

    FEATURES Auto-Humidity Sensor Inbuilt hygrostat detects the humidity level of the surrounding and compares it to the humidity level set. The compressor stops operation when the desired humidity level is achieved, and the unit’s fan motor continues to run for about 3 minutes before coming to a stop for energy conservation. Compressor and fan motor will reactivate when humidity level of the surrounding surpasses the desired humidity level by 2% RH.

  • Page 6: Timer Function

    Timer Function At On Mode, the unit can be programmed with a timer from 01 to 24 hours at an interval of 1 hour for an automatic shutoff. Timer indicator illuminates when timer function is activated. Childlock To guard against curious kid, unit is equipped with a childlock function to prevent mishandling/misactivation by young children who may change the operation unintentionally.

  • Page 7: Room Humidity Display

    Room Humidity Display The display screen also shows the relative humidity level of the room/surrounding for user easy reference and to facilitate the humidity level adjustments accordingly to individual preference. Defrost Mode Defrost mode will auto activate when the sensor detects the temperature of the evaporator to be ≤2°C, the compressor will continue to operate for 30 minutes before coming to a stop while fan motor continue to operation and the display screen will show “HS”.

  • Page 8: Continuous Drainage Option

    Stable & Level Surface Obstruction-Free USING THE NOVITA DEHUMIDIFIER Setting Up 01. Remove all packaging materials and place the unit on a dry, stable and level surface. • DO NOT remove the polystyrene from the water tank.

  • Page 9: Operating Notes

    Operating Notes 01. Power Control Touch the button once to turn on the unit. By default, unit runs on Continuous Dehumidification with low fan speed, and its corresponding light indicators illuminate. • To turn off the unit, touch the button once again. •...

  • Page 10: Emptying The Water Tank

    EMPTYING THE WATER TANK novita Dehumidifier ND388R shut off automatically when the water tank is full and its corresponding indicator illuminates. Follow the simple steps below to empty the water tank. • If the water tank is removed or not installed properly, the above phenomenon will appear.

  • Page 11: Months* Pre-Mesh Filter Replacement

    ◊ 6 MONTHS* PRE-MESH FILTER REPLACEMENT For an optimum HumiControl™ performance, it is recommended to replace the Pre-Mesh Filter ◊ once every 6 months* from initial usage. ◊ Pre-Mesh Filter is an optional product accessory and can be purchased separately. * Based on average 8 hours a day, 7 days a week usage under normal domestic indoor environment.

  • Page 12: Cleaning & Maintenance

    CLEANING & MAINTENANCE Cleaning the novita Dehumidifier It is important to conduct service maintenance of the Front Right Side unit at least once a week to ensure unit optimum performance and to prevent dust/dirt built up at the continuous drainage outlet port and water float sensor, which may lead to water leakage.

  • Page 13: Troubleshooting

    • Water tank not placed properly. • Remove water tank and replace it into the unit again. • Power plug or cord damaged. • Contact novita Customer Care Centre. Fan not working • Motor may be malfunction. • Contact novita Customer Care Centre.
  • Page 14 • Faulty coil temperature sensor or • Turn off the unit and power on again message E1 associated circuit. If error code persists, contact novita Customer Care Centre. Error code message • The ambient temperature is detected to be • Turn off the unit and power on again ≥42°C for ≥60 seconds.

  • Page 15: Safety Precautions

    DO NOT insert any foreign For maximum efficiency, ensure Keep the unit away from DO NOT block the air inlet &...

  • Page 16: Safety Instructions

    Before moving the unit • Repairs of appliance should only be done by qualified service technicians from novita. Improper repair work can cause considerable danger to the user. DO NOT replace the power cord without authorization or connect the power cord midway or use it in parallel with other high power electrical appliances.

  • Page 17: Novita Customer Service Guarantee

    Service Trekking* With everyone’s busy schedule, it’s sometimes hard to keep track of everything. Sit back, relax and leave the fussing to us. Instead of calling and checking up on the status of your product, let novita keeps you updated.

  • Page 18: Limited Warranty Terms & Conditions

    negligence.

  • Page 19: Limited Warranty Extension - Extended Warranty

    HumiControl™ Dehumidifier ND388R NEXT 12 MONTHS STANDARD EXTENDED S$90/Unit LIMITED WARRANTY T & C Updates Commission/Effective from 08 Dec 2023 • All Information is accurate at the point of print. novita reserves all rights to update the information without prior notice.
  • Page 20 COPYRIGHT © 2023 NOVITA SG SV/M/ND388/V1...
