Ryobi P743 Manual

18 VOLT POWER
SOURCE
P743
WARNING:
Read all safety warnings, instructions, illus-
trations and specifications provided with this
power tool. Failure to follow all instructions
listed below may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for future
reference. The term "power tool" in the warnings
refers to your mains-operated (corded) power tool
or battery-operated (cordless) power tool.
WORK AREA SAFETY
 Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
 Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
 Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
ELECTRICAL SAFETY
 Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets
will reduce risk of electric shock.
 Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of
electric shock if your body is earthed or grounded.
 Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
 Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
 When operating a power tool outdoors, use
an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces
the risk of electric shock.
 If operating a power tool in a damp location
is unavoidable, use a ground fault circuit
interrupter (GFCI) protected supply. Use of a
GFCI reduces the risk of electric shock.
 Use this product only with batteries and char-
gers listed in tool/appliance/battery pack/
charger correlation supplement 987000-432.
PERSONAL SAFETY
 Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcohol or med-
ication. A moment of inattention while operating
power tools may result in serious personal injury.
 Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
 Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
with your finger on the switch or energizing power
tools that have the switch on invites accidents.
 Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool
may result in personal injury.
 Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
 Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewelry
or long hair can be caught in moving parts.
 If devices are provided for the connection of
dust extraction and collection facilities, en-
sure these are connected and properly used.
Use of dust collection can reduce dust-related
hazards.
 Do not let familiarity gained from frequent
use of tools allow you to become complacent
and ignore tool safety principles. A careless
action can cause severe injury within a fraction
of a second.
 Do not wear loose clothing or jewelry. Contain
long hair. Loose clothes, jewelry, or long hair can
be drawn into air vents.
 Do not use on a ladder or unstable support.
Stable footing on a solid surface enables better
control of the power tool in unexpected situations.
POWER TOOL USE AND CARE
 Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
 Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
 Disconnect the plug from the power source
and/or remove the battery pack, if detach-
able, from the power tool before making
any adjustments, changing accessories, or
storing power tools. Such preventive safety
measures reduce the risk of starting the power
tool accidentally.
 Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are dan-
gerous in the hands of untrained users.
 Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tool's operation. If
damaged, have the power tool repaired be-
fore use. Many accidents are caused by poorly
maintained power tools.
 Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
 Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
 Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles
and grasping surfaces do not allow for safe
handling and control of the tool in unexpected
situations.
BATTERY TOOL USE AND CARE
 Recharge only with the charger specified by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fire
when used with another battery pack.
 Use power tools only with specifically desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and fire.
 When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from
one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
 Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If
contact accidentally occurs, flush with wa-
ter. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery
may cause irritation or burns.
 Do not use a battery pack or tool that is
damaged or modified. Damaged or modified
batteries may exhibit unpredictable behavior
resulting in fire, explosion or risk of injury.
 Do not expose a battery pack or tool to fire
or excessive temperature. Exposure to fire or
temperature above 265°F may cause explosion.
 Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specified in the instruc-
tions. Charging improperly or at temperatures
outside the specified range may damage the
battery and increase the risk of fire.
SERVICE
 Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
 Never service damaged battery packs. Service of
battery packs should only be performed by the
manufacturer or authorized service providers.
INSTALLING/REMOVING BATTERY
PACK
See Figure 1.
 To install: insert a battery pack into the power
source as shown. Make sure the latches on the
battery pack snap into place and the battery pack
is secured in the power source before beginning
operation.
 To remove: depress the latches on the battery
pack.
USING THE POWER SOURCE WITH A
USB DEVICE
See Figures 1 - 2.
WARNING:
The power source is not intended for any use
other than charging small (up to 2.1 Amp) USB
electronics. Any other use may result in risk of
fire.
When a battery pack is installed, the USB ports on
the power source supply a 5 Volt DC, up to 2.1 Amp
charging site for your cell phone, MP3 player, or other
small (up to 2.1 Amp) USB device. Simply connect
a USB cable (not provided) from your device to the
desired USB port on the power source to charge.
NOTE: The top USB port is 2.1 Amp and the bottom
USB port is 1.0 Amp. Recharge time is affected by
which port is selected. The upper port will recharge
at a faster rate than the lower port, and is the better
choice for larger items such as computer tablets.
Place the power source on a flat surface during
operation.
 Insert a battery pack into the power source.
 Plug the USB cable into the power source and
into your USB device.
 Press the on/off button on the power source.
 The power source has an internal timer that
keeps the unit active for approximately 8 hours
of use. The timer starts when the on/off button
is pressed.
 When the timer stops, the power source shuts off,
the charging process will stop, and the battery
pack will enter sleep mode.
 To reactivate the power source, press the on/off
button.
 To deactivate the power source, press the on/
off button or remove the battery pack.
NOTE: Charging time is dependent upon the
level of charge in the battery pack when it is
inserted into the power source and which USB
port is chosen.
This product has a
Three-year Limited Warranty.
For details, please go to
www.ryobitools.com
or call (toll free) 1-800-525-2579.

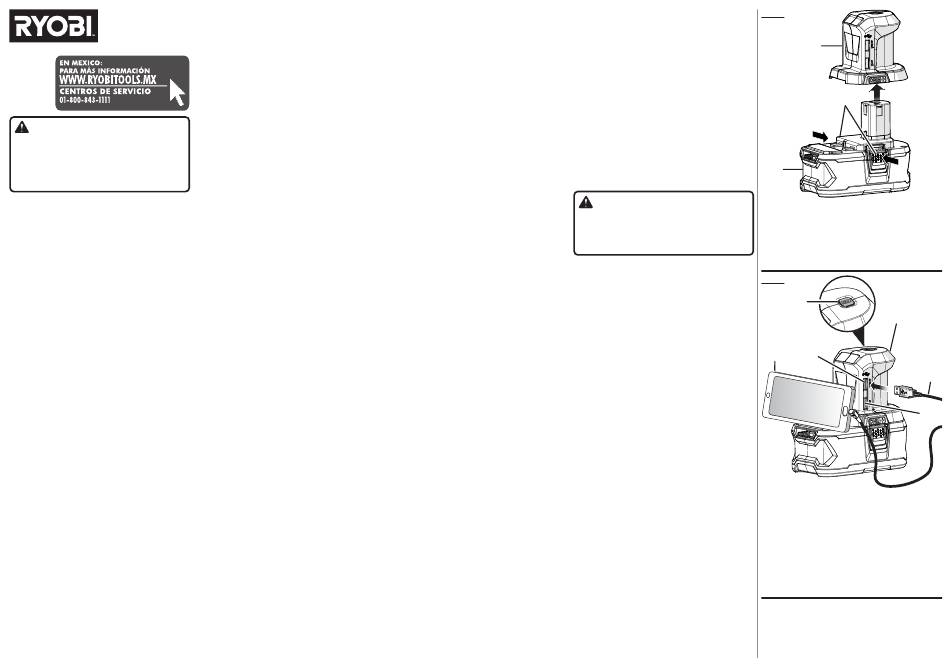

Fig. 1
C
B
A
A - Battery pack (not included) [bloc-piles (non inclus),
paquete de baterías (no suministrado)]
B - Depress latches to release battery pack (appuyer sur
les loquets pour libérer le bloc-piles, para soltar el
paquete de baterías oprima los pestillos)
C - Power source (bloc d'alimentation, fuente de
alimentación)
Fig. 2
F
A
B
D
E
C
A - Power source (bloc d'alimentation, fuente de
alimentación)
B - 2.1 Amp USB port (port USB de 2,1A, puerto USB de
2,1A)
C - 1 Amp USB port (port USB de 1A, puerto USB de 1A)
D - USB device (not included) [dispositif USB (non
inclus), dispositivo USB (no suministrado)]
E - USB cable (not provided) [câble USB (non fourni),
cable USB (no suministrado)]
F - On/off button (bouton de marche / arrêt, botón de
encendido/apagado)
ONE WORLD TECHNOLOGIES, INC.
P.O. Box 1288, Anderson, SC 29622, USA
1-800-525-2579  www.ryobitools.com
995000470
12-16-19 (REV:02)
