- Page 1 Manual LBF60-POE Ikan Lyra PoE Frensel Light Series www.ikancorp.com sales@ikancorp.com - 1 -...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction 1.1 Overview 1.2 Key Features 1.3 Package Contents (What’s Included) 2. Safety Information 2.1 General Safety Guidelines 2.2 Electrical Safety 2.3 Maintenance and Cleaning 2.4 Environmental Considerations 2.5 Compatible Cables 3. Specifications 3.1 LBX8-POE Specifications 3.2 LBX10-POE Specifications 4. -
Page 3: Introduction

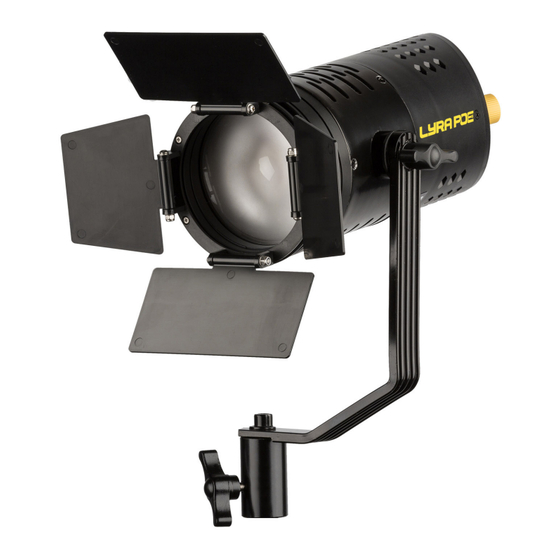

1. Introduction 1.1 Overview The Ikan LBF60-POE is a PoE-powered Fresnel light, designed for professional settings such as studios or stages. Like its panel counterpart, it operates using a single Ethernet (RJ45) cable for both power and DMX control, thanks to its PoE++ compatibility. Featuring a Fresnel lens design, the LBF60-POE offers two beam angle options: 30 and 60 degrees, providing flexibility for various lighting requirements. -
Page 4: Maintenance And Cleaning
2.3 Maintenance and Cleaning • Disconnect the light from the power source before cleaning. • Use a soft, dry cloth for cleaning; do not use solvents of abrasive materials. 2.4 Environmental Considerations • Dispose of the light and packaging in accordance with local regulations. •... -
Page 5: Powering On And Off
4.3 Powering On and Off • Connect the Cat6 or better cable to the light and a compatible PoE++ power source. • Flip the switch to the on position. • The light will take up to 5 seconds to boot up. The screen flashing white is a normal indication that the light is turning on. -
Page 6: Operation
6. Operation - 6 -... -
Page 7: Intensity Control
6.1 Intensity • Adjust the brightness to achieve the desired illumination level. The light can be set from 0-100%, increasing and decreasing by increments of 1%. 6.2 CCT (Color Temperature) • Adjust the color temperature between 2700K and 6500K. 6.3 DMX Address •... -
Page 8: Net State (Art-Net, Sacn, Ip Address)
6.4 Net State: • Turns on the usage of DMX over IP protocols Art-Net or sACN. Once one of these are selected, select the following: IP: IP address of the light. The light can be set as the following: 192.168.xxx.xxx 172.xxx.xxx.xxx 10.xxx.xxx.xxx IP Mode: Set either DHCP or Static... -
Page 9: Maintenence
7. Maintenance 7.1 Cleaning and Care • Clean the light with a soft, dry cloth. Avoid using solvents or abrasive materials. 7.2 Storage Guidelines • Store the light in a dry, cool environment. Disconnect from power during extended periods of use. 8. -
Page 10: Warranty And Support
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company. • Damage caused by natural disaster, abnormal voltage, and environmental factors, etc. ©2024 Ikan International. All rights reserved. - 10 -...
