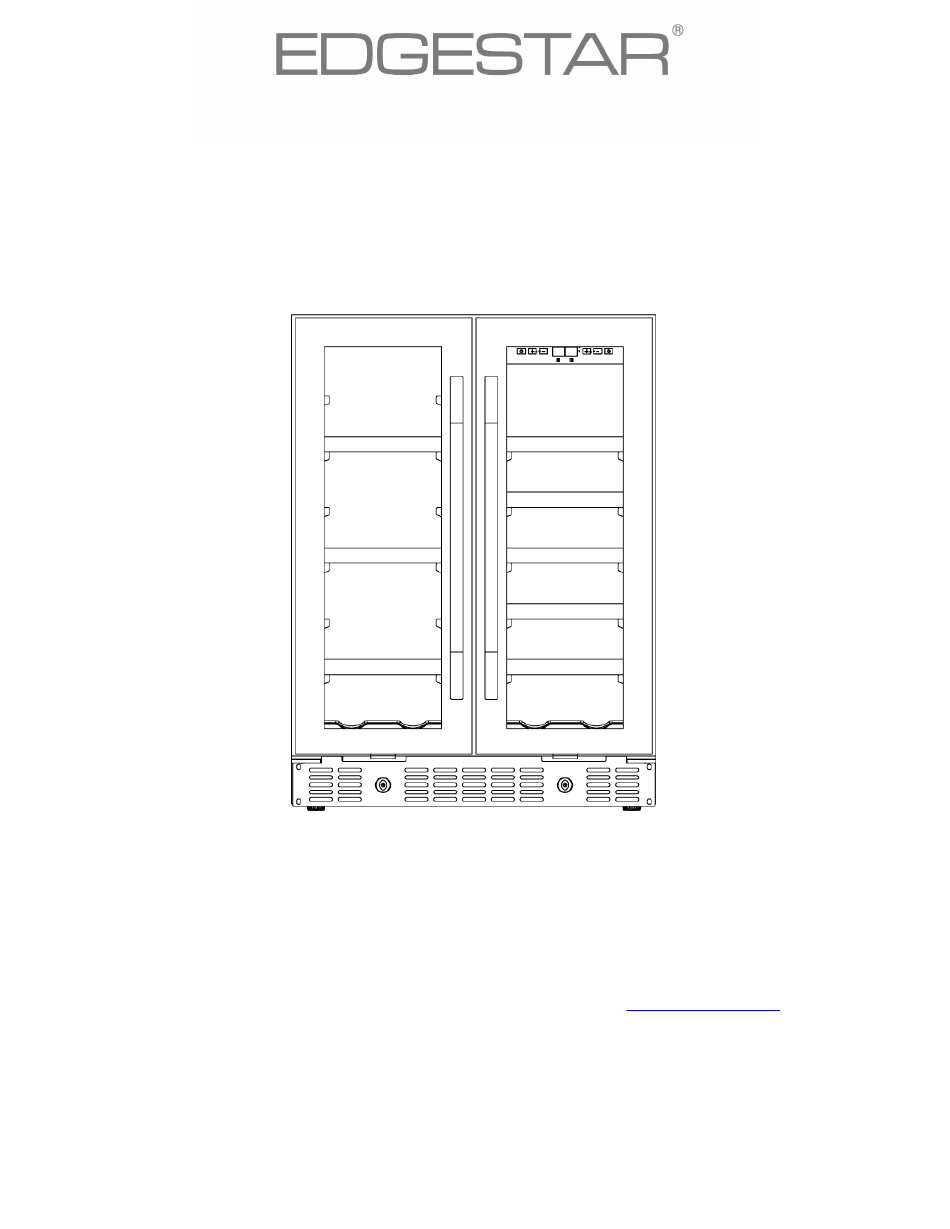

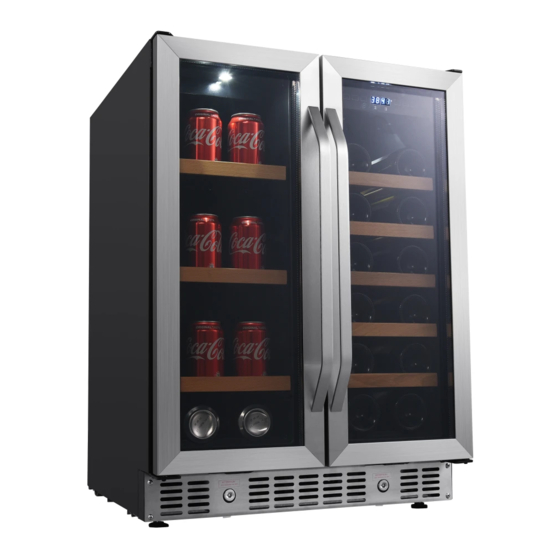

- Page 1 Built-In Wine and Beverage Refrigerator CWB1760FD Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com V2.2 01152020...
- Page 2 Important Safety Information Improper handling can cause serious damage to the EdgeStar refrigerator and / or injury to the user. This refrigerator is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. Any other use may invalidate the warranty. Please review the ratings label located on the inside of the unit in the lower left corner for electrical and other technical data related to this unit.
- Page 3 General Safety • To prevent injuries, use at least two people to move and install the beverage refrigerator. • Install the beverage refrigerator zin a well-ventilated area where the ambient temperature is above 50° F and below 90° F. • The temperature range for this refrigerator is optimized for beverage storage. Perishable food items may require a different storage environment.
-
Page 4: Table Of Contents
ORMAL OUNDS Temperature Alarm ..............................12 ................................13 EFROSTING ......................13 REPARING THE EFRIGERATOR FOR TORAGE CLEANING AND MAINTENANCE ......................... 14 ..............................14 XTERIOR LEANING ..............................14 NTERIOR LEANING TROUBLESHOOTING ............................15 SPECIFICATIONS ..............................17 EDGESTAR LIMITED WARRANTY ........................18... -
Page 5: First Time Operating Instructions
The instruction manual should be read before use. Introduction Thank you for purchasing this EdgeStar refrigerator. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the customer support and exemplary products necessary to nurture that relationship. -
Page 6: Parts Identification
Parts Identification Front View Tip: Gather the model and serial number from the product label and write them down before installing the refrigerator. -
Page 7: Installing The Refrigerator
Installing the Refrigerator The refrigerator should be installed in accordance with local electrical code requirements. The refrigerator should also be placed in a location that is strong enough to support its total weight, keeping in mind that it will weigh substantially more when fully loaded than when empty. Before you plug the refrigerator into a power supply, be sure to let it stand upright for at least 24 hours to allow the compressor’s oils to settle. -
Page 8: Installation Clearance Requirements
Installation Clearance Requirements Important Notes • Choose a location that has ambient temperatures above 50° F and below 95° F. Operation outside these temperatures may result in lowered efficiency or cause other adverse effects. • This unit MUST be installed in an area protected from the elements, e.g. wind, rain, water spray or drips. -
Page 9: Electrical Requirements
Electrical Requirements ELECTRIC SHOCK HAZARD! • Plug into a grounded 3-prong outlet. • Never remove the grounding prong from the plug. • Never use an adapter to bypass the grounding prong. • DO NOT use an extension cord. • Failure to follow these instructions can result in fire, electrical shock, or death. Before you move your refrigerator into its final location, it is important to make sure you have the proper electrical connection: A standard electrical supply (115 V, 60Hz), properly grounded in accordance with the National... -
Page 10: Installing The Door Handle
Installing the Door Handle To install the door handle: Remove the door gasket (1) on the side you wish to install the handle. You can see two designated holes for handle installation. Install the handle (4) tightly as shown above with two screws (3) and flat washers (2) provided. -
Page 11: To Remove The Wine Shelves
To Remove the Wine Shelves Open the right door completely. If necessary, make sure you remove all the contents sitting on the shelf. Pull the shelf forward until the notch aligns with the plastic posts on each side of the shelf track. -
Page 12: Using The Temperature Control Panel
Using the Temperature Control Panel Left Zone Right Zone Each zone is independently controlled by the touchpad controls located in the interior of the right cabinet zone (pictured above). The temperature display can be in Fahrenheit or Celsius. The right (wine) zone has a temperature range from 41°F to 68°F. The left (beverage) zone has a temperature range from 36°F to 43°F. -
Page 13: Advanced Functions
Advanced Functions Sabbath Mode This unit is equipped with Sabbath mode for the observance of religious holidays. This mode turns off the display, interior light and the alarm. To enable Sabbath mode, press and hold the buttons for five (5) seconds. -
Page 14: Defrosting
Defrosting The refrigerator will automatically defrost under most temperature settings and ambient conditions. However, on colder settings, some frost may build up. Additionally, under more humid ambient conditions, more frost may build up. Keep the door closed as much as possible and avoid opening the door unnecessarily to minimize frost build-up. -
Page 15: Cleaning And Maintenance
Cleaning and Maintenance Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life. Exterior Cleaning The door and cabinet may be cleaned with a mild detergent and lukewarm water solution. Do not use solvent based or abrasive cleaners. Use a soft sponge and rinse with clean water. Wipe with a soft clean towel to prevent water spotting. -
Page 16: Troubleshooting
Troubleshooting Before Calling for Help If the unit appears to be malfunctioning, read through the “Operation” section of this manual first. If the problem persists, check the Troubleshooting Guide below and on the following page. The problem may be something that can easily be solved or explained. Symptoms Possible Causes Solutions... - Page 17 Symptoms Possible Causes Solutions The body of the refrigerator is The unit is not grounded Contact your local electrician electrified. properly. to test your electrical grounding system. Frost is forming in the The environment is humid. Though the unit uses an “auto-defrost”...
-
Page 18: Specifications
Note: Technical data and performance information are provided for reference only. Specifications are subject to change. Check the rating label on the refrigerator for the most accurate information. Description of product Built-in Wine and Beverage Refrigerator Model CWB1760FD Voltage / Frequency AC 115V~60Hz Amperage 1.0A Input Power 100W Color Black Cabinet;... -
Page 19: Edgestar Limited Warranty
WHAT IS COVERED: For a period of ONE (1) YEAR from the date of original retail purchase, EdgeStar will repair or replace any part free of charge including labor that fails due to a defect in materials or workmanship. Labor will be performed free of charge at an authorized EdgeStar repair facility and EdgeStar will supply new, rebuilt, or refurbished parts free of charge.
