Specifications

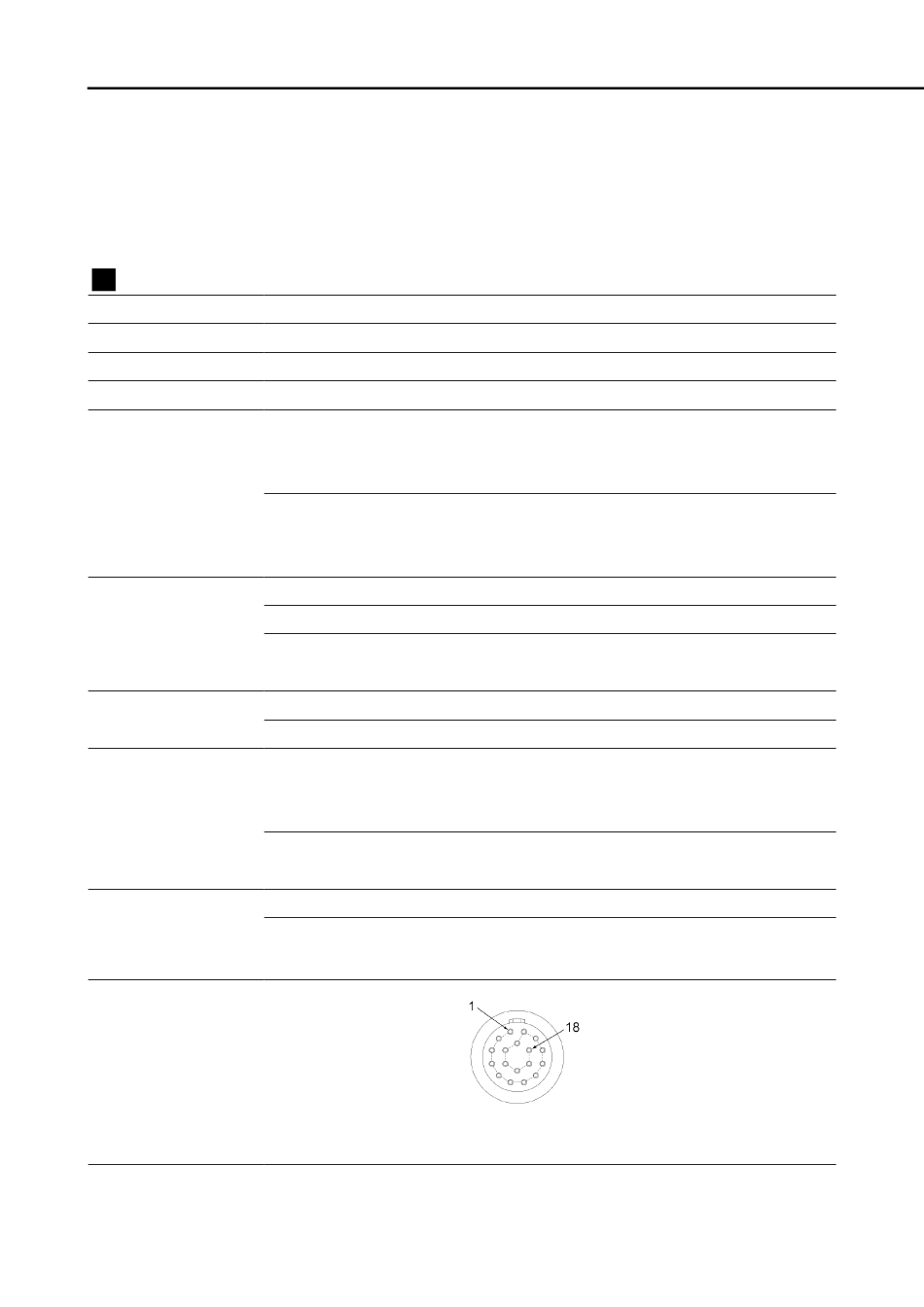

PORT 1 to 4 connector
Application
Model
Compatible plug
ETHER
SYNC OUT
DC OUT
TRIG OUT
EPO/ARM Status IN
PWRCNT OUT
Pin Configuration
Connect the Q1m/Q1v camera ant the Q5 with the Q-Cam remote cable
LEMO EGA.2B.318
LEMO FGA 2B.318
1000BASE-T (IEEE802.3ab), isolation
5VCMOS output, isolation
Signal level:
● IRIG B DCLS output
● EST output
Set to EST mode, H -> L to start exposure when in the
Function:
ARM or REC mode and film a single image
Signal level saved with the image during EVENT input
Power voltage: DC 30V
Power supply:
30W
Power
Overcurrent Internal protection circuit About 2A
protection:
Signal level:
5V CMOS output, isolation
Function:
Trigger enabled with H -> L
TTL level, 5V pullup, isolation
Signal Level:
L level: -0.5VDC (minimum applied voltage) to 0.8VDC
H level: 2.0VDC to 5.5VDC (maximum applied voltage)
Descending(H -> L): Start exposure
Function:
Ascending(L -> H): End exposure
Signal level:
Switch circuit, isolation
Open (Maximum allowable voltage 5.5V): Power ON
Function:
Short: Power OFF
From the connector mating side
6-30
(00375)H
