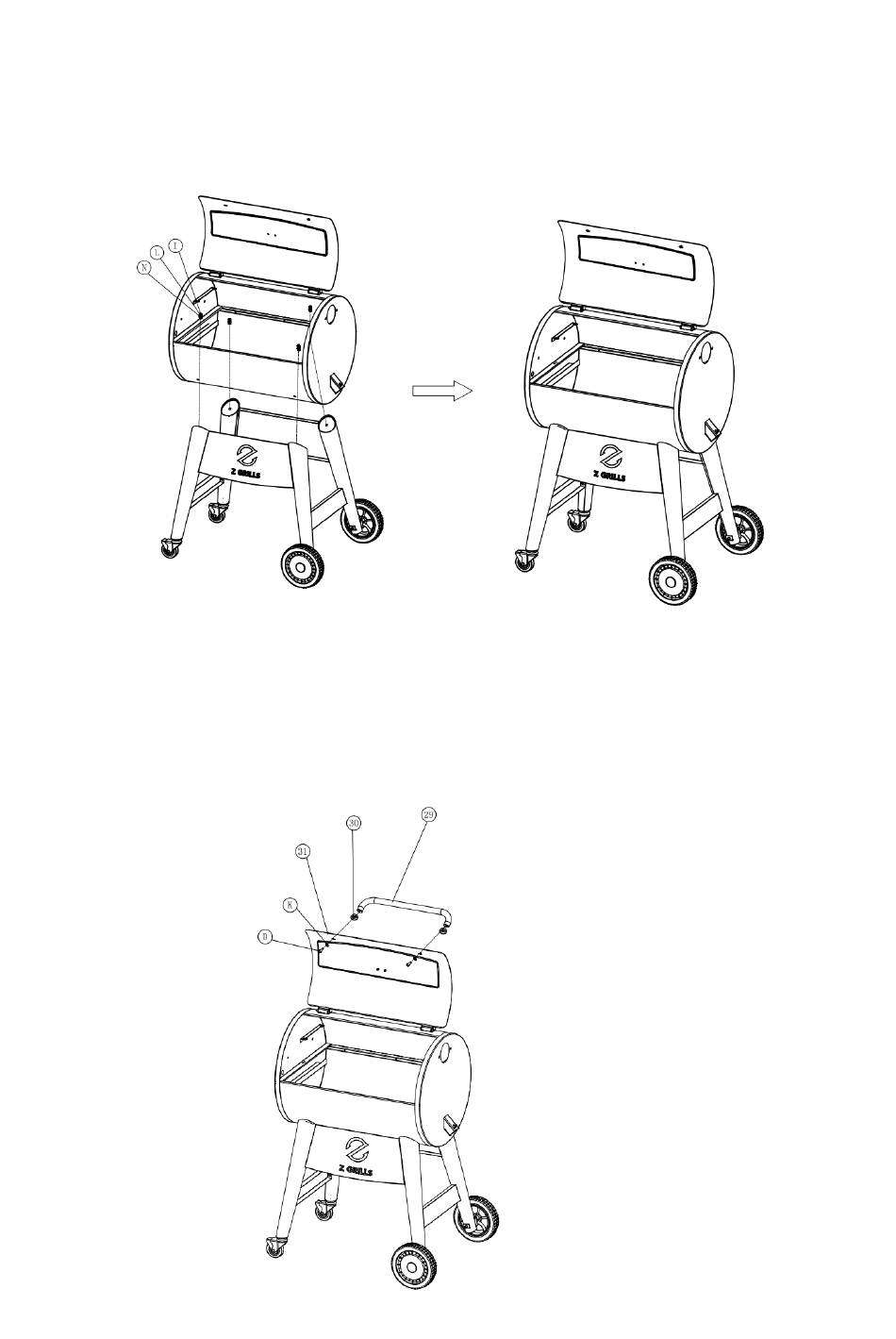

3. POSITIONING THE CHAMBER ON THE BODY FRAME
Lift up the Chamber (4) on the Body Frame. Align the Chamber holes with the Frame holes
and secure with Bolt (L), Spring Washer (N) and Gasket (I) in order, as shown.
4.ATTACHING THE CHAMBER LID HANDLE
Use a wrench to remove the bolts that have been assembled in the lid handle.
Insert Hexagon Bolt through Gasket (K) and Lid Handle Guide (30) directly to the Lid
(31) and Handle (29), then tighten up. Do not over-tight.
