Takstar V1 User Manual

Wireless video microphone
Hide thumbs Also See for V1:

Advertisement

Table of Contents

Wireless Video Microphone

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Takstar V1

Summary of Contents for Takstar V1

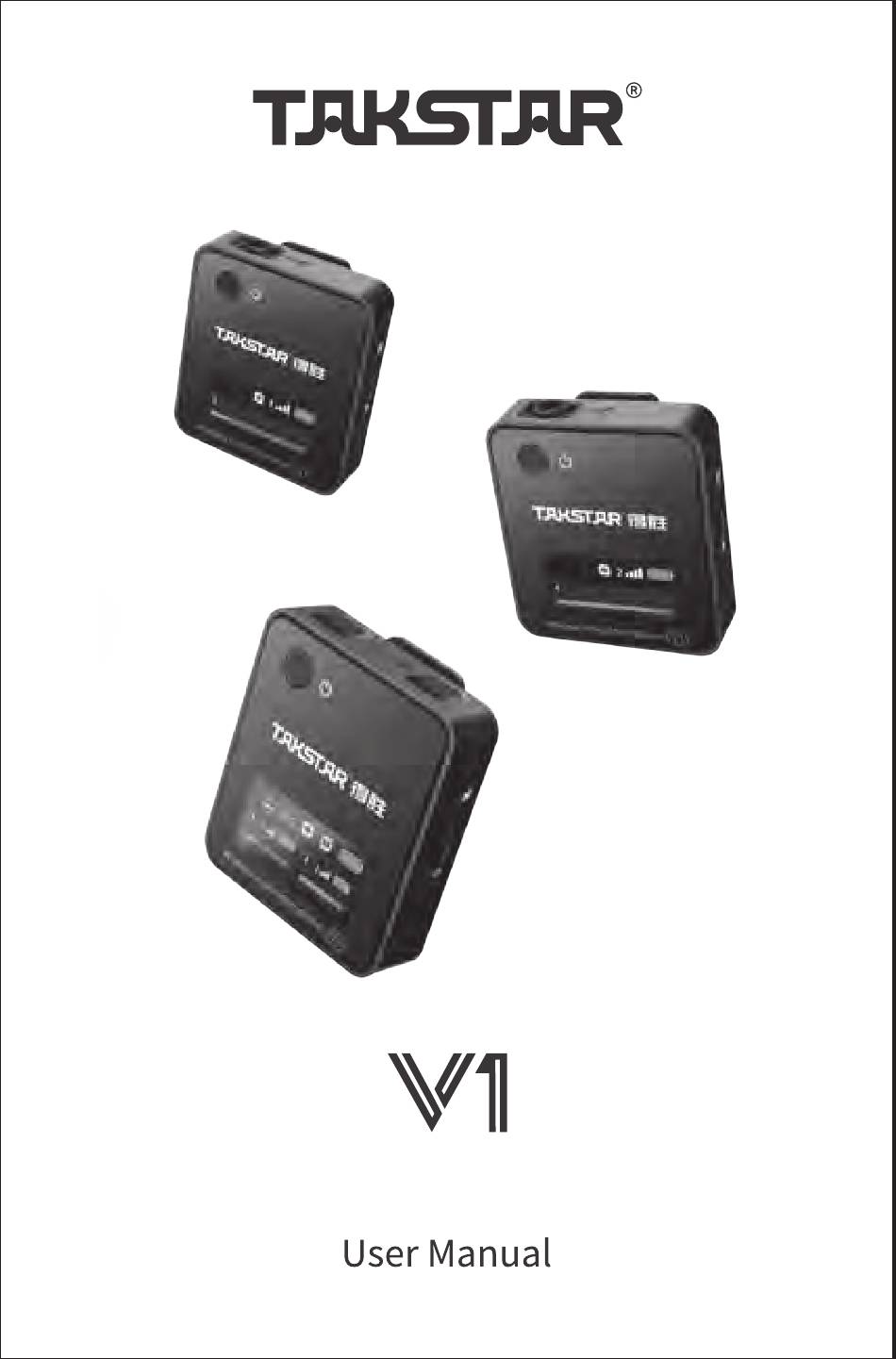

  • Page 1 Wireless Video Microphone...
  • Page 2 Wireless Video Microphone Preface Dear Customer, Thank you for purchasing Takstar V1 Wireless Video Microphone. To better understand and use the product, please read this manual thoroughly. If you have any questions or suggestions, please contact our local sales outlet.

  • Page 3: Specifications

    Wireless Video Microphone Specifications Transmitter • Modulation Type: Frequency Hopping/Digital FSK • Transmit Power: 10dBm • Antenna Type: Ceramic Antenna • Mic Pickup Pattern: Omnidirectional (Built-in mic and external lapel mic) • Display Type: TFT • Input Interface: Ø3.5mm TRS •...

  • Page 4: Function Descriptions

    • Signal-to-Noise Ratio: 82dB (circuit performance) • Max Input Sound Pressure: 97dB SPL (Built-in mic) • Pairing Method: Automatic • Effective Range: 50 meters (in open areas) Note: The above data are measured by Takstar laboratory which has the final interpretation right! Function Descriptions Receiver ③...
  • Page 5 Wireless Video Microphone ① Power Button: Press and hold for 2 seconds to turn on/off the receiver. While powered on, double-click to toggle between mute and unmute modes. While powered off, press and hold for 7 seconds to enter pairing mode. ②...
  • Page 6 Wireless Video Microphone Receiver Display Screen ① ② ③ ④ ⑥ ⑧ ⑤ ⑦ ⑨ ① dB Volume Display: Shows three volume levels: 0dB, 5dB, and 10dB. The volume bar is gray when set to 0dB, half blue when set to 5dB, and fully blue when set to 10dB.
  • Page 7 Wireless Video Microphone ⑥ Channel Indicator: Displays the channel of the transmitter. When using two transmitters simultaneously, one is assigned to Channel 1, and the other to Channel 2. When pairing with a single transmitter, Channel 1 is prioritized for pairing. ⑦...
  • Page 8 Wireless Video Microphone Transmitter ③ ⑥ ① ④ ⑤ ② ① Power Button: Press and hold for 2 seconds to turn on/off the transmitter. While powered on, double-click to toggle between mute and unmute modes. While powered off, press and hold for 7 seconds to enter pairing mode.
  • Page 9 Wireless Video Microphone Transmitter Display Screen ① ② ③ ④ ⑤ ⑥ ① Noise Reduction Icon: appears when enabled and disappears when disabled. ② Channel Indicator: Displays the channel of the transmitter. When using two transmitters simultaneously, one is assigned to Channel 1, and the other to Channel 2.

  • Page 10: Pairing Method

    Wireless Video Microphone Shows a lightning symbol while charging, and turns green in full bars when fully charged. ⑤ Mic Status: indicates that the mic is muted, and indicates unmuted. ⑥ Mic Volume Meter: Shows the real-time volume level of the transmitter. If the volume is too high and causes distortion, the volume meter will jump to red at the end.
  • Page 11 Wireless Video Microphone 3. Pairing is successful once both the receiver and transmitter screens display "Pairing successful", as shown below. 4. If the receiver or transmitter displays "Pairing failed", please retry the afore pairing steps. 5. Both mics are shown as TX. They have memory function, which retains the pairing settings from the previous power cycle.
  • Page 12 Wireless Video Microphone 2. Using an External Mic Insert the plug of the Ø3.5mm lapel mic into the mic input interface of the transmitter. Clip the transmitter to your belt and attach the lapel mic on the collar.
  • Page 13 Wireless Video Microphone 3. Connection with Audio Interface Use the included 3.5mm audio cable. Connect one end to the audio output port on the receiver, and the other end to the 3.5mm mic input on your audio interface. This will route the audio output to the audio interface.
  • Page 14 2) Swipe down the upper right corner of the phone screen to access the settings interface. Then, tap the window with the icon in the upper right corner. 3) Check if the speaker device is TAKSTAR V1 in the dialog box. If it is, connection is successful, as shown.
  • Page 15 Wireless Video Microphone Note: You can charge both the receiver and your phone while simultaneously using the devices, by connecting a Takstar C2-5 OTG data cable (not included) as shown below. Phone Power Bank Receiver C2-5 OTG Cable...
  • Page 16 Wireless Video Microphone Android System 1) Attach the receiver to the phone holder using the belt clip. Connect the receiver to the phone using the provided Android OTG cable. 2) This wireless video mic is compatible with most Android smartphones with OTG function.
  • Page 17 Open Sound Settings. 3) Click Sound Control Panel to access the Sound settings. Then, select the Recording tab and set TAKSTAR V1 as the default device. Speak into the transmitter mic to test if the mic is working properly, the volume bar should fluctuate as you speak.

  • Page 18: Safety Instructions

    Wireless Video Microphone Safety Instructions To avoid electric shock, overheat, fire, radiation, explosion, mechanical risk and injury or property loss due to improper use, please read and observe the following items before use: 1. Please check if the power of the connected equipment matches with that of this product before operation.

  • Page 19: Label Meanings

    Wireless Video Microphone Label Meanings This device is compliant with the limits of the European Council Directive on the approximation of the laws of the member states relating to electromagnetic compatibility according to RL2004/108/EG and European Low Voltage Directive RL2006/95/EG. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 20: About This Manual

    This manual contains up-to-date technical specifications as of printing. However, specifications contained herein may not conform to your particular product since Takstar is constantly improving its products. Also, specifications, devices or accessories available may vary from region to region. If you have any questions, please contact our local sales outlet.
