SETTING UP THE 4948F1

1) Prepare a suitable location for your new fountain.

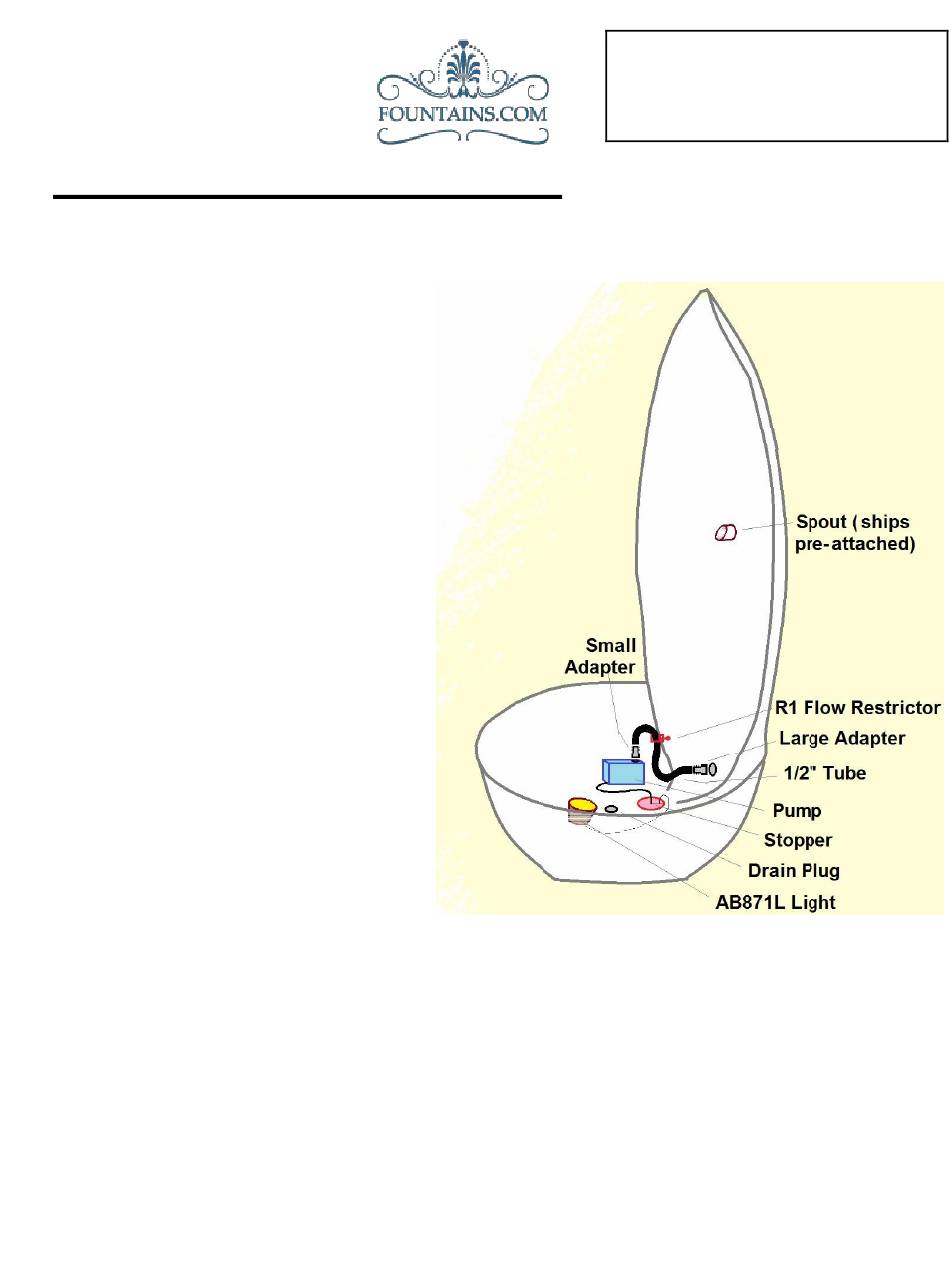

2) Set the pump and the light inside the

fountain basin. Push their power

cords down through the largest hole in

the fountain floor – then tip the

fountain just enough to grasp the

power cords underneath and pull them

toward your power supply. Leave

enough slack in the cords that allows

you to make adjustments inside the

fountain.

3) The rubber stopper provided has a slit

and two preformed holes. Open the

slit and install the stopper around the

pump cord (in the larger hole) and the

light cord, near the floor of the

fountain basin. Close the slit and

press firmly into the large hole in the

basin floor as shown.

4) Thread the small adapter into the top

of the pump. Thread the larger

adapter into the hole under the

fountain spout, as shown

5) Place the R1 Flow Restrictor on the middle of the tube and tighten it just enough so it holds in

place. Then push each end of the tube over barbs of the two adapters.

6) Fill the basin with water. Read your pump and light instructions. Connect the light power cord

to its provided transformer. Plug the transformer and pump into your power source to start the

fountain.

Make sure to place your fountain on a firm

area which will not settle. Note: Always

follow local electrical codes and use a

110V GFCI protected outlet.

Need help?

Do you have a question about the 4948F1 and is the answer not in the manual?

Page 1 Note: Always follow local electrical codes and use a 110V GFCI protected outlet. SETTING UP THE 4948F1 1) Prepare a suitable location for your new fountain. 2) Set the pump and the light inside the fountain basin.
Page 2 7) If the pump does not immediately begin working, there may be an “airlock” within the impeller chamber. Simply unplug and plug in a few times and it should start. If the water flows too strongly, you can tighten IMPORTANT – WINTER CARE the flow restrictor to turn it down.
