Fountain Components
Item Description
Round 6 ft.
Fiberglass
Fountain Basin
Caterina
Fountain Small
Bowl
Caterina
Fountain Large
Bowl
Caterina
Fountain in
Basin Finial
Caterina
Fountain in
Basin Small
Pedestal
Caterina
Fountain in
Basin Large
Pedestal
Caterina
Fountain in
Basin Pump
House
Caterina
Fountain in
Basin Pump
Door
Caterina
Fountain in
Basin Coping

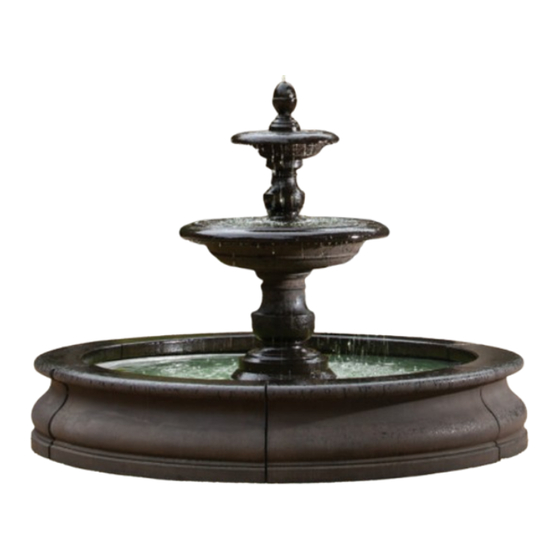

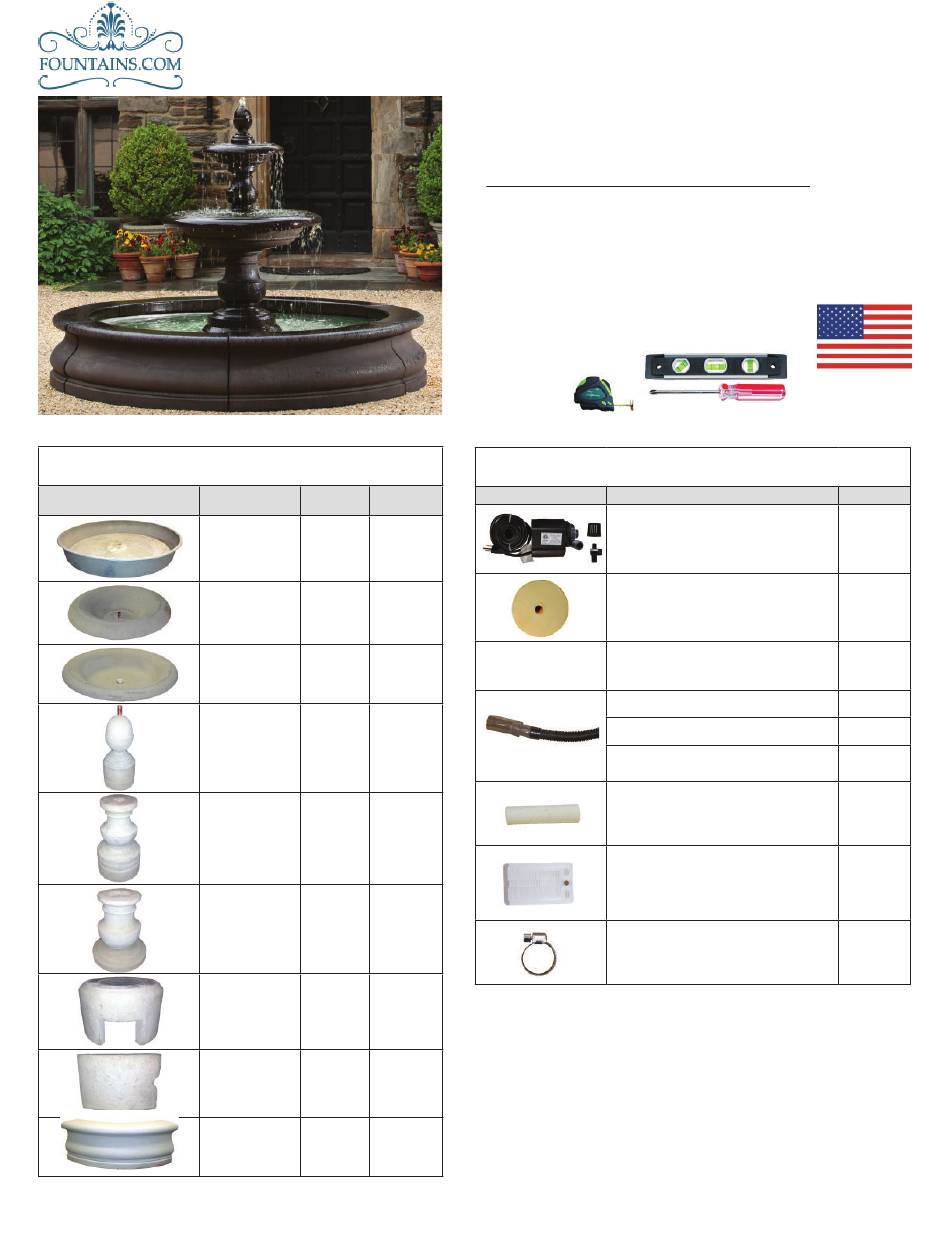

FT-193 Caterina Fountain in Basin
Fountain Information:
• Professional installation is recommended for this fountain!
• This fountain holds approximately 130 gallons of water.
• This fountain uses a large fountain cover, but does not cover the basin:
FTNCOV-LG
• Compatible with #10 Refill Device and LED kit
• A special stopper is required to use the refill kit for this fountain
Pump Information:
OEMPP800 - 800 GPH Pump (16 ft. cord length)
Tools Required:
Bubble Level
Screwdriver
Tape Measure
Component
Quantity
Item #
FGB-2030
1
FT-192B
1
FT-192E
1
FT-193A
1
FT-193C
1
FT-193E
1
FT-193F
1
FT-193G
1
FT-193H
6
Assembly Instructions
Pump Kit Parts List
Component
PK800 Pump
#10 Stopper
Metal plug for hole in side of basin
n/a
(pre-installed in basin)
2" length of 3/4" clear vinyl tubing
2" length of 5/8" clear vinyl tubing
Approx. 50" length of 1/2" black
non-kink tubing
7.5" length of 1.5" PVC pipe - standpipe
Wedges
Hose Clamp
Proudly
MADE IN USA
Quantity
1
1
1
1
1
1
1
6
1
rev 6/12/2020
Advertisement
Related Manuals for FOUNTAINS.COM Caterina FGB-2030
Summary of Contents for FOUNTAINS.COM Caterina FGB-2030
- Page 1 FT-193 Caterina Fountain in Basin Assembly Instructions Fountain Information: • Professional installation is recommended for this fountain! • This fountain holds approximately 130 gallons of water. • This fountain uses a large fountain cover, but does not cover the basin: FTNCOV-LG •...
-
Page 2: Fountain Set-Up
FT-193 Caterina Fountain in Basin Assembly Instructions Professional installation is recommended for this fountain! Fountain Set-Up: Assembly & Installation - A fountain can be difficult to install without knowing and understanding the steps involved. To ensure your fountain is installed properly, please read our instructions and tips before you begin. Step 1 - Seek Professional Help: Check if professional installation is recommended for your fountain. - Page 3 FT-193 Caterina Fountain in Basin Assembly Instructions Step 9 - Position the large bowl (FT-192E) on top of the large pedestal (FT-193E). Step 10 - Fit the standpipe into the large bowl (FT-192E). FT-192E (162 lbs) 35.25"W x 8"H Step 11 - Center the small pedestal (FT-193C) inside the large bowl (FT-192E). FT-193C (35 lbs) 10"W x 16"H Step 12 - Using a hose clamp, connect the 1/2"...
- Page 4 FT-193 Caterina Fountain in Basin Assembly Instructions Step 18 - Position the coping with the channel (FT-193H) about 6" from the basin (FGB-2030) on the side of the fountain where the pump cord is tocome out. Step 19 - Position the 5 remaining copings (FT-193H) in a circle about 6" from the basin. Step 20 - Carefully push each piece one at a time toward the basin and into the notch of the coping.
-
Page 5: Maintenance
Maintenance: Pump Care - The fountain relies heavily on the quality of the pump. A well-maintained pump can last several years. Step 1 - Fully submerge: Ensure the pump is fully submerged at all times to avoid damage. Step 2 - E nsure water level is sufficient: Check water levels regularly as water may evaporate over time, and periodically change water to avoid algae buildup.
