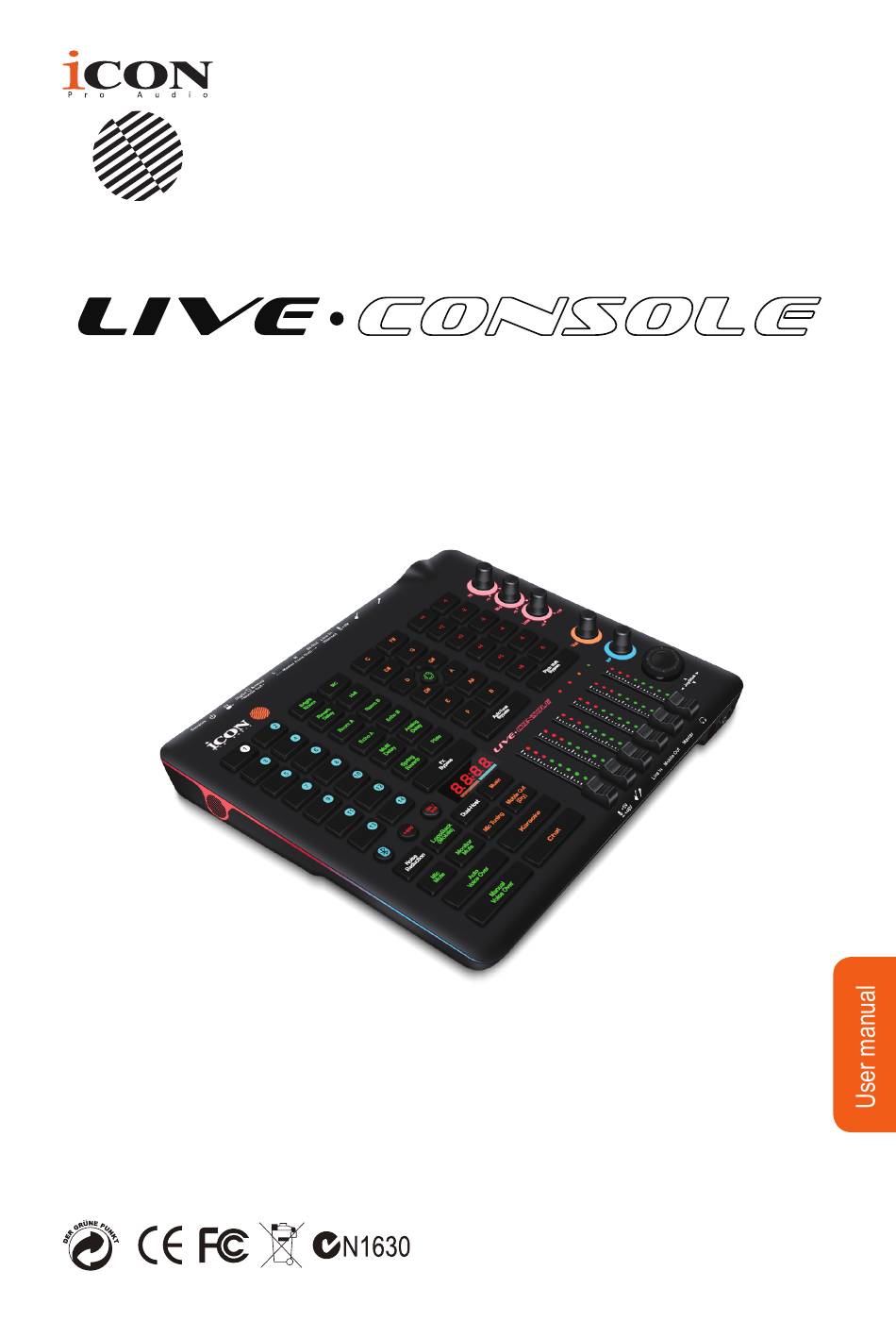

- Page 1 2 Mic/1-Instument in, 2 Line out recording USB Interface with DSP effects built-in for live streaming with Smartphones...
- Page 2 Important Safety Instructions 1. Read this manual thoroughly before using this unit. 2. Keep this manual for future reference. 3. Take notice of and comply with all warnings included in the user's manual or indicated on the appliance. 4. Follow all instructions included in this manual. 5.
-
Page 3: Table Of Contents
Contents Introduction ....................4 What’s in the package? ................4 Register your ICON ProAudio product to your personal account ...5 Features ....................6 Top Panel....................8 Front Panel ....................12 Assigning Samples to the sample pads..........12 Rear Panel....................13 Hardware Connections (with PC/Mac only) ..........14 Hardware Connections (with PC/Mac only) ..........15 Hardware Connections (Use as a standalone device) ......15... -
Page 4: Introduction
Interface! In these pages, you'll find a detailed description of the features of the Live Console digital audio Interface, as well as a guided tour through its front and rear panels, step-by-step instructions for their setup and use and a full list of specifications. -
Page 5: Register Your Icon Proaudio Product To Your Personal Account
Register your ICON ProAudio product to your personal account 1. Check the serial number of your device Please go to http:// iconproaudio.com/registration or scan the QR code below. Input your device’s serial number and the other information on the screen. Click “Submit”. -
Page 6: Features
Features The ICON Live Console USB recording interface provides an audio input and output module with USB connectivity for your PC or Smart Phone for instant live streaming capability. The main features include: ● Unique and innovative built-in ICON DSP effects for outstanding audio quality ●... - Page 7 ● Compatible with Mac OS (Intel-Mac) and Windows XP, Vista (32-bit/64-bit), Windows 7 (32-bit/64-bit), Windows 10 (64-bit), Windows 11 (64 bit) ● USB2.0 compatible and USB bus-powered ● Plug & play. No driver installation is needed.
-
Page 8: Top Panel
Top Panel 1. 14x24-bit DSP samplers/jingles 14 buttons are equipped to instantly trigger samples and jingles. The USB (micro) port is equipped to import your own audio files by connecting to your PC*. 14 default samples are preloaded at the factory and they are as follows; Horrify a horrifying sound effect sample a ‘Oh My God!’... - Page 9 2. 12x Vocal & Instrument presets Individual control button for 8x Vocal & 4x Instrument DSP presets as well as a Bypass button are equipped; Reverb Delay Hall Room A Vocal DSP Room B presets Echo A Echo B Chorus Reverb Stereo Chorus Multi Delay Instrument DSP...
- Page 10 7. Mic/Inst switch button Press this button to switch your input to Ch.2 between a dynamic microphone or an instrument. 8. Various function controls 1. Auto Voice Over - Voice over function will activate automatically when signal is detected from microphone inputs. 2.
- Page 11 10. EQ (Hi / Mid / Low) control knobs There are 3 EQ control knobs for adjusting Hi / Mid / Low EQ parameters. 11. Value & Speed encoder control knobs There are two encoder knobs for controlling the DSP effect parameters including Value (Orange) and Speed (Blue).
-
Page 12: Front Panel
An optional device, “LiveRemote”, is available for triggering sound samples etc. remotely. This could be extremely useful when live streaming. Please contactyour nearest Icon dealer for product information. Assigning Samples to the sample pads Connect the micro USB cable provided to the Samples input jack with your PC to import audio files for samples. -
Page 13: Rear Panel
OTG cable which allows you to connect to your smart phone. 7. 5V charging port (Type C) Connect with a standard Type C cable to charge the internal rechargeable battery of Live Console. 8. Power On/Off switch Switch to turn the device on or off. -
Page 14: Hardware Connections (With Pc/Mac Only)
Hardware Connections (with PC/Mac only) 1. Connect the Live Console digital audio interface outputs to your amplifier, powered monitors or surround system. This operates as a two- channel stereo output. The default outputs are channels 1 and 2. 2. If monitoring through headphones, connect the headphones to the device’s headphone output. -
Page 15: Hardware Connections (With Pc/Mac Only)
Hardware Connections (with PC/Mac only) Mac / PC Mac / PC Hardware Connections (Use as a standalone Android device) Android... -
Page 16: Minimum System Requirements
Windows XP, you must be running SP1 or later. Visit the Windows update web pages to ensure you have the most current updates and fixes supplied by Microsoft. With regard to the Mac, the Live Console digital audio interface is supported by Mac OSX version. -
Page 17: Specifications
Specifications Mic Input: Frequency Response: ........ 22Hz to 20kHz (+/-0.2dB) Dynamic Range: ......... 90dB, A-weighted Signal-to-Noise Ratio: ......... -90dB, A-weighted THD+N: ............<0.0061% (-86dB) Crosstalk: ............ -85dB @ 1kHz Input Impedance: ........Mic in: 1.8K Ohms, typical Adjustable Gain: ......... +39dB Inst Input: Frequency Response: ........ -
Page 18: Services
Pack the unit in its original packaging including end card and box. This is very important. If you have lost the packaging, please make sure you have packed the unit properly. ICON is not responsible for any damage that occurs due to non-factory packing. - Page 19 天猫官方旗舰店 抖音号 哔哩哔哩 微信公众号 官方售后QQ B站iCONProAudio 4006311312.114.qq.com 天猫店艾肯旗舰店 抖音iCON艾肯 微信号iCON-PRO 中国地区用户 Twitter Instagram Facebook Youtube www.twitter.com/iconproaudio www.instagram.com/iconproaudio www.facebook.com/iconproaudio www.youtube.com/iconproaudio Support Dashboard Website www.iconproaudio.com support.iconproaudio.com iconproaudio.com/dashboard/...
