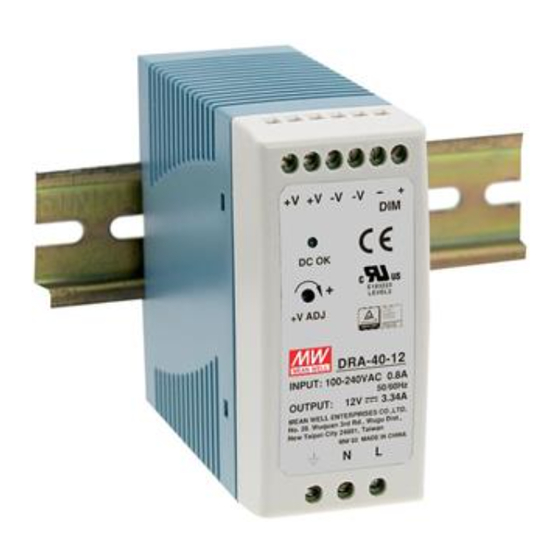

DC Single Output Industrial
DIN-rail Power Supply
PWR-40-24/PWR-60-24/PWR-75-24/PWR-75-48
PWR-120-48/PWR-240-48/PWR-480-48/PWR-960-48
User's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the PWR-40-24 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mean Well PWR-40-24

  • Page 1 DC Single Output Industrial DIN-rail Power Supply PWR-40-24/PWR-60-24/PWR-75-24/PWR-75-48 PWR-120-48/PWR-240-48/PWR-480-48/PWR-960-48 User's Manual...
  • Page 2: Table Of Contents

    Table of Contents 1. Package Contents ................. 3 2. Requirements ..................5 3. AC Power Cord Installation ..............6 4. DC Power Terminal Block Installation ........... 10 5. Product Specifications ................. 14...
  • Page 3: Package Contents

    Power Supply units: Operating Model Name Description Temperature PWR-40-24 40W 24V DC Single Output -20 ~ 70 (MEAN WELL MDR-40-24) Industrial DIN-rail Power Supply degrees C PWR-60-24 60W 24V DC Single Output -20 ~ 70 (MEAN WELL MDR-60-24) Industrial DIN-rail Power Supply...
  • Page 4 Strongly recommend to use the 24V DC Single Output Industrial DIN-rail Power Supply units for Industrial non-PoE devices and the 48V DC Single Output Industrial DIN-rail Power Supply units for Industrial PoE devices. The box should contain the following items: z The DC Single Output Industrial DIN-rail Power Supply Unit x 1 z This User’s Manual x 1 If any item is found missing or damaged, please contact your local reseller for...
  • Page 5: Requirements

    2. Requirements The DC Single Output Industrial DIN-rail Power Supply units are designed for providing DC power to PLANET Industrial devices. For AC power input and DC power output from DC Single Output Industrial DIN-rail Power Supply units, the following are necessary for further installation. z AC Power Cord Cable x 1 z Terminal Block Connector within Two DC Power Inputs Wires z Cutting Tools: Long Nose Plier and Cutter...
  • Page 6: Ac Power Cord Installation

    3. AC Power Cord Installation Single Output Industrial DIN-rail Power Supply unit’s power requirement is 100-240V AC, 50/60Hz with power input lines. Suggest you use a standard AC power cord. Step 1: Use a cutter to cut open the AC power cord. Step 2: Open the AC power cord and there are 3 wires inside.
  • Page 7 Step 4: Make sure the wires are neatly straightened. Step 5: The 3 wires should consist of a live wire, neutral wire and earth wire. For the standard AC power cord, live wire is black, neutral wire is white and earth wire is green. Please verify these 3 wires from your AC power cord before starting the following proce- dure.
  • Page 8 1. Please do not connect the power plug of the power cable to a standard wall outlet during this installation. 2. The example based PWR-40-24 PWR-60-24, PWR-75-24v2, PWR-75-48, PWR-120-48v2, PWR-240-48v2, PWR-480-48v2 and PWR-960-48. The indication is the same, but on a different location. Step 7: Please connect the power plug of the power cable to a standard wall outlet to power on the DC Single Output Industrial DIN-rail Power Supply units.
  • Page 9 PWR-75-24v2, PWR-75-48, PWR-120-48v2, PWR-240-48v2, PWR-480-48v2 and PWR-960-48. The DC OK indication is the same, but on a different location. 2. As +V ADJ is for O/P voltage adjustment, the range is shown as PWR-40-24/PWR-60-24: 24V to 30V. PWR-75-24v2: 24V 28V. PWR-75-48/PWR-120-48v2/PWR-240-48v2/PWR- 480-48v2/PWR-960-48:48V to 55V. Adjustable with screw- driver and voltage measure with multimeter.
  • Page 10: Dc Power Terminal Block Installation

    Figure 3: DC Single Output Industrial DIN-rail Power Supply Upper Panel. 1. The example is based on PWR-40-24 for PWR-60-24 and PWR-960-48 whose the DC OK contact location and indication are the same. 2. In this chapter, the example is based on PWR-40-24 for PWR-75-24v2, PWR-75-48, PWR-120-48v2, PWR-240-48v2 and PWR-480-48v2, where there is no DC OK Relay Contact.
  • Page 11 Please follow the steps below to insert the power wire. Step 1: Please find one terminal block connector within two DC power inputs. The power contact distributor is shown below: Power 1 Alarm Power 2 The wire gauge for the terminal block should be in the range between 12 and 24 AWG. Step 2: Insert 4 DC power wires into Contacts 1 and 2 for Power 1, or Contacts 5 and 6 for Power 2.
  • Page 12 To hang the DC Single Output Industrial DIN-rail Power Supply units, follow the steps below: 1. The example is based on PWR-40-24 for PWR-60-24, PWR- 75-24v2, PWR-75-48, PWR-120-48v2, PWR-240-48v2, PWR- 480-48v2 and PWR-960-48. The installation is the same.
  • Page 13 Step 1: Lightly slide the bottom of the DIN rail into the track. Step 2: Check whether the DIN rail is tightly on the track. Step 3: Please refer to the following procedure to remove the DC Single Output Industrial DIN-rail Power Supply unit from the track. Step 4: Lightly pull out the bottom of the DIN rail to remove it from the track.
  • Page 14: Product Specifications

    20~95% Humidity Storage: 10~95% (non-condensing) Storage: 10~95% (non-condensing) Installation DIN rail TS-35/7.5 or 15 PWR-40-24 (MEAN WELL MDR-40-24): UL508, UL60950-1, TUV EN60950-1 approved, NEC class 2/ Safety & LPS compliant. PWR-60-24 (MEAN WELL MDR-60-24)/ Function* PWR-75-24 (MEAN WELL NDR-75-24): UL508, TUV EN60950-1 approved...
  • Page 15 PWR-75-48 PWR-120-48v2 PWR-240-48v2 Model (MEAN WELL (MEAN WELL (MEAN WELL NDR-75-48) NDR-120-48) NDR-240-48) Hardware Specifications Dimensions 32 x 102 x 125mm 40 x 113 x 125mm 63 x 113 x 125mm (W x D x H) Weight (kg) 0.5kg 0.6kg Input...
  • Page 16 Storage: -40~85 degrees C Operating: 20~95% Humidity Storage: 10~95% (non-condensing) Installation DIN rail TS-35/7.5 or 15 PWR-480-48 (MEAN WELL NDR-480-48): Safety & Ul508, TUV EN60950-1 approved (meeting EN60204-1) PWR-960-48 (MEAN WELL SDR-960-48): Function* Ul508, TUV EN62368-1 approved (meeting EN60204-1) * Note: The power supply is considered a component which will be installed...
