Assembling the Frame
2.6

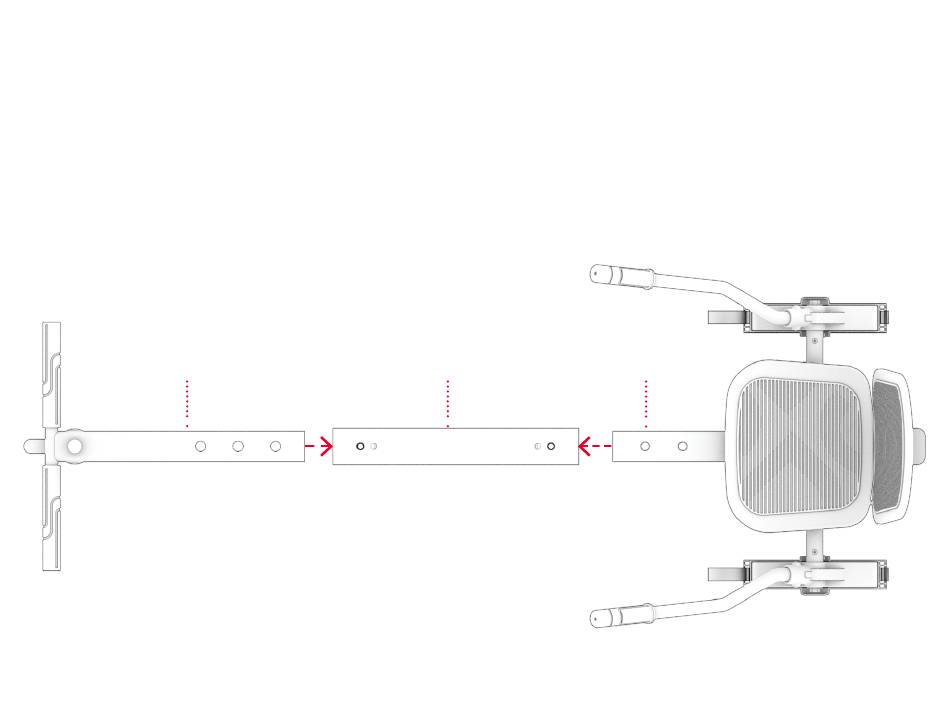

1. POSITION THE CENTER CONNECTOR (E) ON YOUR WORK SURFACE SO THAT THE SIDE WITH THE LARGER HOLES IS
FACING UP.
2. POSITION THE REAR FRAME (A) AND FRONT FRAME (F) ON OPPOSITE ENDS OF THE CENTER CONNECTOR SO THAT THE
FRAME BARS ARE IN LINE.
3. SLIDE THE FRAME BARS OF THE REAR FRAME AND FRONT FRAME INTO THE CENTER CONNECTOR.
FRONT FRAME (F)
28
CENTER CONNECTOR (E)
REAR FRAME (A)
