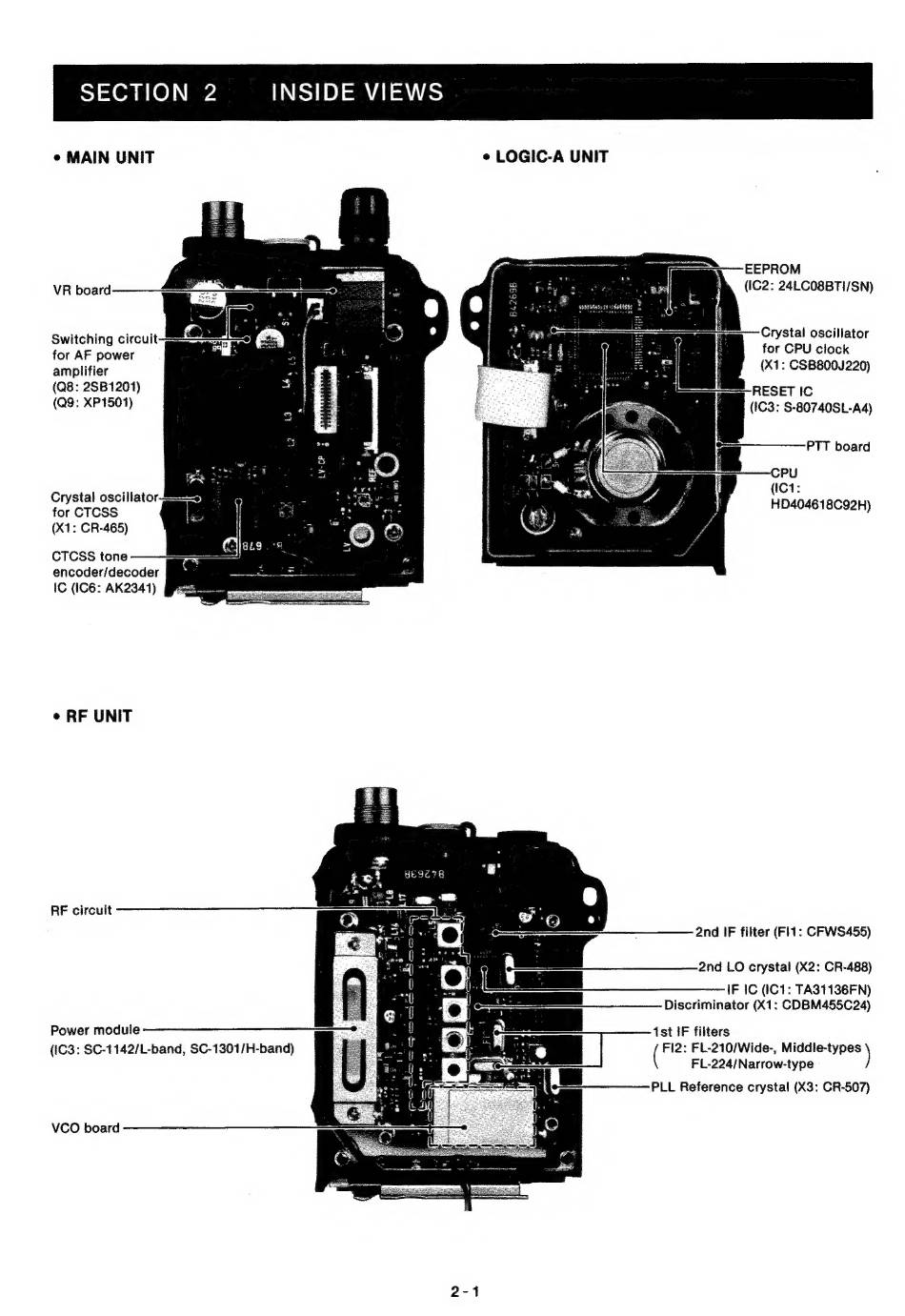

SECTION 2 INSIDE VIEWS
е MAIN UNIT e LOGIC-A UNIT
EEPROM
VR board (ІС2: 24LCOBBTI/SN)
Crystal oscillator
for CPU clock
(X1: CSB800J220)
RESET IC
(IC3: S-80740SL-A4)
Switching circuit
tor AF power
amplifier
(Q8: 2SB1201)
(Q9: XP1501)
Crystal oscillator не
for CTCSS
(X1: CR-465)
HD404618C92H)
CTCSS tone
encoder/decoder
ІС (ІС6: АК2341)
* ВЕ UNIT
ВЕ circuit
2nd |F filter (ЕН: CFWS455)
2nd LO crystal (X2: CR-488)
IF IC (IC1: TA31136FN)
Discriminator (X1: CDBM455C24)
Power module 1st IF filters
(IC3: SC-1142/L-band, SC-1301/H-band) ( 212: FL-210/Wide-, Middle-types )
FL-224/Narrow-type
PLL Reference crystal (X3: CR-507)
VCO board
