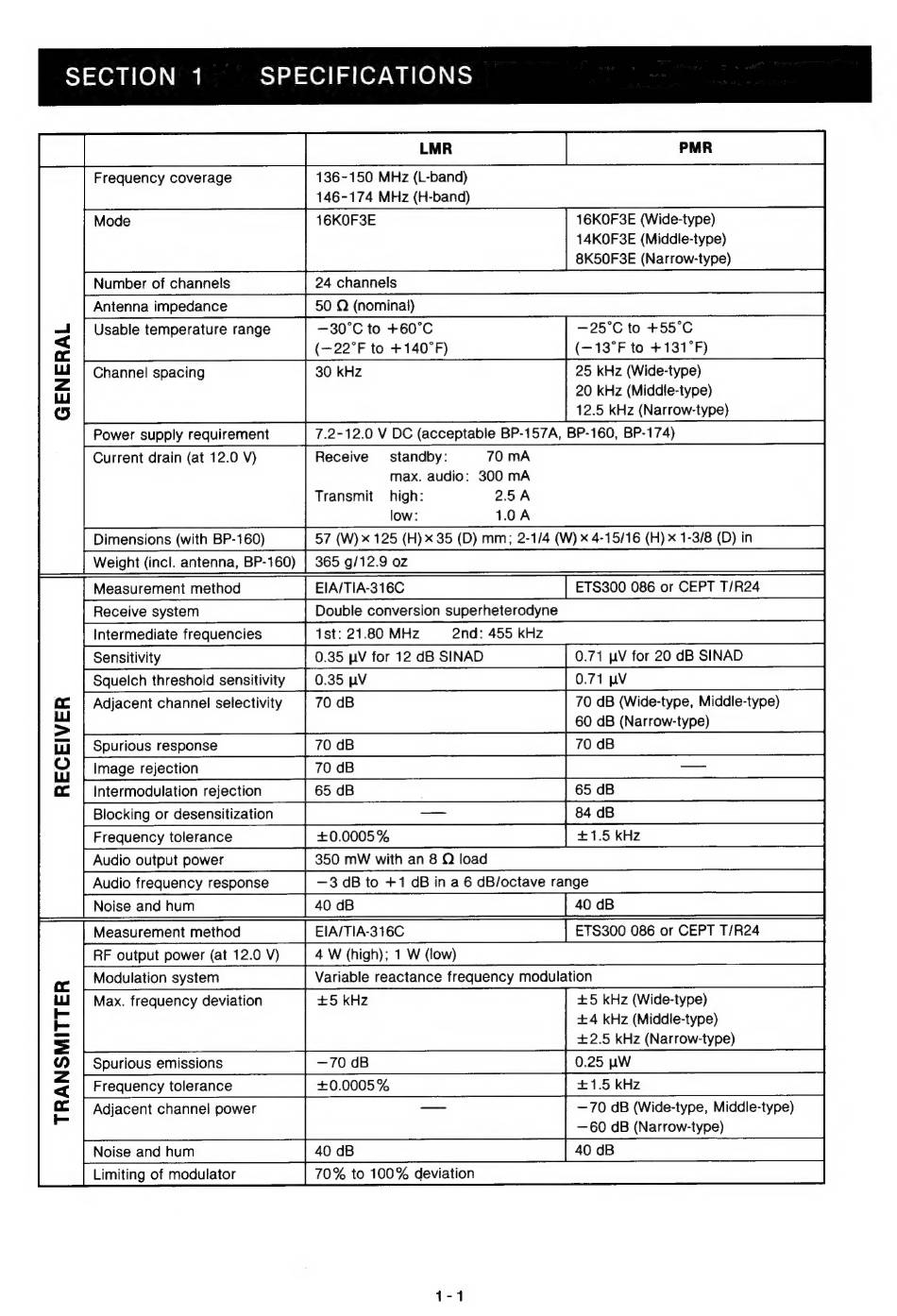

SECTION 1 SPECIFICATIONS
Frequency coverage 136-150 MHz (L-band)
146-174 MHz (H-band)
16KOF3E (Wide-type)
14KOF3E (Middle-type)
16KOF3E
8K50F3E (Narrow-type)
Number of channels 24 channels |
Antenna impedance 50 Q (nominal)
Usable temperature range —30'C to +60°C —25'C to +55°С
(—22^F to +140°F) (—13°F to +131°F)
Channel spacing 30 kHz 25 kHz (Wide-type)
20 kHz (Middle-type)
Power supply requirement 7.2-12.0 V DC (acceptable BP-157A, BP-160, BP-174)
GENERAL
12.5 kHz (Narrow-type)
Current drain (at 12.0 V) Receive standby: 70 mA
max. audio: 300 mA
Transmit high: 2.5 А
low: ТОА
Dimensions (with ВР-160)
Weight (іпсі. antenna, ВР-160)
Measurement method ETS300 086 or CEPT T/R24
Receive system
Intermediate frequencies 151: 21.80 MHz 2nd: 455 kHz
Sensitivity 0.71 иу for 20 dB SINAD
Squelch threshold sensitivity 0.71 uV
Adjacent channel selectivity 70 dB 70 dB (Wide-type, Middle-type)
60 dB (Narrow-type)
Spurious response 70 dB
Intermodulation rejection 65 dB
Blocking or desensitization Pe 84 dB
Frequency tolerance x1.5 kHz
Audio output power
Audio frequency response
Noise and hum 40 48
Measurement method ETS300 086 or CEPT T/R24
RF output power (at 12.0 V)
Modulation system
Max. frequency deviation +5 kHz (Wide-type)
+4 kHz (Middle-type)
+2.5 kHz (Narrow-type)
—60 dB (Narrow-type)
40 dB 40 ав
Limiting of modulator 7096 to 10096 deviation
RECEIVER
TRANSMITTER
