Patriot Lighting HBRS-14L-5K Manual

Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-833-390-5533
Monday – Friday 8:00 a.m. – 5:00 p.m. CST
PACKAGE CONTENTS
HARDWARE CONTENTS Note: Hardware not shown actual size.
Eyebolt Hook
Eyebolt
X1
Sku Number: 348-6306

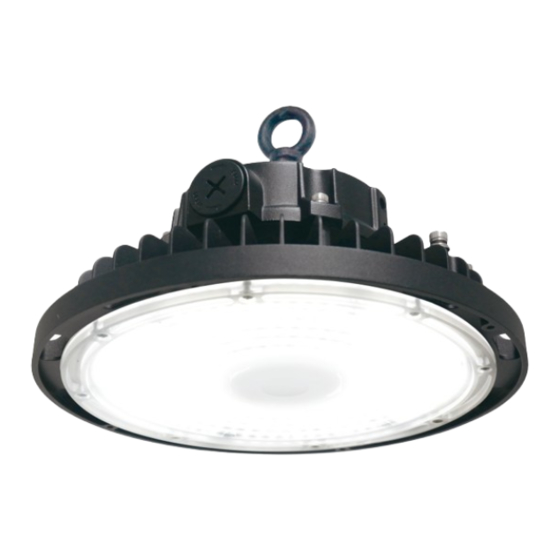

Round Highbay Light
Model Number: HBRS-14L-5K
1
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
• Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or switching
off circuit breaker).
• Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact
any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury or
death from electric shock.
CAUTION
• All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
Contact your municipal building department to learn about your local codes, permits and/or inspections.
• Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician
before installation.
• Do not connect this fixture to an electrical system that does not provide a means for equipment grounding. Never use
a fixture in a two-wire system that is not grounded. If you are not sure your lighting system has a grounding means,
do not attempt to install this fixture. Contact a qualified, licensed electrician for information with regards to proper
grounding methods as required by the local electrical code in your area.
• If a dimmer control switch is used with this fixture, obtain professional advice to determine the correct type and electrical
rating required.
PREPARATION
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire Cutters,
Safety Glasses, Ladder, Wire Stripper.
ASSEMBLY INSTRUCTIONS
1. Thread the enclosed eyebolt hook into the top of the luminaire housing, and tighten securely.
Tighten the set screw to prevent the eyebolt from loosening. (See Figure 1)
Use a chain, cable, mounting hook or other mounting hardware to suspend the luminaire. Make sure
2.
the mounting hardware is securely attached to the stationary structure, and is strong enough to safely
suspend the luminaire. ( See Figure 2)
3. Refer to the Wing Diagram to make electrical connections.
Eyebolt Hook
Figure 1 Figure 2
