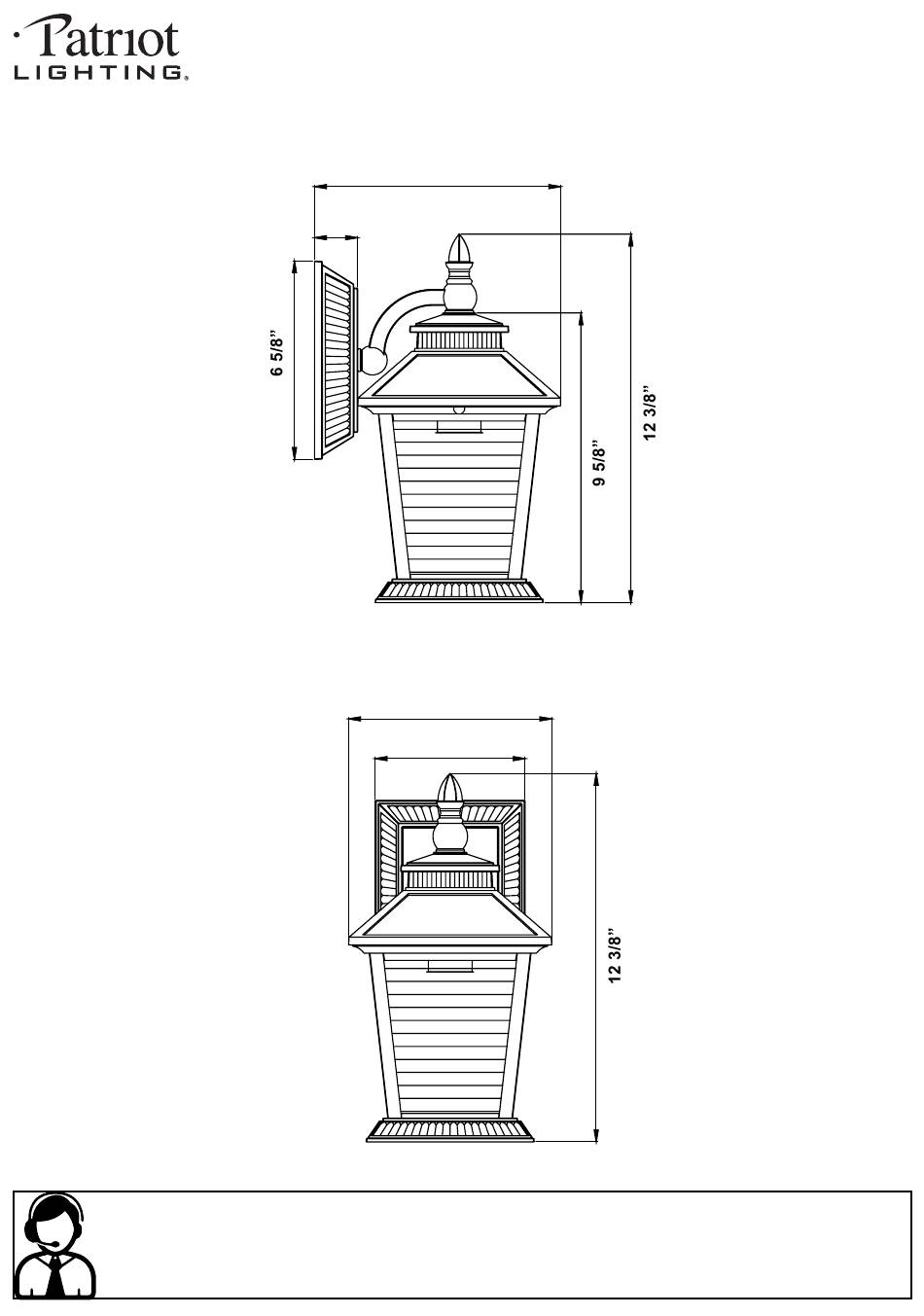

- Page 1 Horizon 1-Light Outdoor Wall Lantern INSTALLATION MANUAL SKU NUMBER: 356-1197 MODEL: Horizon-WL BK 8 1/8” 1 3/8” 6 3/4” 5” Questions, problems, need help? Call our customer service department at 1-866-839-2888, 8 a.m. - 5 p.m., EST, Monday - Friday P.
- Page 2 PACKAGE CONTENT Junction box (not supplied) Not supplied Bulb (not supplied) P. 2...
- Page 3 PART LIST REPLACEMENT PART PART # DESCRIPTION QUANTITY AVAILABILITY Mounting plate Fixture Back Plate Twist-cap Connector Grounding Bolt #5x5 mm Bolt #8x25 mm Cap Nut Washer TOOLS REQUIRED (not supplied) Ladder Phillip Screwdriver Silicone Slotted Screwdriver Wire stripper Wire cutter Safety goggles P.
- Page 4 Any modification or alteration from what is specified in this instruction manual will void any and all warranty on this product. PATRIOT LIGHTING® is not responsible for any damage to the unit or personal property caused by improper installation. If you disregard instructional warnings, you will void your warranty and possibly deal with damage.
- Page 5 INSTALLATION 1.1. Uninstall mounting plate (A) by rotating cap nuts (DD) counterclockwise. Pass all wires through mounting plate (A). Connect the green (ground) wire from the fixture to the green (ground) wire on the mounting plate. Connect the fixture neutral (white) wire to house neutral (white) wire and the fixture black (live) wire to the house black (live) wire. Use provided twist cap connectors (AA) to make all connections.
- Page 6 Patriot Lighting products will remain beautiful for many years if you properly care for them. Patriot Lighting does not recommend the use of harsh abrasive cleaners on any of its products. Harsh cleaners will damage the finish of your product.
