PACKAGE CONTENTS
HARDWARE CONTENTS Note: Hardware not shown actual size.
AA
Cross Bar
X1
BB
Mounting Screw
X2
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
A
CC
Wire Connector
X3
DD
Headless Screw
X2

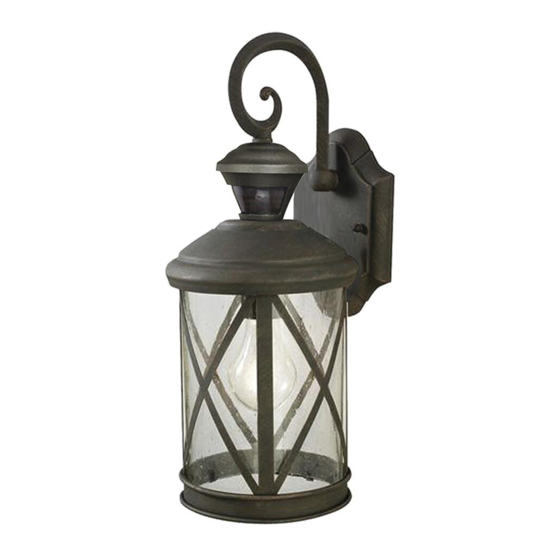

OUTDOOR SENSOR LIGHT
EE
Ball Nut
X2
FF
Lock Nut
X4
Sku Number: 356-4285
356-4286
Model Number: E4145
E4146
GG
Rubber Pad
X2
Page 1 of 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Patriot Lighting E4145
Summary of Contents for Patriot Lighting E4145
- Page 1 Sku Number: 356-4285 356-4286 OUTDOOR SENSOR LIGHT Model Number: E4145 E4146 Questions, problems, missing parts? Before returning to your retailer, call our customer service at 1-800-887-6326 Monday – Friday 9:00 a.m. – 5:00 p.m. CST PACKAGE CONTENTS HARDWARE CONTENTS Note: Hardware not shown actual size.
-
Page 2: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNING • Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or switching off circuit breaker). •... - Page 3 ASSEMBLY INSTRUCTIONS (continued) 1. Thread two headless screws (DD) 4. Attach the fixture to the cross through the cross bar (AA), and then bar (AA) by inserting headless DD A secure them with four lock nuts (FF) screws (DD) into holes on back (two on each side of the cross plate (A), and then secure it with bar (AA).
-
Page 4: Function And Operation
ASSEMBLY INSTRUCTIONS (continued) ASSEMBLY INSTRUCTIONS (continued) ASSEMBLY INSTRUCTIONS (continued) Step 1: Rotate the sensor lens counterclockwise to show “TIME” Knob up the adjustable knobs and slide switch. “LOW LEVEL” Knob (See Fig.1) “SENS” Knob Flathead Screwdriver Step 2: Use the small flathead screwdriver to adjust time, (not included) low level brightness and sensitivity. - Page 5 FUNCTION AND OPERATION (continued) Customization Options Fig. 5 (View from back of sensor head) Shut-off Delay The Shut-off delay is the length of time the light will stay at high- level brightness after motion has ceased to be detected. This Shut-off delay can be set when operation is in “OFF”, or “AUTO”...
-
Page 6: Care And Maintenance
If unable to fix any of the above issues, please consult a certified electrician. FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails due to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this lighting fixture with the original sales receipt back to your nearest MENARDS retail store.
