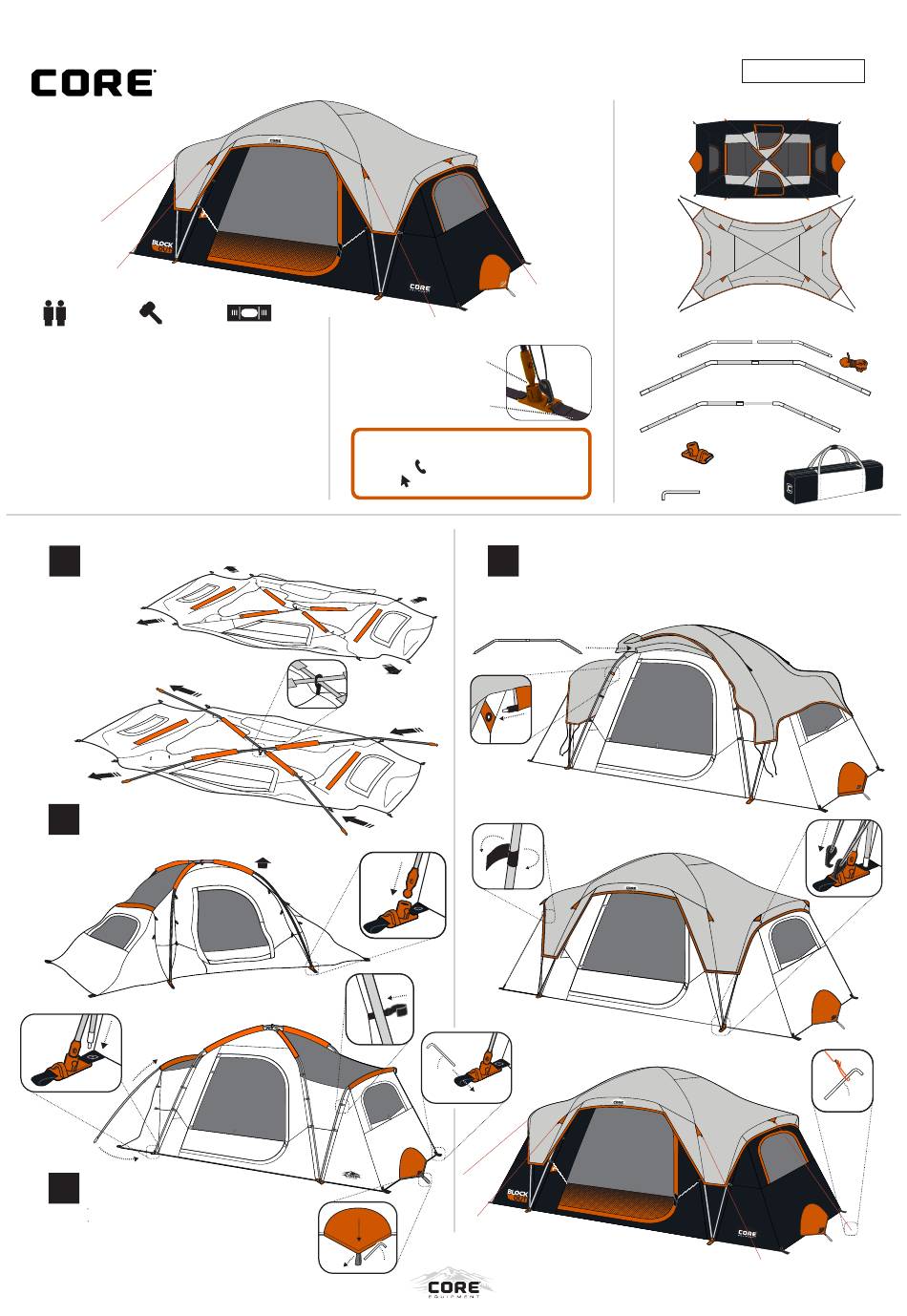

Core 40341 Quick Start Manual

9-Person BlockOut
16 ft x 9 ft x 78 in
We Recommend...
2 People Rubber Mallet
Setup Tips
• For a comfortable night's rest, clear your camp area of debris
before setting up your tent.
• When opening for the first time, the rainfly is rolled together
with the tent body.
• Remove all protective cardboard and foam inserts around
the side hubs before initial setup.
• Lay out all of the contents of the bag and assemble all tent
poles before setting up your tent.
• Push the awning pole through sleeve, don't pull.
• Make sure the sleeve fabric is evenly distributed to avoid
catching the pole section ends.
1
Prepare Tent
• Remove all contents
from bag.
• Pull tent out
flat and
tight.
• Assemble poles.
• Insert tent poles into sleeves
at tent roof.
• Secure plastic "J" hook to tent poles
where they
cross (fig. 1).
2
Raise Tent
NOTE: 2 people are required for this step.
• Flex poles into an arch to raise the roof and insert the
ball at the end of each pole into the foot connector. It
will "click" into
place (fig. 2).
• Insert side poles into red sleeves,
arch and insert the pin at the end of
each pole into the
grommet (fig. 3).
fig. 3
3
Secure Tent
to Poles and Stake
Clip all hooks on tent body to tent poles (fig. 4).
Drive stakes at a 45º angle through web loop
at base of tent to secure to ground (fig. 5).
• Stake out ground vent at back of tent (fig. 6).
• Floor of tent should be taut when
staked properly.
Dome Tent
™
CoreConnect
Level Area
CoreConnect
of each pole is inserted into
the red socket on the
foot connector to secure tent
body in place.
Webbed Loop: Insert stakes
through these loops to keep
the tent secured to the ground.
fig. 1
fig. 2
"CLICK"
fig. 4
45˚
fig. 6
System
™
: Ball at the end
™
Need some help?
1-888-775-5628
coreequipment.com
4
Attach Rainfly with Awning Pole & Guy Out
• Drape rainfly over the tent, aligning "CORE
• Insert Durawrap awning pole into sleeve located underneath rainfly above
door of tent.
• Arch Durawrap awning pole and insert the pins on each end into the grommets
located near tent poles on either side of the door (fig. 7).
Durawrap
Awning Pole
fig. 7
• Attach (4) hook-and-loop
tabs on underside of rainfly to tent
poles (fig. 8).
fig. 8
• Extend attached guylines and
stake out (fig. 10).
45˚
fig. 5
fig. 5
Model #40341
Contents & Repair Parts
Tent
Rainfly
(92334)
Durawrap
Awning Pole x 2 (92337)
Main Durawrap
Poles x 2 (92335)
Durawrap
Side Poles x 2 (92336)
Foot Connector
(92369)
Stakes x 18 (90014) Carry Bag
(92338)
® " logo above the door.
• Attach rainfly S-hooks to bridge
on foot connector (fig. 9).
(continued on back)
Guylines
(92332)
fig. 9
45˚
fig. 10
