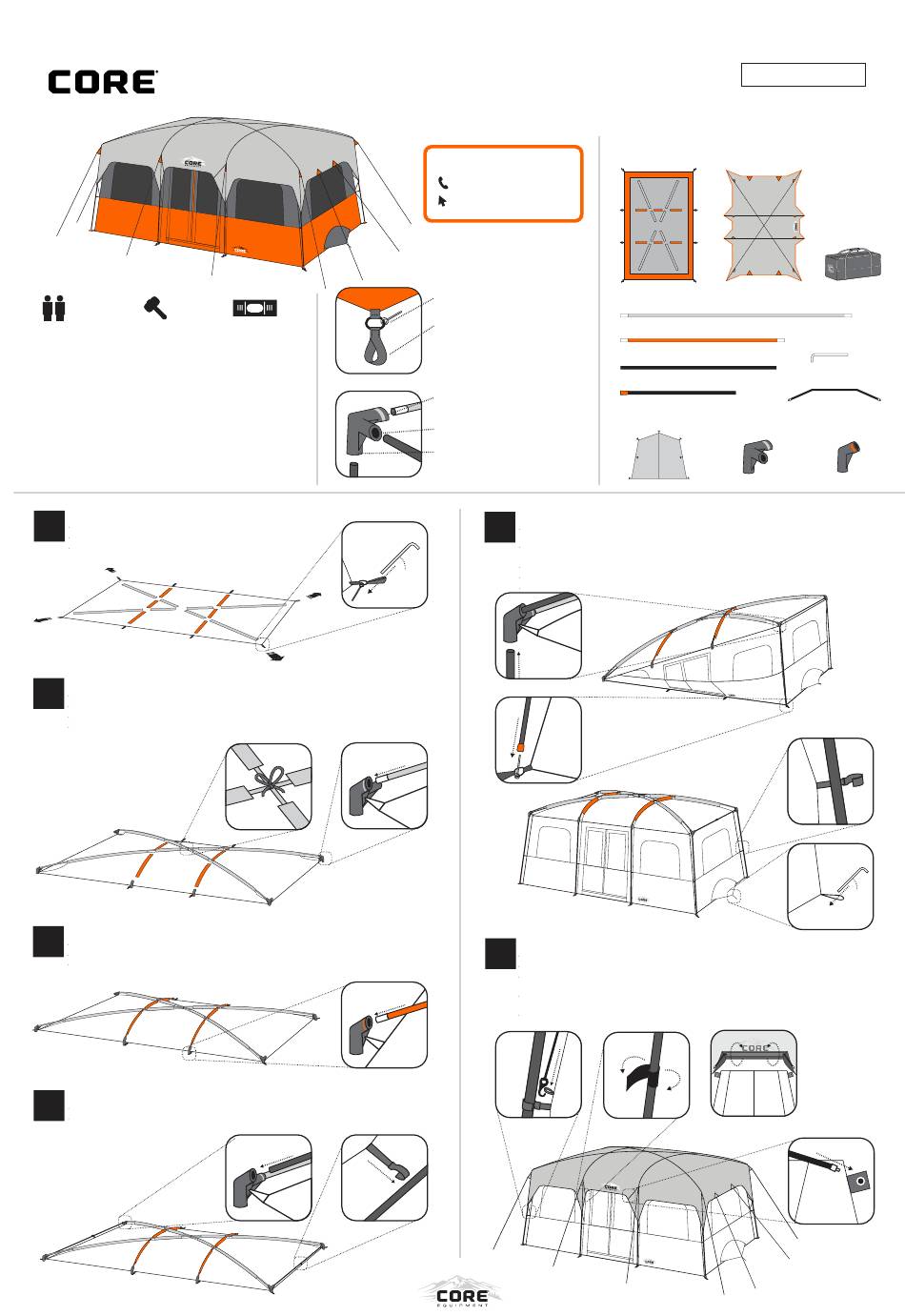

12 Person Straight Wall Tent
16ft x 11ft x 86in
We Recommend...
2 People
Rubber Mallet
Setup Tips
• For a comfortable night's rest, clear your camp area of debris
before setting up your tent.
• When opening for the first time, the rainfly and room divider are
rolled together with the tent body.
• Lay out all of the contents of the bag and assemble all tent
poles before setting up your tent.
• The tent poles are color-coded to match the sleeves and pole joints.
• Push the poles through the sleeves, don't pull.
• Make sure the sleeve fabric is evenly distributed to avoid
catching the pole.
1
Stake Tent
Pull tent out flat and tight
Drive stakes through all webbed loops (fig 1.)
You may need to adjust stakes after setup
2
Insert Gray Poles
Push gray poles through the light gray sleeves
Tie fastener to both poles at the intersection (fig. 2)
Insert one end of each light gray pole into the color-coded corner pole connector (fig. 3)
Flex poles into an arch and insert other end of the poles into the opposite pole joint
3
Insert Orange Poles
Push orange poles through orange sleeves
Insert one end of each orange pole into the pole joint on the side of the tent (fig. 4)
Flex poles into an arch and insert other end of the poles into the opposite pole joint
4
Connect Steel Roof Poles
Place the steel roof poles into the pole joints located on either end of the tent (fig. 5)
Clip the black plastic hooks to the steel roof poles (fig. 6)
Level Area
fig. 1
fig. 3
fig. 2
fig. 4
fig. 5
fig. 6
Need some help?
1-888-775-5628
coreequipment.com
Pin-and-Ring System
Pin-and-Ring: Pins are inserted
into ends of leg poles.
Webbed Loop: Insert stakes
through these loops to keep the tent
secure.
Pole Joints
Color-Coded Pole Connector:
Color-coded to match corresponding
roof poles
Roof Pole Connector: Connects to
steel roof poles
Leg Pole Connector: Leg poles lift
tent roof and connect to
pin-and-ring system
5
Insert Leg Poles
Starting on one end place the leg poles into the remaining connectors in the
pole joints (fig.7)
Insert the pin from the pin-and-ring system into the orange end of the leg pole (fig.
8)
45˚
Repeat until all poles are in place
Clip plastic hooks to all tent poles (fig. 9)
Extend and stake the ground air vents located at both ends of the tent (fig. 10)
fig. 7
fig. 8
6
Attach Rainfly
Drape rainfly over the tent, aligning CORE® logo above the door
Secure S-hooks to loops located on the side of the tent (fig. 11)
Attach rainfly to poles using hook and loop fasteners located on the underside of the
rainfly (fig. 12)
Insert awning pole into sleeve located under the rainfly above the door (fig. 13) and
secure ends into the metal grommets (fig. 14)
Extend attached guylines and stake
fig. 11
Model #40082
Contents & Repair Parts
Tent
Rainfly (91496)
Light Gray Poles x 2 (91493)
Orange Poles x 2 (91492)
Steel Roof Poles x 2 (91503)
Leg Poles x 8 (91491)
Room Divider (91497)
Corner Pole Joints x 4
(Right: 91501 Left: 91495)
fig. 12
fig. 13
Carry Bag
(91498)
Stakes x 22
(90014)
Awning Pole (91494)
Side Pole Joints x 4
(91504)
fig. 9
45˚
fig. 10
fig. 14
