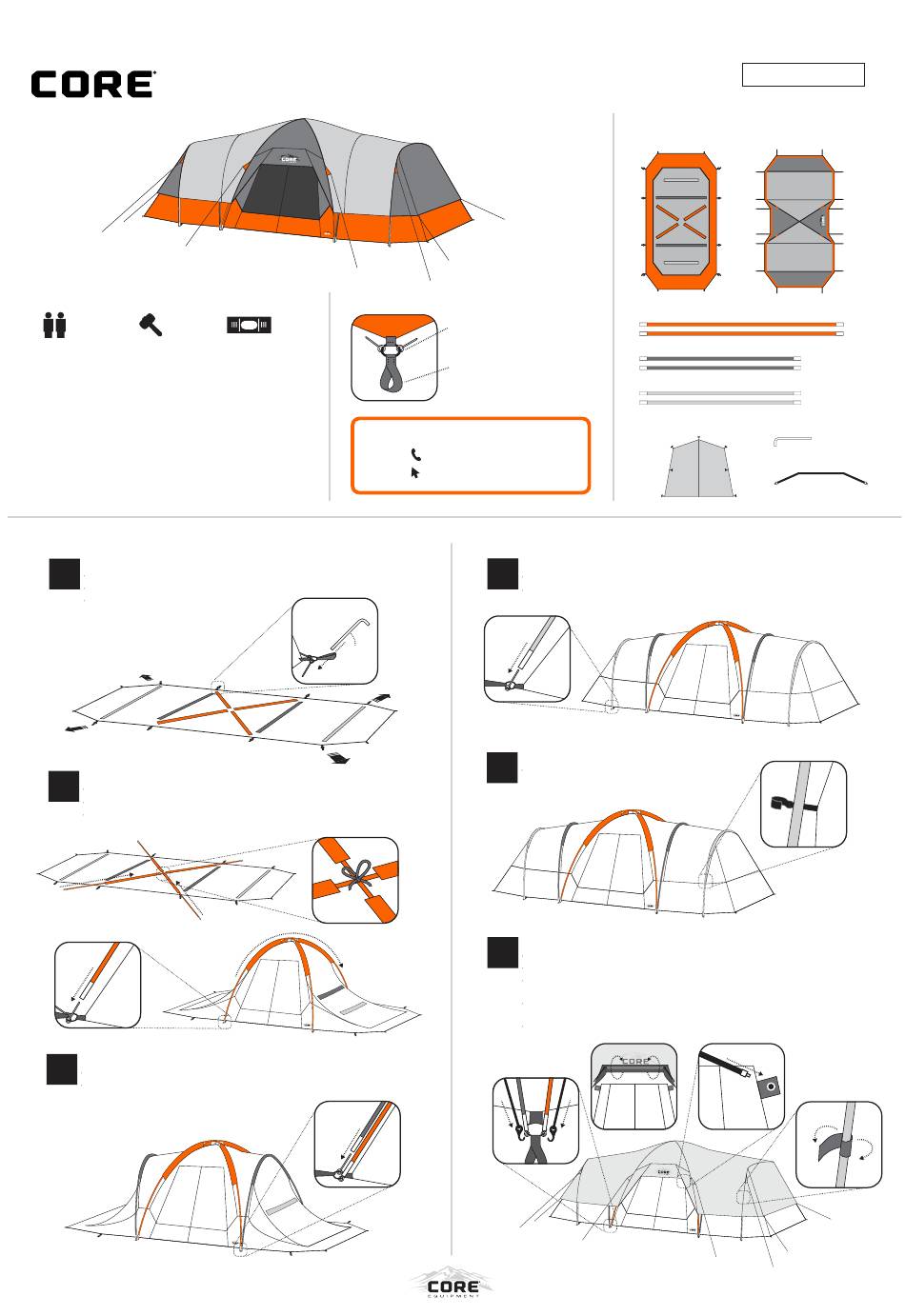

11 Person Extended Dome Tent
18ft x 9ft x 74in
We Recommend...
2 People
Rubber Mallet
Setup Tips
• For a comfortable night's rest, clear your camp area of debris
before setting up your tent.
• When opening for the first time, the rainfly and room divider
are rolled together with the tent body.
• Lay out all of the contents of the bag and assemble all tent
poles before setting up your tent.
• The tent poles are color-coded to match the sleeves.
• Push the poles through the sleeves, don't pull.
• Make sure the sleeve fabric is evenly distributed to avoid
catching the pole joints.
1
Stake Tent
Pull tent out flat and tight
Drive stakes through all webbed loops (fig 1.)
You may need to adjust stakes after setup
2
Insert Orange Poles
Push orange poles through orange sleeves
Tie fastener to both poles at the intersection (fig. 2)
Flex poles into an arch and insert pin from pin-and-ring system into
end of pole (fig. 3)
fig. 3
3
Insert Dark Gray Poles
Push dark gray poles through dark gray sleeves
Flex poles into an arch and insert pin from pin-and-ring system into
end of pole (fig. 4)
Pin-and-Ring System
Level Area
45˚
fig. 1
fig. 2
fig. 4
Pin-and-Ring: Pins are
inserted into ends of tent poles
to secure tent construction.
Webbed Loop: Insert stakes
through these loops to keep
the tent secured to the
ground.
Need some help?
1-888-775-5628
coreequipment.com
4
Insert Light Gray Poles
Push light gray poles through light gray sleeves
Flex poles into an arch and insert pin from pin-and-ring system into end
of pole (fig. 5)
fig. 5
5
Secure Tent To Poles
Clip plastic hooks on tent to all tent poles (fig. 6)
6
Attach Rainfly
Drape rainfly over the tent, aligning CORE
Secure S-hooks to rings located on the pin-and-ring system (fig. 7)
Insert awning pole into sleeve located under the rainfly above the door (fig. 8)
and secure ends into the metal grommets (fig. 9)
Attach rainfly to poles using hook and loop fasteners located under
the rainfly (fig. 10)
Extend attached guylines and stake out
fig. 7
Model #40081
Contents & Repair Parts
Tent
Rainfly (91488)
Orange Poles (91486)
Dark Gray Poles (91485)
Light Gray Poles ( 91484)
Room Divider (91489)
Stakes x 27 (90014)
Awning Pole (91487)
fig. 6
logo above the door
®
fig. 9
fig. 8
(continued on back)
fig. 10
