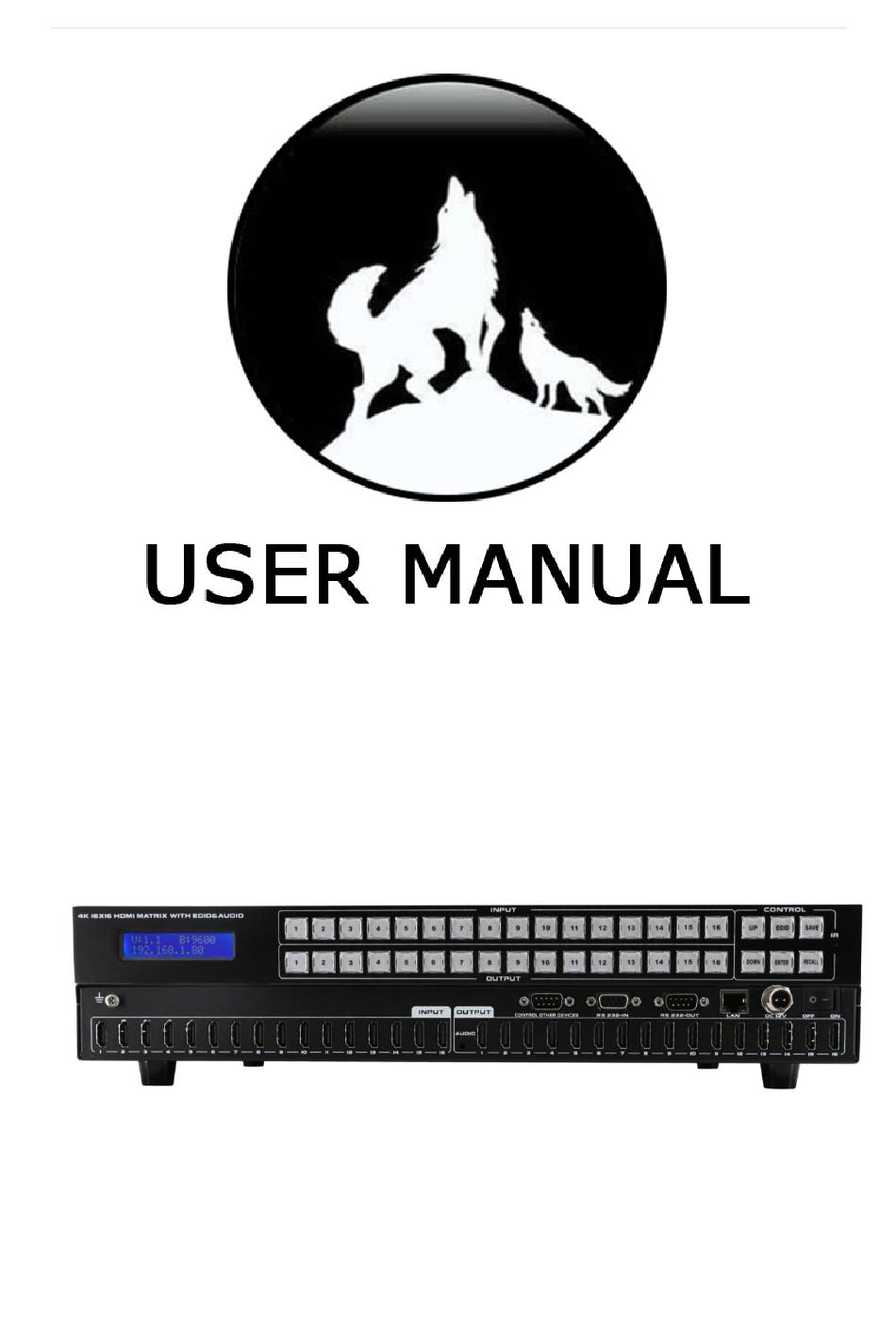

- Page 1 P a g e WolfPack 4K 30 Hz 16x16 HDMI Matrix Switch with Apps & WEB GUI Part Number: HDTVFIX1600E Version: V24.09 HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com...
-
Page 2: Table Of Contents
Switch any inputs to all outputs: ................7 APP control ........................7 WEB GUI browser Control (the below is based on the firmware version v3.2) 11. Common Problem Shooting ..................12 After-Sales ..........................13 HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com... - Page 3 10. Supports to rename the inputs and outputs Specification WolfPack 4K 30 Hz 16x16 HDMI Matrix Switch with Apps & Name WEB GUI Resolution 480p, 576p, 720p, 1080i, 1080p@24/30/50/60Hz, Input ports 16 * HDMI ports, 1* RS-232(control), 1 * RJ-45(control) 4K@30Hz, HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com...
-
Page 4: Connection Diagram
AC: 100VAC ~ 260VAC, 50/60 Hz, DC:12V 5A LAN control Dimension(mm) 480 * 252 * 44( mm) Weight 3.5Kg Operating 0 ºC~40 ºC/32 ºF~104 ºF Temperature Storage −20 ºC~60 ºC/−4 ºF~140 ºF Temperature Connection Diagram HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com... -
Page 5: Packing
SAVE: Press to save the switching status. Down:for upward controlling ENTER: Press to confirm to save the setting. RECALL: Press it to recall the presets/scenes. ⑤ IR: IR receiver for the IR remote control Back panel HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com... -
Page 6: Matrix Switcher Control
Channel switching: Press the input from number “0~9”, then press the output from number“0~9”, can press the outputs continually. Eg. Switch input 1 to output 1, 2, 3: INPUT 1 OUTPUT 1, 2, 3 HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com... -
Page 7: Switch Any Inputs To All Outputs
“MCS”, then need to make sure the Matrix switcher is connected to the WIFI router and the mobile devices is connected to the same WIFI. The default IP address of the matrix switcher is 192.168.1.80. Open the APP and Enter the IP address of the matrix switcher: HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com... - Page 8 The default user name is admin and the password is admin. After login, it will turn to “Home” interface, users can do the sources switching, scenes recall, save and the other devices control here. HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com...
- Page 9 Control tab is to configure the RS232 commands to control other devices: Caption tab is from users to change then input, output, scene and control names: Users can change input, output and Scenes names here, up to 8 characters. HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com...
- Page 10 EDID setting tab for users to select or setup the EDID for the specific inputs Setup interface for users to do the IP address, COM baud rate and buzzer settings: *WEB upgrade is for getting into the system upgrade page. HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com...
- Page 11 Switch 1 to all outputs: 1all. Yall. outputs Switch input 2 to output YxY. Switch input Y to output Y 9:2x9. Switch input 3 to output 2, 3, YxY.YxY.YxY. Switch input Y to output Ys 4:3x2.3x3.3x4. HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com...
-
Page 12: 11. Common Problem Shooting
Signal interference: Make sure the cables and plugs are connected well, the cables meet the requirements, the system is ground connected well, the AC power between devices have the same grounding system; Accidental damage：Sent back to the manufacturer for recondition. HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com... -
Page 13: After-Sales
Company or its authorized agent, the company will not have to bear additional obligations. Except using the product properly in the proper application or normal usage. HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com... - Page 14 We are committed to providing you with the highest level of service. Contact Details: Phone: 833-WOLFPACK (833-965-3722) Email: customerservice@hdtvsupply.com support@hdtvsupply.com Website: www.hdtvsupply.com Our team is ready to assist with any questions or concerns you may have. HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com...
