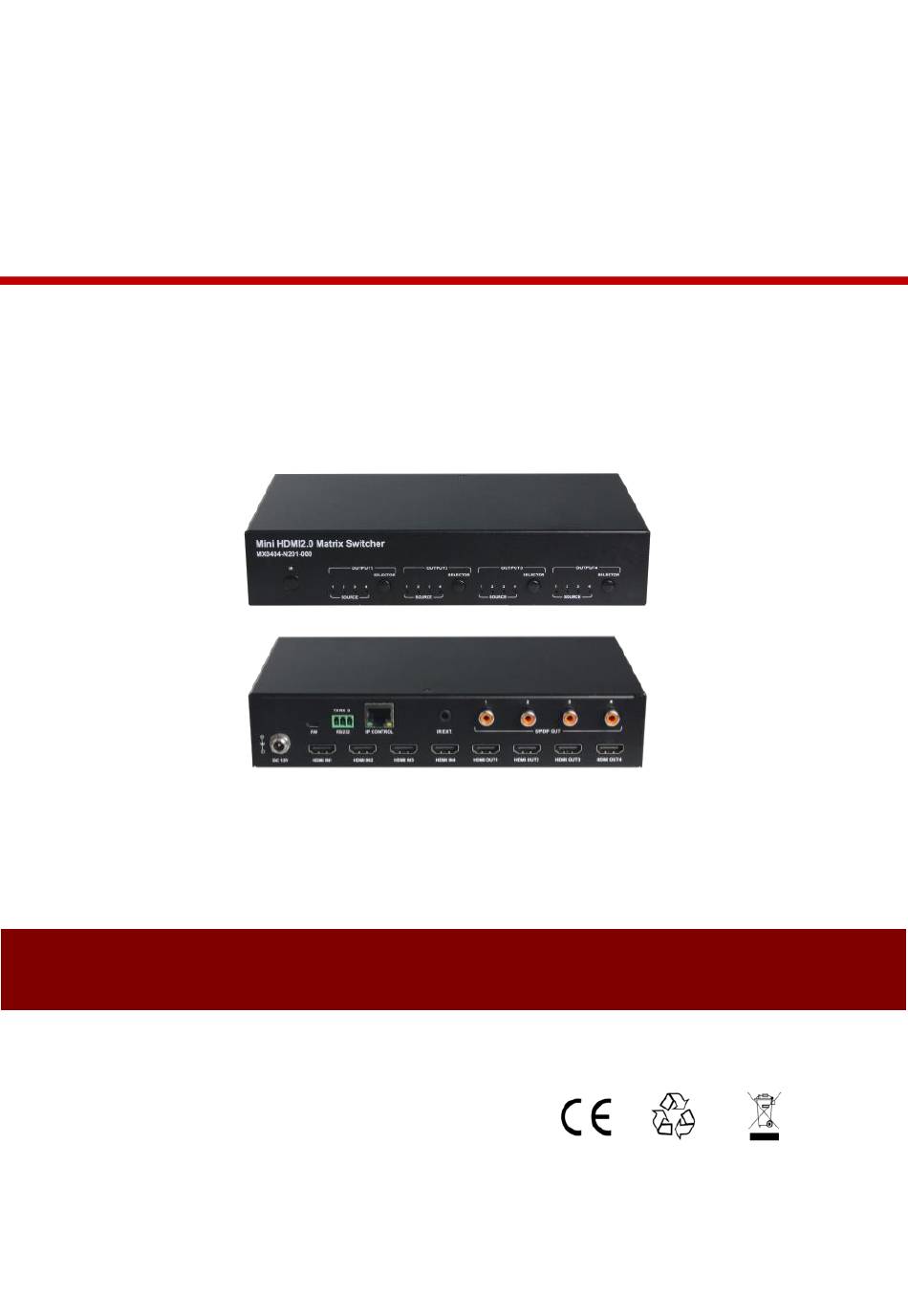

- Page 1 HDTV-0404N201 4x4 HDMI Matrix with Audio Outputs User Manual Version: V1.0.0 V1.0.3...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................... 2 Overview ....................2 Features ....................2 Package Contents ..................3 Specifications .................... 4 Panel Description ..................5 Front Panel..................5 Rear Panel ..................6 Installation and Wiring ..................7 Installation ..................7 Wiring ....................7 IR Remote Control .................... -
Page 3: Introduction
Introduction Overview This product is a 4x4 compact HDMI matrix switcher, specially designed for cost conscious projects and buyers. It features not only basic functions like cross-point switching and control (IR, RS-232, IP), but also advanced functions like auto-downscaling for each HDMI output when it is connected to 1080P display. -
Page 4: Package Contents
Rich control options, include RS-232, IR, web UI and front panel buttons. Package Contents 1 x Matrix 1 x DC 12V Power Adapter with US Pins 1 x IR Remote 1 x IR Receiver Cable ... -
Page 5: Specifications
Specifications Technical 4 x HDMI IN, 4 x HDMI OUT, 1 x RS-232, Input/Output Port 1 x IP Control (RJ45), 4 x S/PDIF OUT (Digital), 1 x FW (Micro USB), 1 x DC 12V IN HDMI with 4K@60Hz 4:4:4, HDR 10, HLG & Dolby Vision, Input/Output Signal HDCP 2.2... -
Page 6: Panel Description
Transmission Distance Cable Type Range Supported Video Input: 15m/50ft 1080P@60Hz 24bpp Output: 10m/33ft HDMI 4K@30Hz 4:4:4 24bpp Input/Output: 10m/33ft 4K@60Hz 4:2:0 24bpp Input/Output: 3m/10ft 4K@60Hz 4:4:4 24bpp Panel Description Front Panel Name Description IR Window Receive IR signals. INPUT LED On: The current HDMI input is selected. -
Page 7: Rear Panel
Rear Panel Name Description DC 12V Connect to the DC 12V power adapter provided. HDMI IN 1-4 Connect to HDMI sources such as Blu-ray Player. HDMI OUT 1-4 Connect to HDMI displays. For firmware upgrade. Connect to a control PC or control system for RS232 RS232 serial control. -
Page 8: Installation And Wiring
Installation and Wiring Installation Note: Before installation, please ensure the device is disconnected from the power source. Steps to install the matrix on a suitable location: Attach the installation bracket to the enclosure using the screws provided in the package separately. The bracket is attached to the enclosure as shown. - Page 9 Connect S/PDIF OUT Connect audio devices to S/PDIF OUT (1-4) ports, S/PDIF OUT ports can output audio de-embedding from HDMI OUT 1-4. Connect for additional control options: RS232 control: Connect a control PC or control system to RS232 port of the matrix. ...
-
Page 10: Ir Remote Control
IR Remote Control You can switch among multiple inputs for each output display by pointing the matrix IR remote directly at the IR window on the front panel or the IR receiver connected to the rear panel. Steps for IR Remote Operation: Point the matrix IR Remote directly at the IR window on front panel or at the IR receiver connected to the rear panel. - Page 11 Select previous input Select next input for Output 1 for Output 1 Output 1 Select specific input for Output 1 To cycle through multiple inputs for your target output, press the previous ( ) or next ( ) button. Virtual IR Code Supported by Default (Matrix Switching Code): Code IN 3 IN 4...
-
Page 12: Access The Web Interface
Before executing the API command through RS232 serial connection, please ensure RS232 interface of the device and the control PC are configured correctly. Parameters Value Baud Rate 115200 bps Data Bits 8 bits Parity None Stop Bits 1 bit Flow Control None Web UI Control The Web UI designed for the matrix is available for switching control, general... -
Page 13: Web Interface Introduction
Web Interface Introduction The main screen includes General and Advanced Setting. General The General Page includes: Switch, EDID, EDID Read, CEC, Audio Mute, HDCP, Preset. Switch The Switch section manages distribution of input sources to output displays. By default, Input 1 corresponds to Output 1, Input 2 corresponds to Output 2, Input (n) corresponds to Output (n), n = 1, 2, 3, 4. - Page 14 ALL: Click to switch INPUT (n) for all OUTPUTs. EDID This section allows you to configure EDID settings of each input port. Select the item from the drop-down menu, then click “Apply” to take effect. Note: If EDID copy fails, the input EDID will be 4K@30Hz 2.0ch audio. By default, input EDID is set as 4K@60Hz 5.1ch audio With HDR.
- Page 15 Select Port: Click from the drop-down menu to choose an Output/Input port (1-4) for EDID setting. Read: Click to read the EDID of the Output port you choose. Write: Click to write the read EDID of the Output port or the uploaded EDID to the selected Input.
- Page 16 Output Port: Select one OUTPUT (1-4) port or all from the drop-down menu to control. Note: When Output port is set to “all”, the Auto CEC and Delay Time (min) settings are disabled. Manual (ON/OFF): Click “ON/OFF” button to power on/off the CEC-enabled display immediately.
-
Page 17: Advanced
HDCP HDCP Support allows you to enable or disable HDCP compatibility of each input. By default, HDCP Support is switched ON at each input and content protected by HDCP standard will be received. Preset The Preset section saves or loads the General settings to or from the matrix. Advanced The Advanced page includes: Network, Login Password, Custom Web UI Logo, WEB Firmware Upgrade, ARM Firmware Upgrade, MCU Firmware... - Page 18 by the DHCP server connected. Static: When enabled, set up the IP address manually. Apply: Click to enable the network setting. The default setting is DHCP. Note: When “Static” is selected, please ensure your PC is in the same network segment as the Matrix, i.e.
- Page 19 To create customized Web UI logo: Click “Browse” button to browse the LOGO file. Click “Apply”, When the operation is successful, the new logo will appear on the upper left corner of the screen and the login page. WEB Firmware Upgrade Click “Browse”...
- Page 20 MCU Firmware Upgrade Click “Browse” for the update bin file. Click "Upgrade" to start the MCU Firmware upgrade. The matrix will upgrade and reboot automatically when upgrading MCU is completed. Please wait for about 30s and then refresh and log in again. Note: Do not power off the device when upgrading.
- Page 21 Note: Please wait about 30 seconds to re-access Web UI by refreshing the browser. To reboot the device: Click the “Reboot” icon, the following window will be popped up, click “Ok” to reboot the device.
- Page 22 Note: Please wait about 30 seconds to re-access Web UI by refreshing the browser. Firmware Version This section allows you to obtain information of the current firmware in use.
