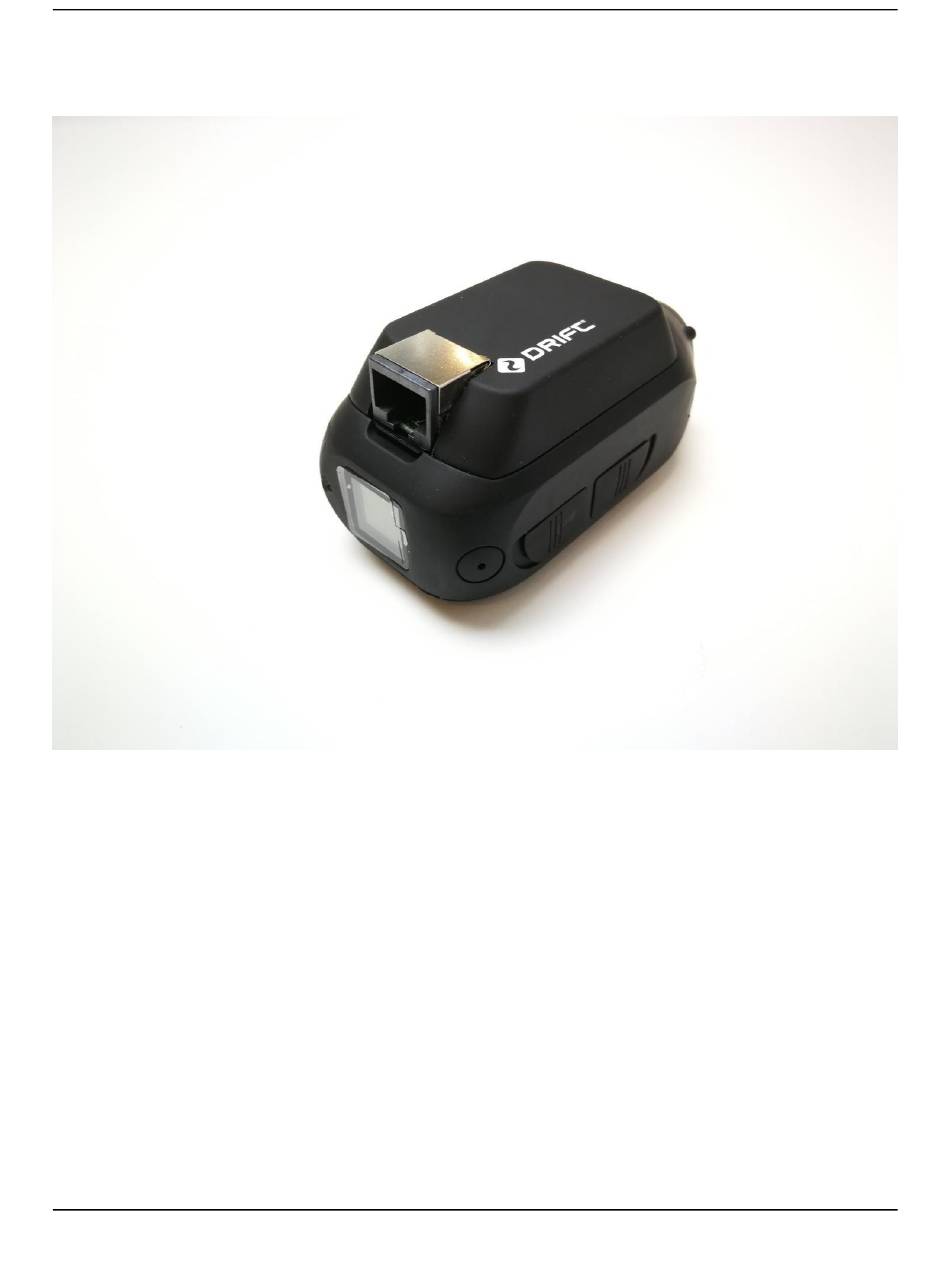

GHOST N1 QUICK GUIDE
Thank you for purchasing the Drift GHOST N1
CUSTOMER SUPPORT
Download the full manual and check our official website for firmware updates, customer support, and
info on all of our products.
https://driftinnovation.com/
If you have any suggestions, comments or concerns; please contact our customer support team at:
sales@driftinnovation.com
WARRANTY
Warranty does not apply if the product is damaged due to physical abuse, mishandling, accident, fire,
frostbite, water damage, negligence or failure to follow the supplied operating instructions. For more
information on warranty, see:
https://driftinnovation.com/warranty
Version: 1.0.0.0
Updated: 2021-01-05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GHOST N1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DRIFT GHOST N1

Summary of Contents for DRIFT GHOST N1

  • Page 1 GHOST N1 QUICK GUIDE Thank you for purchasing the Drift GHOST N1 CUSTOMER SUPPORT Download the full manual and check our official website for firmware updates, customer support, and info on all of our products. https://driftinnovation.com/ If you have any suggestions, comments or concerns; please contact our customer support team at: sales@driftinnovation.com...

  • Page 2: Table Of Contents

    CONTENTS Product Specification Package Contents Installing the Ethernet Module Power On/Off Mode Navigation Settings Mode Drift Life App How to Access Real-Time Video Remote Control & Setup 10. Auto Detection in a Network Product Specification: Livestream resolution 4K(4096*2160 17:9) :...
  • Page 3 1. Remove the original battery module from your Ghost 4K+ camera. 2. Place Drift Ethernet Module on the camera body, ensuring that the module’s 30pin connector is above the camera’s female connector, press down on both ends simultaneously till the module clicks into place.

  • Page 4: Power On/Off

    3 seconds. If Ghost N1 is connected with an Ethernet cable, it will automatically power on once POE is applied. Removing the POE will turn off camera instantly. Once the ethernet cable is connected and the camera is powered on, the Ghost N1 will automatically join the network through DHCP protocol.
  • Page 5 scroll down through the menu options, or press and hold to navigate up. Use to change options for the highlighted setting. At any time, press the button to return to Video mode. HD Record On/Off Field Of View 140/115/90 Exposure 0/1/2/-1/-2 Bitrate High/Middle/Low...

  • Page 6: Drift Life App

    Download the Drift Life App Install “Drift Life” App and Setup your livestream from your mobile devices. Connecting to a PC 1. Connect the camera using the USB cable (provided); the camera screen will show a USB icon. 2. The camera’s folder may open automatically; if not, open using My Computer.

  • Page 7: Remote Control & Setup

    Open VLC on your PC, navigate to media / open network streaming, input below texts “rtsp://192.168.4.148/live” in the URL dialog , where "192.168.4.148" is your camera’s IP address. Click on the “Play” button, you should see the live video from your camera instantly. Remote Control &...
  • Page 8 http://192.168.4.148/cgi-bin/foream_remote_control?stream_res=0 where the value of stream_res can be: Ghost 4K+: 0(4K), 1(4KUHD), 2(2.7K), 3(1080P), 4(720P),5(WVGA). 5. Setup Livestream Bitrate http://192.168.4.148/cgi-bin/foream_remote_control?stream_bitrate=1000000 where stream bitrate value is in Byte, 1000000 means 1Mbyte, 8Mbps. Note: maximum 45Mbps (value = 5625000) can be configured for Ghost 4K+ 6.
  • Page 9 http://192.168.4.148/cgi-bin/foream_remote_control?exposure=1 where the value: 0 stands for 0, 1 stands for 1, 2 stands for 2, 3 stands for -1, 4 stands for -2. 14. Set Camera Filter http://192.168.4.148/cgi-bin/foream_remote_control?filter=1 where the value: 0 stands for Normal, 1 stands for Vivid and 2 stands for Low Light 15.
  • Page 10 return camera status and setting in XML, for example: <?xml version="1.0" encoding="utf-8"?> <Response> <Status>1</Status> <Cam_Status> <camera_status> <capture_mode>0</capture_mode> <battery>1</battery> <sd_free>31150080</sd_free> <sd_total>31154688</sd_total> <rec_time>0</rec_time> <fw_ver>8022</fw_ver> <model_name>N1</model_name> </camera_status> <video_setting> <res>2</res> <framerate>30</framerate> <bitrate>2000000</bitrate> <quality>2</quality> </video_setting> <stream_setting> <stream_res>2</stream_res> <stream_framerate>30</stream_framerate> <stream_bitrate>2000000</stream_bitrate> </stream_setting> <camera_setting> <dzoom>0</dzoom> <filter>0</filter> <exposure>0</exposure> <mic>3</mic> <led>1</led>...

  • Page 11: Auto Detection In A Network

    full and the recording is not allowed. <sd_total> means the total size of TF card capacity in KB. <rec_time>: 0 means camera is in idle mode, otherwise it stands for current recording time. <fw_ver> the FW verson. <model_name> the model name of camera <hd record>: 0 means it’s now in live streaming mode，...
  • Page 12 (mobile or PC) in the same network. The package contains the necessary info for the device to establish the connection. Once connected, the device can issue http command to Drift camera for further actions, the following are the details of how the connection can be established.
