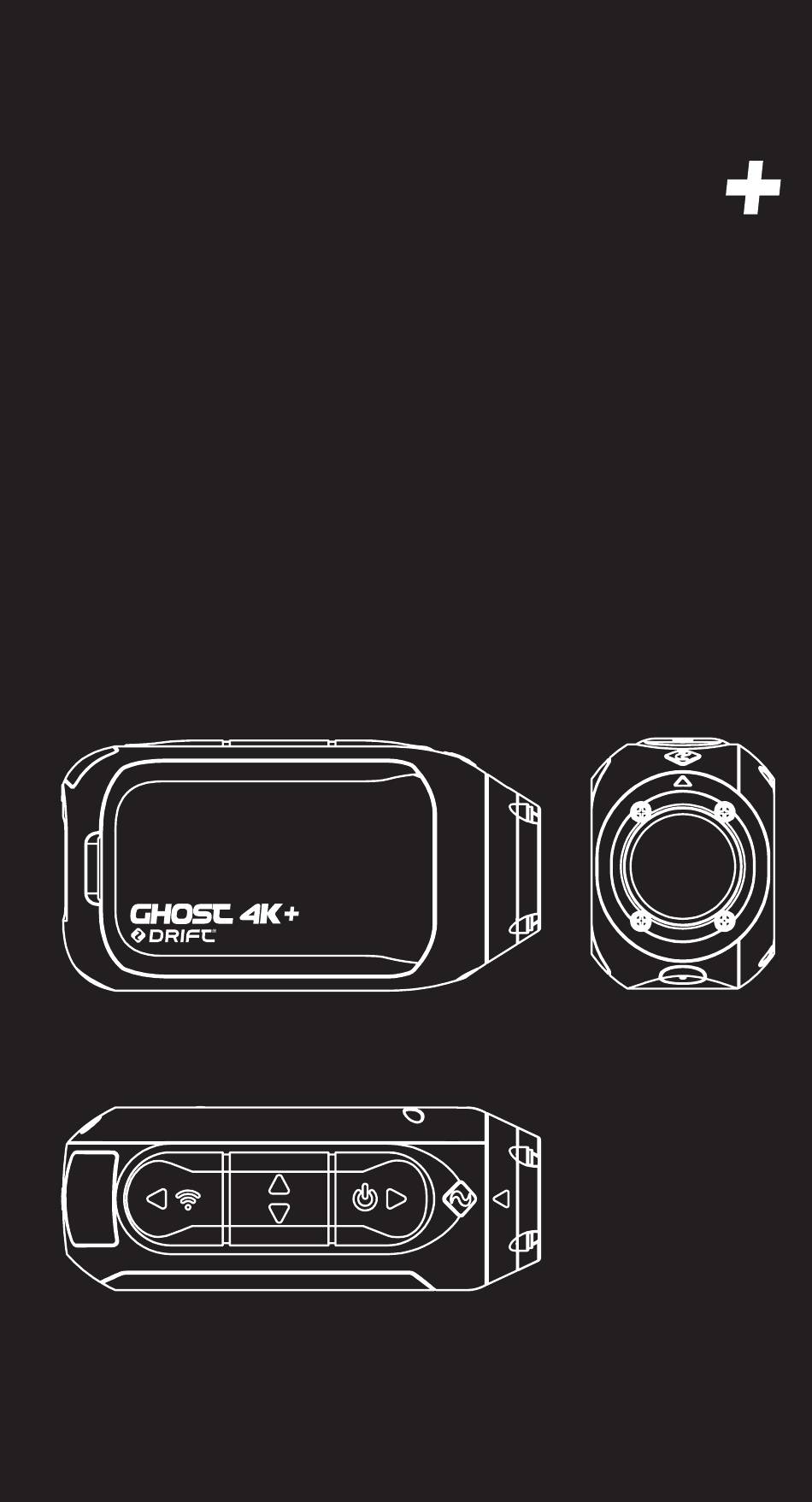

- Page 1 GHOST 4K Quick Guide...
-
Page 2: Table Of Contents
Thank you for purchasing the Drift Ghost 4K+ CUSTOMER SUPPORT Download the full manual and check our official website for firmware updates, customer support, and info on all of our products. https://driftinnovation.com/ If you have any suggestions, comments or concerns;... - Page 3 About Your Camera Wi-Fi LED Rear Button Rear Screen Middle Button Dual microphones Front Button Reset Button Status LED MicroSD Card Slot Rotating Lens 10 Pin Mini USB Port Battery Module Rubber Cover Module Latch...
- Page 4 Package Contents Ghost 4K+ Camera Universal Clip External Microphone Curved Adhesive Mount USB-Mic Converter MiniUSB Cable Reset Tool...
- Page 5 Initial Setup Uncover the microSD slot by lifting its rubber cover. Insert a Class 10 or higher microSD/HC/XC card (up to 128GB). Format before first usage! Uncover the mini USB port by lifting its rubber cover. Connect the camera via a mini USB cable to a powered USB port, and charge the battery for 2.5 hours before first use.
- Page 6 Getting Started POWER ON/OFF Press and hold the button to power on. The Rear Screen will power on, showing the welcome display. The camera is now ready to record video or take photos. Current camera mode is indicated by the colour of the Status LED and Rear Screen, along with the icon in the top left of the Rear Screen.
-
Page 7: Camera Modes
Camera Modes VIDEO MODE (Green LED) Press the button to start recording. The Status LED and LCD backlight will flash red to indicate recording. Press button again to stop recording. VIDEO SETTINGS • Resolution • Frame Rate PHOTO MODE (Yellow LED) The camera will capture still images when the button is pressed, and the status LED and LCD screen will flash red each time a photo is captured. -
Page 8: Settings Menu
Settings Menu SETTINGS MENU NAVIGATION On arrival to the settings menu, the highlight black box rests on the top, highlighting the Settings Menu icon as the starting position. Press the button to navigate down, this highlights the next setting. Press hold the button to scroll upwards. -
Page 9: Settings
Settings Wi-Fi OFF / ON Wi-Fi Frequency 2.4 / 5.8 GHz DVKit OFF / ON DVKit Reset YES / NO Field of View 90° / 115° / 140° Exposure -2 / -1 / 0 / +1 / +2 Self Timer OFF / 3S / 5S / 10S Bit Rate HIGH / MEDIUM / LOW... - Page 10 Mounting the Camera Attach the Universal Clip to the camera in any 360° orientation as needed – first position the clip in the desired orientation, then secure by rotating the screw base by hand. Slide the Universal Clip into your chosen mount, ensuring that it ‘clicks’...
-
Page 11: Feature Overview
Feature Overview CLONE MODE Link two or more Ghost 4K+, Ghost XL, Ghost X or Ghost 4K cameras into a single network wirelessly controlled by one master camera. To set up clone mode: -Navigate to the ‘Clone Mode’ option in the settings menu, and press the button to select. - Page 12 “tagged” footage. The Video Tagging feature requires a class 10 micro SD card with 4GB of free space to function correctly. INSTANT ON MODE Enabling Instant On Mode allows the camera to turn on, and start recording with a single press of the button.
-
Page 13: Accessory Guide
Mountable anywhere at nearly any angle, the Drift Pivot Mount is your tool to capture the moment from any point of view you can imagine. Includes flat and curved adhesives, and can be used together with any other Drift mount. HANDLEBAR MOUNT The Drift handlebar mount is the perfect accessory for riders, whatever your discipline. -
Page 14: Wi-Fi + Firmware
Setup your shot, capture, playback, edit and live stream on your mobile device. INSTALLING FIRMWARE Download the latest firmware from the Drift website and copy the Ghost_4K+.bin file into the root of a formatted micro SD card. Insert the micro SD card into the camera and power on. - Page 15 Connecting Your Camera CONNECTING TO A PC Connect the camera using the USB cable (provided); the camera screen will show a USB icon. The camera’s folder may open automatically; if not, open using My Computer. The camera should be recognised as a removable disk;...
-
Page 16: Specifications
Specifications Video Resolution and Frame Rates: 4K (4096 X 2160 17:1) 24 / 25 FPS 4K UHD (3840 X 2160, 16:9) 24 / 25 / 30 FPS 2.7K (2704 X 1520 16:9) 24 / 25 / 30 / 50 / 60 1080P (1920 X 1080 16:9) 24 / 25 / 30 / 50 / 60 / 100 / 120 FPS... - Page 17 Power: 1500mAh internal,450mAh modular battery included. 2.4GHz & 5.8GHz Wi-Fi Frequency: 43 (W) x 82.2 (L) x 31.4 (D) mm Camera Dimensions: 120g Weight: Windows XP and up / Mac Compatibility: OS 10.2 and up For 4K viewing a monitor capable of playback is required.For viewing / editing minimum requirements include: 8GB...
-
Page 18: Disclosures
Disclosures FCC/CE Information These limits are designed to provide reasonable protection against This device complies harmful interference in with Part 15 of the FCC a residential installation. Rules. This equipment Operation is subject generates, uses, and can to the following two radiate radio frequency conditions: energy and, if not... - Page 19 Increase the separation Canadian ICES-003. between the equipment Son fonctionnement and the receiver; est soumis aux deux conditions suivantes: (1) cet appareil ne peut Connect the equipment pas causer l’intervention, into an outlet on a circuit different from that which the receiver is (2) cet appareil connected;...
- Page 20 MOTORCYCLE environment. DISCLAIMER This equipment should be installed and operated with minimum Interacting with the distance 20cm between camera while riding the radiator & your body. could cause a crash, which may lead to serious injury or death to yourself or others. •...
