Summary of Contents for Happybeds Cooper Fabric Bed 4FT6
Page 1

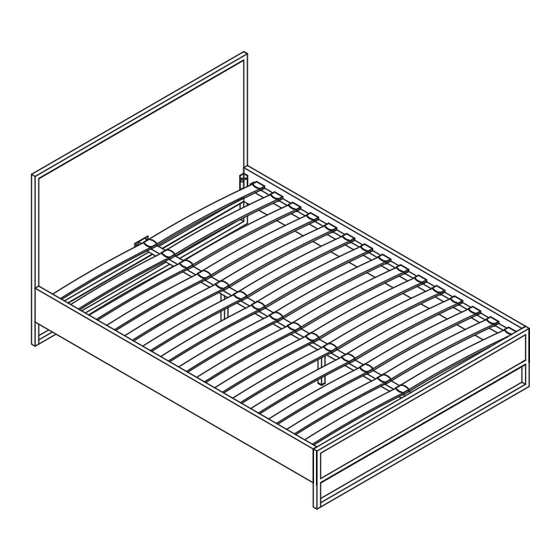

Cooper Fabric Bed - 4FT6, 5FT & 6FT Double & King Super King Assembly Instructions Important before assembly: Please read these instructions carefully before assembling or using the product. Please check the contents of each box before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
Page 2
These tools are not necessary, but may help to assemble the product. Do NOT use any power tools as this may damage the frame. (Not metal) This product or some parts of this product will be heavy. Please use an assistant when lifting. Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints.
Page 3
No Part List No Part List Headboard 1 pc 28 pcs Double 30 pcs Footboard 1 pc Wooden slats King Side rails 2 pcs 45 pcs Super King 1 pc 28 pcs Double & King Double Centre bar Single plastic caps 30 pcs 2 pcs Super King...
Page 4
Step 1: Bolt sets (M8x20mm) 16 pcs Angle Brackets - RH 2 pcs Angle Brackets - LH 2 pcs Allen Key for M8 bolts 1 pc A x2 A x2 A x2 A x2 4 pcs Step 2: Double & King Bolt sets Allen Key for M8 bolts 1 pc...
Page 5
Step 3: 4 pcs Double & King Bolt sets Allen Key for M8 bolts 1 pc (M8x20mm) 8 pcs Super King Double & King & A x2 Super King Make certain the bed is squared up as shown in the diagram then tighten all bed assembly bolts 100%.
Page 6
Step 4: Double & King Fix wooden slats (6) to double plastic caps (8). Fix single plastic caps (7) to each end. Then connect onto centre bar (4) & metal support rails of side rails (3) by gently pushing lugs down into the holes. Super King Page 5 of 6...
floor as this will cause damage to the joints and could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes We’ve tried to make this product as easy to assemble as possible. In the unlikely event that...
