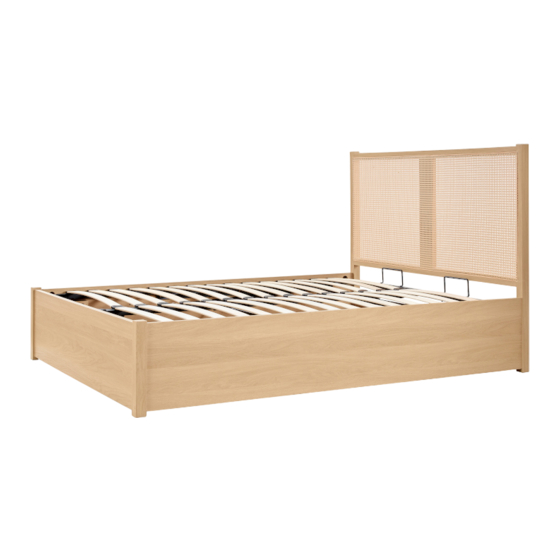

Carson Ottoman bed
Assembly Instructions
Important before assembly:
Please read these instructions carefully before assembling or using the product.
Please check the contents of each box before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
Assemble the product as close to its intended final location/room as possible.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Further instructions are on the following pages.
Please keep these instructions for future reference.
Page 1 of 11
Advertisement
Related Manuals for Happybeds Carson
Summary of Contents for Happybeds Carson

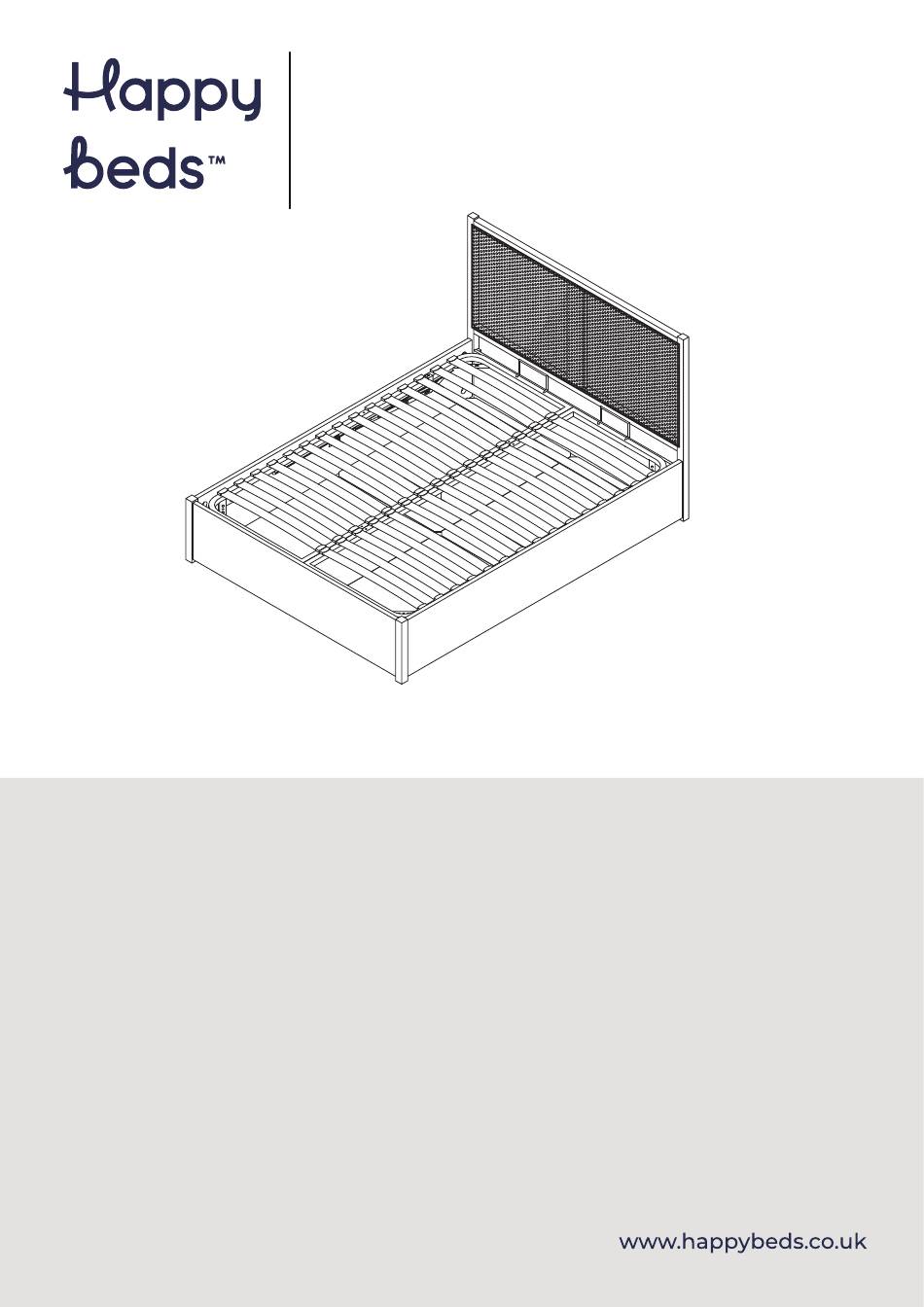

- Page 1 Carson Ottoman bed Assembly Instructions Important before assembly: Please read these instructions carefully before assembling or using the product. Please check the contents of each box before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
- Page 2 These tools are not necessary, but may help to assemble the product. Do NOT use any power tools as this may damage the frame. (Not metal) This product or some parts of this product will be heavy. Please use an assistant when lifting. Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints.
- Page 3 Important for Ottoman and other gas lift beds Please follow these final steps to ensure the best experience with your new bed • Please ensure the pistons are fitted to the bed frame. • Please place the mattress on top of the bed frame. •...
- Page 4 No Part List No Part List Headboard 1 pc Mattress stoppers 2 pcs Footboard 1 pc Slat frame cross bar 1 pc 1 pc Legs Side rails cross bar 1 pc 1 pc Side rail - LH 1 pc Gas-lift mechanism-LH Side rail - RH 1 pc 1 pc...
- Page 5 HARDWARE NEEDED FOR BED ASSEMBLY (PACK A) Hardware List Hardware List Threaded stud 12 pcs Dowel (Ø8x30mm) 12 pcs (M8x80mm) Nuts for M8 stud 12 pcs Bolt (M8x35mm) 6 pcs Spring washer for Flat washer (M8x14x1.5 mm) 18 pcs 12 pcs M8 bolt and stud for M8 stud Flat washer (M8x19x1.5 mm)
- Page 6 Step 1: Threaded stud 8 pcs (M8x80mm) A x4 Step 2: Flat Washer Spring Washer 4 pcs 4 pcs Half-moon bracket Dowel 4 pcs 4 pcs Spanner for M8 nut Nuts for M8 stud 4 pcs 1 pc F x4 H C G Page 4 of 11...
- Page 7 Step 3: Threaded stud Flat Washer 4 pcs 2 pcs (M8x80mm) Allen Key Bolts (M8x35mm) 2 pcs 1 pc Spring Washer 2 pcs A x4 Step 4: Flat Washer Bolts (M8x35mm) 4 pcs 4 pcs Spring Washer 4 pcs Allen Key 1 pc Page 5 of 11...
- Page 8 Step 5: Flat Washer Spring Washer 8 pcs 8 pcs Half-moon bracket Dowel 8 pcs 8 pcs Nuts for M8 stud 8 pcs Spanner for M8 nut 1 pc H C G F x8 Make certain the bed is squared up as shown in the diagram then tighten all bed assembly bolts 100%.
- Page 9 Step 7: 2 pcs Flanged M8 lock-nuts Spanner for M8 nut 1 pc Step 8: Bolts (M8x35mm) 1 pc Allen Key 1 pc Spring Washer 4 pcs Bolt (M8x25mm) 4 pcs Support block for Flat Washer 5 pcs 1 pc side rail cross bar &...
- Page 10 Step 9: Flat Washer Bolt (M8x35mm) 8 pcs 8 pcs Spring Washer 8 pcs Allen Key 1 pc Step 10: Flat Washer Spring Washer 6 pcs 6 pcs Allen Key 1 pc 6 pcs Bolt (M8x25mm) Metal connection 2 pcs plates Page 8 of 11...
- Page 11 Step 11: Spring Washer Allen Key 6 pcs 1 pc Flat Washer 6 pcs 12 pcs Nuts for M8 stud 1 pc Spanner for M8 nut 6 pcs Bolt (M8x50mm) Step 12: Allen Key 1 pc Spanner for M8 nut 1 pc 100% Page 9 of 11...
- Page 12 Step 11: Flanged M8 lock-nuts 2 pcs 1 pc Spanner for M8 nut WARNING: ONLY USE THE HANDLE TO LIFT & TO AVOID ACCIDENTS LOWER THE BED FRAME TO TO ACCESS THE STORAGE AREA THE OTTOMAN FRAME MUST BE FULLY OPENED AND THEN FULLY CLOSED AFTERWARDS AVOID TRAPPING FINGERS! Note: Be very careful what you store under the bed -...
-
Page 13: Technical Specifications
floor as this will cause damage to the joints and could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes We’ve tried to make this product as easy to assemble as possible. In the unlikely event that...
