P04-KNX-GPS
Weather Station
Item number 71230
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P04-KNX-GPS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elsner P04-KNX-GPS

Summary of Contents for Elsner P04-KNX-GPS

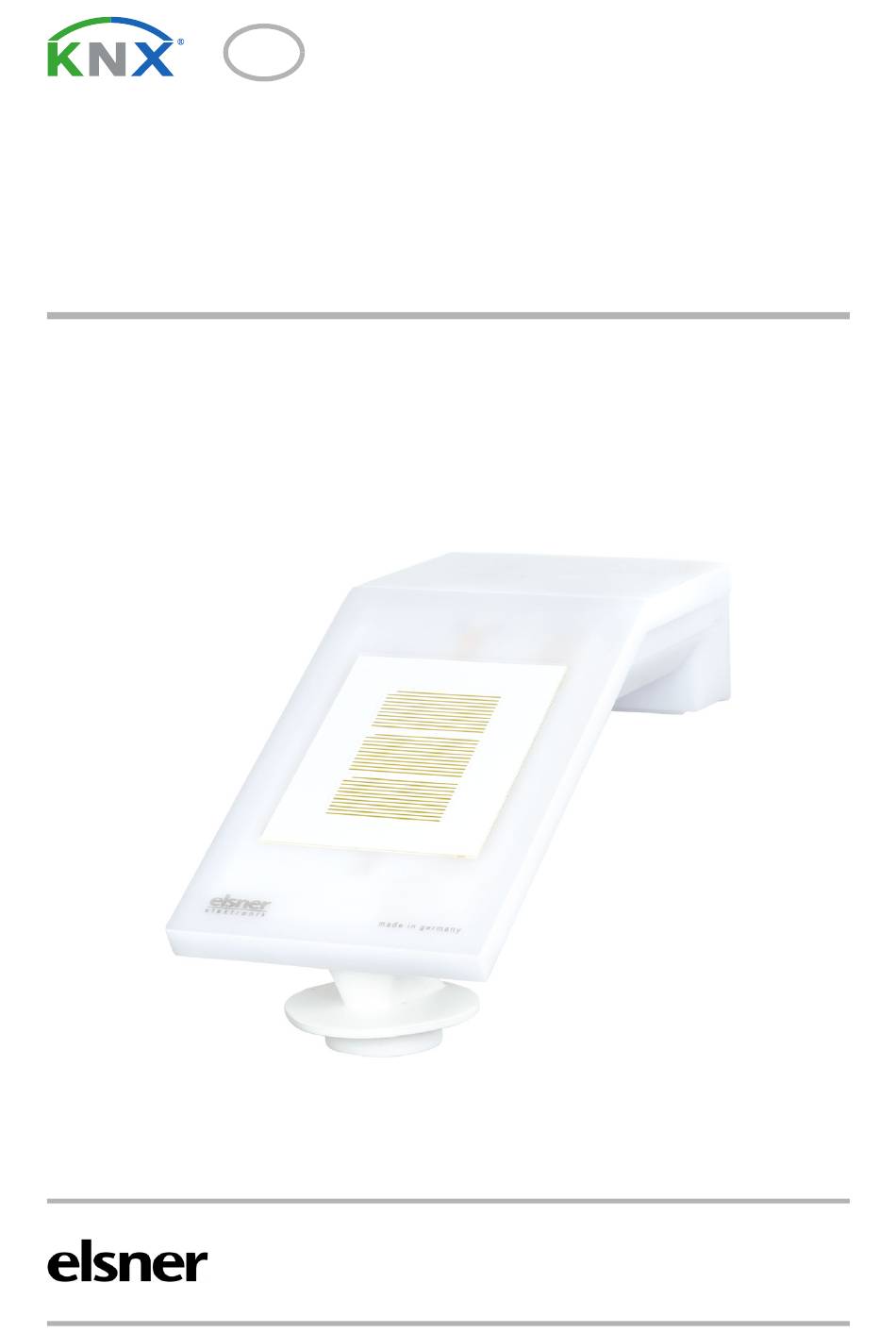

  • Page 1 P04-KNX-GPS Weather Station Item number 71230 Manual...

  • Page 3: Table Of Contents

    6.6. Brightness measurement value ................12 6.7. Wind measurement ....................12 Elsner Elektronik GmbH • Sohlengrund 16 • 75395 Ostelsheim • Germany Weather Station P04-KNX-GPS • from software version 1.00, ETS programme version 1.0 Status: 18.03.2024 • Errors excepted. Subject to technical changes.
  • Page 4 The change status (software version and date) can be found in the contents footer. If you have a device with a later software version, please check www.elsner-elektronik.de in the menu area "Service" to find out whether a more up-to- date version of the manual is available.

  • Page 5: Safety And Operating Instructions

    Elsner Elektronik is not liable for any changes in norms and standards which may occur after publication of these operating instructions. For information on installation, maintenance, disposal, scope of deliv- ery and technical data, please refer to the installation instructions.

  • Page 6: Commissioning

    15 mm. Use a thin object to reach the key, e. g. a 1.5 mm² wire. bottom side top side Fig. 1 Programming LED (under the semi-transparent lid) Programming button Weather Station P04-KNX-GPS • Status: 18.03.2024 • Errors excepted. Subject to technical changes.

  • Page 7: Transfer Protocol

    R-CT [1.1] DPT_Switch 1 Bit Temperature sensor: External Input -WCT [9.1] DPT_- 2 Bytes measurement Value_Temp Temperature sensor: Measure- Output R-CT [9.1] DPT_- 2 Bytes ment value Value_Temp Weather Station P04-KNX-GPS • Version: 18.03.2024 • Technical changes and errors excepted.

  • Page 8: Parameter Setting

    "General settings" parameter block. The "Software version" communications object is sent once after 5 seconds. Weather Station P04-KNX-GPS • Version: 18.03.2024 • Technical changes and errors excepted.

  • Page 9: Malfunction Objects

    If there is no reception, GPS fault is 20 min • 30 min • 1 h • 1.5 h • 2 h … recognised after the last reception Weather Station P04-KNX-GPS • Version: 18.03.2024 • Technical changes and errors excepted.

  • Page 10: Location

    E. longitude [degrees, -180…+180] (if input by coordinates is selected) [negative values mean "western longitude"] E. longitude [minutes, -59…+59] (if input by coordinates is selected) [negative values mean "western longitude"] Weather Station P04-KNX-GPS • Version: 18.03.2024 • Technical changes and errors excepted.
  • Page 11 (For user defined summer time rules) (Month) 1 ... 12; 10 (hour) 0 ... 23; 2 (minutes) 0 ... 59 Time shift: hours -12 ... 12; 1 minutes 0 ... 59 Weather Station P04-KNX-GPS • Version: 18.03.2024 • Technical changes and errors excepted.

  • Page 12: Rain

    Delay on rain none • 1 s … • 2 h Delay on no rain 5 min • 1 h… • 2 h (after drying of the sensor) Weather Station P04-KNX-GPS • Version: 18.03.2024 • Technical changes and errors excepted.

  • Page 13: Temperature Measurement Value

    5 s … 2 h; 10 s (if sent periodically) Select whether the minimum and maximum value should be used. Use minimum and maximum value No • Yes Weather Station P04-KNX-GPS • Version: 18.03.2024 • Technical changes and errors excepted.

  • Page 14: Brightness Measurement Value

    5 s ... 2 h; 10 s (if sent periodically) Use maximum value No • Yes Beaufort scale Beaufort Meaning Calm Light air Light breeze Gentle breeze Moderate breeze Weather Station P04-KNX-GPS • Version: 18.03.2024 • Technical changes and errors excepted.
  • Page 15 Parameter setting Beaufort Meaning Fresh breeze Strong breeze High wind Gale Severe gale Storm Violent storm Hurricane Weather Station P04-KNX-GPS • Version: 18.03.2024 • Technical changes and errors excepted.
  • Page 16 Questions about the product? You can reach the technical service of Elsner Elektronik under Tel. +49 (0) 70 33 / 30 945-250 or service@elsner-elektronik.de We need the following information to process your service request: • Type of appliance (model name or item number) •...
