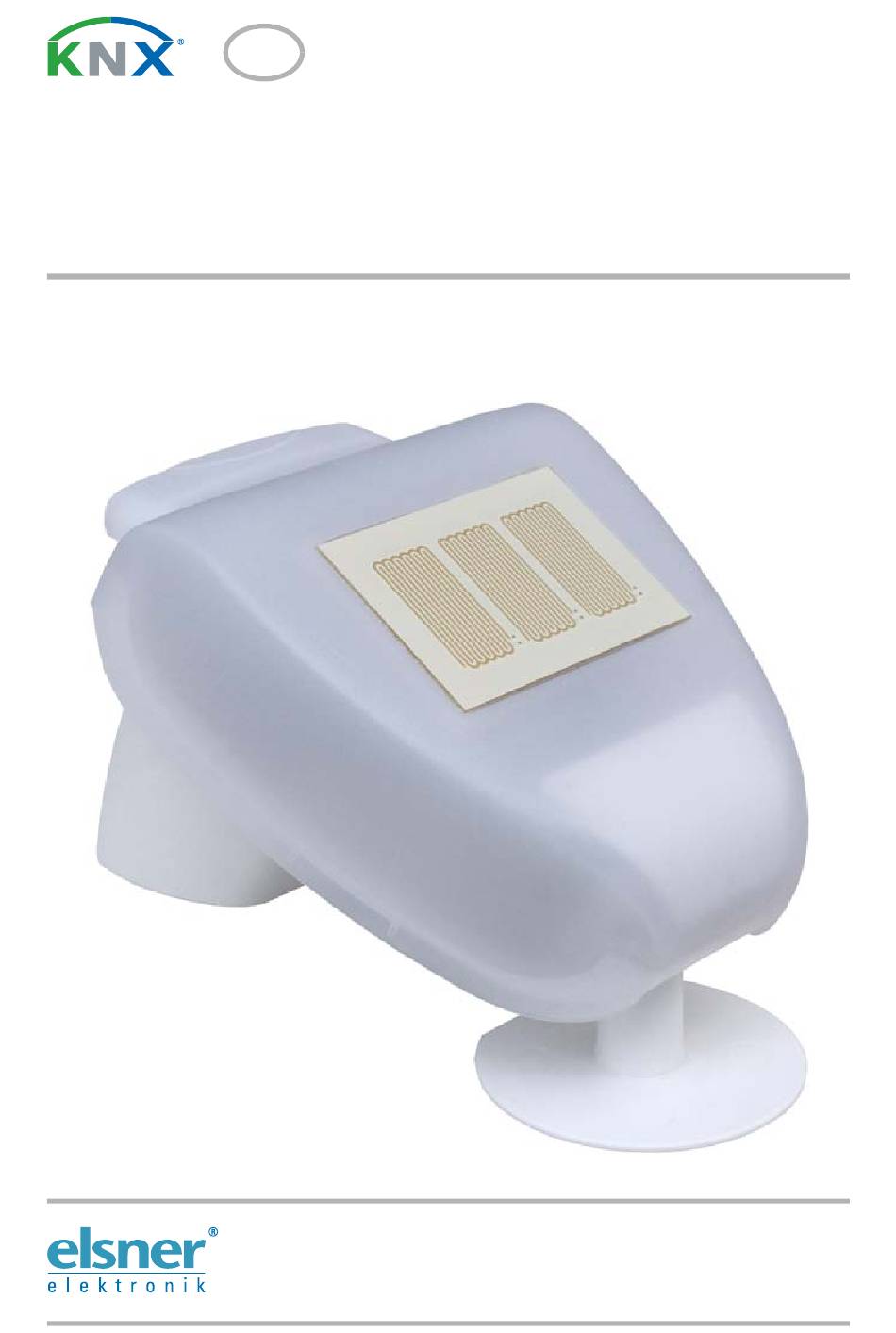

  • Page 1 Suntracer KNX-GPS Weather Station Item number 3093 Installation and Ad justment...

  • Page 3: Table Of Contents

    5.14.Facade actions ......................51 5.15.Calendar time switch ..................... 54 Elsner Elektronik GmbH • Sohlengrund 16 • D-75395 Ostelsheim • Germany Weather Station Suntracer KNX-GPS • from software version 1.00, ETS programme version 1.0 Status: 05.06.2018 • Subject to technical changes. Errors excepted.
  • Page 4 5.17.5. Connection inputs of the OR logic ............. 62 Elsner Elektronik GmbH • Sohlengrund 16 • D-75395 Ostelsheim • Germany Weather Station Suntracer KNX-GPS • from software version 1.00, ETS programme version 1.0 Status: 05.06.2018 • Subject to technical changes. Errors excepted.
  • Page 5 The change status (software version and date) can be found in the contents footer. If you have a device with a later software version, please check www.elsner-elektronik.de in the menu area "Service" to find out whether a more up-to- date version of the manual is available.
  • Page 6 Clarification of signs...

  • Page 7: Description

    Elsner Elektronik website on www.elsner-elektronik.de in the “Ser- vice” menu. 1.1. Technical data Housing Plastic Colour White / Translucent Mounting Surface-mounted Protection rating IP 44 Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.
  • Page 8 423 Lux at 52.364…150.000 Lux Accuracy (brightness) ±20% at 0 lx … 10 klx ±15% at 10 klx … 150 klx The product conforms with the provisions of EU directives. Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 9: Installation And Commissioning

    Elsner Elektronik is not liable for any changes in norms and standards which may occur after publication of these operating instructions.
  • Page 10 The weather station must be mounted on a vertical wall (or a pole). Wall pole Fig. 3 Horizontal The weather station must be mounted in the horizontal transverse direction (horizontally). Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 11: Mounting The Weather Station

    For wall mounting: Flat side to the wall, crescent Collar moon-shaped crosspiece facing up. Fig. 6 For pole mounting: curved side to the pole, crosspiece facing down. Collar Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 12: Rear View And Drill Sketch

    Drill sketch. Dimensions of the rear side of the housing with holder, dimensions in mm. Divergences are possible for technical reasons. Oblong hole 7,5 x 5 mm Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 13: Weather Station Layout

    2.2.3. Weather station layout Unsnap cover and remove upwards Fig. 11 Wind sensor Cover Brightness sensor Cover snaps Rain sensor Bottom part of housing Temperature sensor Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 14: Connection Of The Weather Station

    Voltage and Bus +/- to the terminals pro- vided. Fig. 12 Remove the cable shielding under the circuit board and only feed the connector cables upwards through the openings in the circuit board. Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 15: Layout Of The Circuit Board

    Close the housing by putting the cover back over the bottom part. The cover must snap in on the left and right with a definite “click”. Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 16: Notes On Mounting And Commissioning

    After the auxiliary voltage has been applied, the device will enter an initialisation phase lasting a few seconds. During this phase no information can be received or sent via the bus. Addressing of the device at the bus Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 17: Maintenance

    ATTENTION The device can be damaged if water penetrates the housing. • Do not clean with high pressure cleaners or steam jets. Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 18: Transmission Protocol

    Night: Switching delay to non-night Input 9.010 C R W Temperature measurement value Output 9.001 C R T Temperature measurement value Input 1.017 C R W requirement min./max. Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.
  • Page 19 Temperature TV 4: Absolute value Input / Output 9.001 C R W T U Temperature TV 4: Input 1.002 C R W Change (1:+ | 0: -) Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.
  • Page 20 C R W from 1 to 0 Wind TV 3: Switching output Output 1.002 C R T Wind TV 3: Switching output block Input 1.002 C R W Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.
  • Page 21 Twilight TV 1: Change (1:+ | 0: -) Input 1.002 C R W Twilight TV 1: Switching delay Input 9.010 C R W from 0 to 1 Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.
  • Page 22 Facade 3: Status Output 1.002 C R T Facade 3: Movement position [%] Output 5.001 C R T Facade 3: Slat position [%] Output 5.001 C R T Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.
  • Page 23 Switching output Weekly time switch Tuesday 3: Output 1.002 C R T Switching output Weekly time switch Tuesday 4: Output 1.002 C R T Switching output Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.
  • Page 24 1.002 C R T AND Logic 1: 8-bit output A Output 5.010 C R T AND Logic 1: 8-bit output B Output 5.010 C R T Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.
  • Page 25 1.002 C R T OR Logic 3: 8-bit output A Output 5.010 C R T OR Logic 3: 8-bit output B Output 5.010 C R T Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.
  • Page 26 C R W Logic input 15 Input 1.002 C R W Logic input 16 Input 1.002 C R W Software version readable 217.001 C R T Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 27: Parameter Setting

    „General settings” parameter block. The „Software version” communications object is sent once after 5 seconds. 5.2. General settings Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 28: Gps Settings

    The current date and time can be set initially via the ETS. The weather station uses this data until the first time a valid GPS signal is received. Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 29: Location

    21 towns in the UK Time zone definition standard • specific Summer/winter time change-over on the [Change only possible with „Specific time zone definition”] Rule for summer/winter time change-over Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 30: Rain

    • on change to 1 and periodically • on change to 0 and periodically Transmit cycle 5 secs ... 2 hrs (is only transmitted if „periodically” is selected) Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 31: Night

    (Values are not retained after reset) Use object „temperature sensor No • Yes malfunction” Use threshold value 1 / 2 / 3 / 4 No • Yes Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 32: Temperature Threshold Value 1 / 2 / 3 / 4

    Switching delay from 0 to 1 None • 1 sec … 2 hrs Switching delay from 1 to 0 None • 1 sec … 2 hrs Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 33: Wind

    • transmit on change • transmit on change and periodically On change of 2% • 5% • 10% • 25% • 50% (only if „on change” is selected) Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 34: Wind Threshold Value 1 / 2 / 3

    The last threshold values set by communications objects are saved in the EEPROM, so that they are retained during a power outage and are available once again when power is restored. Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.
  • Page 35 Switching output transmits on change to 0 transmits no message •  if switching output = 0 transmit 0 Switching output transmits upon change transmit switching output status and periodically Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 36: Brightness

    1st communication of a new threshold value. With weather stations that have already been taken into service the last threshold value communicated is used. Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.
  • Page 37 • transmits status of the switching output Switching output transmits on change to 1 transmits no message •  if switching output = 1 transmit 1 Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.
  • Page 38 = 1 transmit 1 to 1 and periodically  Switching output transmits upon change if switching output = 0 transmit 0 to 0 and periodically Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 39: Twilight

    • TV below = 1 | TV + Hyst. above = 0 • TV below = 0 | TV + Hyst. above = 1 Switching delay from 0 to 1 None • 1 sec … 2 hrs Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.
  • Page 40 = 1 transmit 1 to 1 and periodically  Switching output transmits upon change if switching output = 0 transmit 0 to 0 and periodically Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 41: Shading

    (2, 4) must be controlled separately. Curved/round fronts should be divided into several facades (segments) to be controlled individually. Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 42: Shade Settings

    (e.g. with additional KNX W wind sensors), as, depending on the positions of the buildings in relation to one another, different wind speeds may occur. 5.12. Shade settings Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 43: Facade Settings

    For each facade, the shade conditions (brightness, position of the sun) and the facade settings (architectural characteristics such as orientation or slat type) can be specified. Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.
  • Page 44 Parameter setting Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.
  • Page 45 (azimuth) and sun height (elevation). Example Azimuth setting: Top view: In the morning the building is fully shaded by surrounding trees. Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 46: Shadow Edge Tracking

    [0° = no inclination] Window height in cm 1 … 1000 Maximum penetration depth of the sun 10 … 250 into the room in cm Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 47: Slat Tracking

    Using slat tracking with external blinds, the entry of warm air into the room through sunshine can be avoided and, at the same time, energy costs for lighting the room can be reduced. Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.
  • Page 48 The slats are automatically closed further, so that the sun cannot shine in directly. Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 49: Orientation And Inclination Of The Facade

    In order for the slat tracking to set the slats correctly, their width and distance from one another must be known. Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 50: Slat Position With Horizontal Slats

    (α = 0°) but rather form a slight angle with the vertical. With slat tracking, this angle must be determined and specified via the associated parameter. Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 51: Slat Position With Vertical Slats

    Slat position at the beginning of movement UP 5.13.7.Slat position with vertical slats If an internal glare protector or screen with vertical slats is controlled by an Elsner blinds actuator, the position in which the slats are fully open is controlled or reported as the 0% slat position.
  • Page 52 If the glare protector is later retracted (i.e. opened), in the process the vertical slats are turned into a position that is somewhat less than 180°. Vertical slats at the beginning of movement UP Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 53: Facade Actions

    Parameter setting 5.14. Facade actions Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.
  • Page 54 (only if movement position should be changed)  Change slat position Yes • No Slat position in % 0 … 100 (only if slat position should be changed) Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.
  • Page 55 Movement position in % 0 … 100 (only if heat protection is used) Slat position in % 0 … 100 (only if heat protection is used) Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 56: Calendar Time Switch

    • on change to 1 and periodically • on change to 0 and periodically Transmit cycle 5 secs ... 2 hrs (only if „periodically” is selected) Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 57: Weekly Time Switch

    Monday Sequence 1 Tuesday Sequence 1 Wednesday Sequ. 1 Weekly time switch OR 1 Thursday Sequence 1 Friday Sequence 1 Saturday Sequence 1 Sunday Sequence 1 Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 58: Logic

    If the logic output transmits two 8-bit objects: Logic output transmits two 8-bit objects Object type • Value [0…255] • Per cent [0…100%] • Angle [0…360°] • Scene call-up [0…127] Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.
  • Page 59 Transmit behaviour on change to 1 if switching output = 1 transmit 1 and periodically  Transmit behaviour on change to 0 if switching output = 0 transmit 0 and periodically Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 60: Use Of The And Logic

    Logic input 4 Logic input 4 inverted Logic input 5 Logic input 5 inverted Logic input 6 Logic input 6 inverted Logic input 7 Logic input 7 inverted Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.
  • Page 61 Switching output wind 3 Switching output wind 3 inverted Switching output bright 1 Switching output bright 1 inverted Switching output bright 2 Switching output bright 2 inverted Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.
  • Page 62 Switching output weekly clock Tuesday 2 Switching output weekly clock Tuesday 2 inverted Switching output weekly clock Tuesday 3 Switching output weekly clock Tuesday 3 inverted Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.
  • Page 63 Weekly clock OR 1 Weekly clock OR 1 inverted Weekly clock OR 2 Weekly clock OR 2 inverted Weekly clock OR 3 Weekly clock OR 3 inverted Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

  • Page 64: Or Logic

    Switching output AND Logic 6 inverted Switching output AND Logic 7 Switching output AND Logic 7 inverted Switching output AND Logic 8 Switching output AND Logic 8 inverted Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.
  • Page 66 Elsner Elektronik GmbH Control and Automation Engineering Sohlengrund 16 75395 Ostelsheim Phone +49 (0) 70 33 / 30 945-0 info@elsner-elektronik.de Germany +49 (0) 70 33 / 30 945-20 www.elsner-elektronik.de Technical support: +49 (0) 70 33 / 30 945-250...
