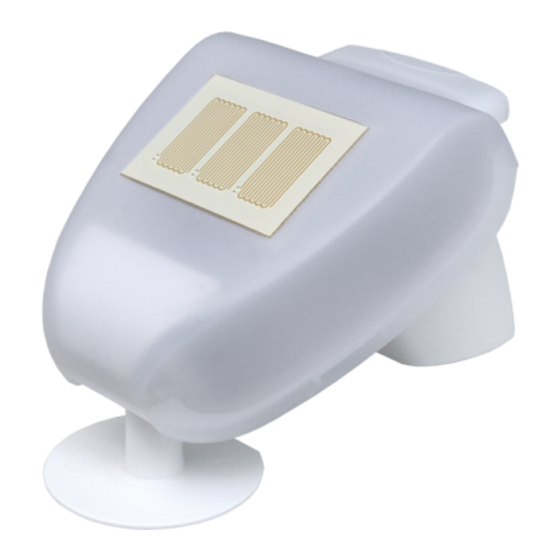

Suntracer KNX basic
Weather Station
Item numbers 3095 (230V), 3096 (12...40 V DC, 12...28 V AC)
Installation and Ad justment

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Suntracer KNX basic and is the answer not in the manual?

Questions and answers

Related Manuals for Elsner Suntracer KNX basic

Summary of Contents for Elsner Suntracer KNX basic

  • Page 1 Suntracer KNX basic Weather Station Item numbers 3095 (230V), 3096 (12...40 V DC, 12...28 V AC) Installation and Ad justment...

  • Page 3: Table Of Contents

    6.7.2. Linkage inputs of OR logic ................. 25 Elsner Elektronik GmbH • Sohlengrund 16 • 75395 Ostelsheim • Germany Weather Station Suntracer KNX basic • from software version 1.06, ETS programme version 1.1 Version: 25.06.2018. Technical changes and errors excepted.
  • Page 4 The change status (software version and date) can be found in the contents footer. If you have a device with a later software version, please check www.elsner-elektronik.de in the menu area "Service" to find out whether a more up-to- date version of the manual is available.

  • Page 5: Description

    Available for 230 V AC or for 12...40 V DC, 12...28 V AC Current 230 V AC version: max. 20 mA 12...40 V DC, 12...28 V AC version: max. 100 mA Residual ripple 10% Weather Station Suntracer KNX basic • Version: 25.06.2018 • Technical changes and errors excepted.

  • Page 6: Installation And Commissioning

    Take the device or system out of service and secure it against unintentional use, if it can be assumed, that risk-free operation is no longer guaranteed. Weather Station Suntracer KNX basic • Version: 25.06.2018 • Technical changes and errors excepted.

  • Page 7: Location

    Elsner Elektronik is not liable for any changes in norms and standards which may occur after publication of these operating instructions.

  • Page 8: Mounting The Weather Station

    The sensor comes with a combination wall/pole mount. The mount comes adhered by adhesive strips to the rear side of the housing. Fasten the mount vertically onto the wall or pole. Weather Station Suntracer KNX basic • Version: 25.06.2018 • Technical changes and errors excepted.
  • Page 9 With the hinge arm mounting, the weather sta- tion projects from beneath the roof overhang. Sun, wind and precipitation can act upon the sensors without hindrance. Weather Station Suntracer KNX basic • Version: 25.06.2018 • Technical changes and errors excepted.

  • Page 10: View Of Rear Side And Drill Hole Plan

    2.2.2. View of rear side and drill hole plan Fig. 10 a+b Drill hole plan Dimensions of rear side of housing with bracket. Subject to change for technical enhancement. Langloch 7,5 x 5 mm Weather Station Suntracer KNX basic • Version: 25.06.2018 • Technical changes and errors excepted.

  • Page 11: Weather Station Layout

    +/- to the provided clamps. Fig. 12 Remove the cable shielding under the circuit board and only feed the connector cables upwards through the openings in the circuit board. Weather Station Suntracer KNX basic • Version: 25.06.2018 • Technical changes and errors excepted.

  • Page 12: Pcb Layout

    1.5 mm² or con- ductors with fine wires Opening for bus cable Slot for KNX clamp +/- Programming push button for the teach-in of the device Programming LED Weather Station Suntracer KNX basic • Version: 25.06.2018 • Technical changes and errors excepted.

  • Page 13: Mounting The Weather Station

    “click”. Fig. 15 Make sure the cover and bottom part are properly snapped together! This picture is looking at the closed sensor from under- neath. Fastening Weather Station Suntracer KNX basic • Version: 25.06.2018 • Technical changes and errors excepted.

  • Page 14: Notes On Mounting And Commissioning

    After the auxiliary voltage has been applied, the device will enter an initialisation phase lasting a few seconds. During this phase no information can be received or sent via the bus. Weather Station Suntracer KNX basic • Version: 25.06.2018 • Technical changes and errors excepted.

  • Page 15: Addressing Of The Device At The Bus

    ATTENTION The device can be damaged if water penetrates the housing. • Do not clean with high pressure cleaners or steam jets. Weather Station Suntracer KNX basic • Version: 25.06.2018 • Technical changes and errors excepted.

  • Page 16: Transmission Protocol

    C R T value rature Highest measured temperature Sends max. tempe- C R T value rature Min/max temperature reset Reset of tempera- C R W ture Weather Station Suntracer KNX basic • Version: 25.06.2018 • Technical changes and errors excepted.
  • Page 17 Brightness threshold value 2 Actual value C R T Brightness threshold value 3 Target value C R W Brightness threshold value 3 Actual value C R T Weather Station Suntracer KNX basic • Version: 25.06.2018 • Technical changes and errors excepted.
  • Page 18 AND logic 7 Switching output C R T AND logic 7 8 Bit output A C R T AND logic 7 8 Bit output B C R T Weather Station Suntracer KNX basic • Version: 25.06.2018 • Technical changes and errors excepted.
  • Page 19 OR logic 8 Switching output C R T OR logic 8 8 Bit output A C R T OR logic 8 8 Bit output B C R T Weather Station Suntracer KNX basic • Version: 25.06.2018 • Technical changes and errors excepted.

  • Page 20: Setting Of Parameters

    5 sec • 10 sec • 30 sec • … • 2 h outputs after power up and programming Maximum telegram quota 1 • 2 • 3 • 5 • 10 • 20 telegrams per second Weather Station Suntracer KNX basic • Version: 25.06.2018 • Technical changes and errors excepted.

  • Page 21: Temperature

    Switching output: Activation delay none • 1 s • 1 min... • 2 h Switch-off delay none • 1 s • 1 min... • 2 h Weather Station Suntracer KNX basic • Version: 25.06.2018 • Technical changes and errors excepted.

  • Page 22: Wind Force

    Start threshold value in 0,1 m/s 0 … 350; 40 valid until 1. communication (only if the value communicated last is „not“ maintained or „after restoration of voltage“) Weather Station Suntracer KNX basic • Version: 25.06.2018 • Technical changes and errors excepted.
  • Page 23 • send status of the switching output made before) • if switching output = 1 => send 1 • if switching output = 0 => send 0 Weather Station Suntracer KNX basic • Version: 25.06.2018 • Technical changes and errors excepted.

  • Page 24: Brightness

    Logic output sends “one 1 bit Object“: Logic output sends one 1 bit object if logic = 1 object value 1 • 0 if logic = 0 object value 1 • 0 Weather Station Suntracer KNX basic • Version: 25.06.2018 • Technical changes and errors excepted.

  • Page 25: Linkage Inputs Of And Logic

    Brightness threshold value 3 inverted Communication object logic input 1 Communication object logic input 1 inverted Communication object logic input 2 Communication object logic input 2 inverted Weather Station Suntracer KNX basic • Version: 25.06.2018 • Technical changes and errors excepted.

  • Page 26: Or Logic

    Logic output sends • one 1 bit object • two 8 bit objects All settings of the OR logic correspond to those of the AND logic. Weather Station Suntracer KNX basic • Version: 25.06.2018 • Technical changes and errors excepted.

  • Page 27: Linkage Inputs Of Or Logic

    AND logic output 6 AND logic output 6 inverted AND logic output 7 AND logic output 7 inverted AND logic output 8 AND logic output 8 inverted Weather Station Suntracer KNX basic • Version: 25.06.2018 • Technical changes and errors excepted.
  • Page 28 Elsner Elektronik GmbH Control and Automation Engineering Sohlengrund 16 75395 Ostelsheim Phone +49 (0) 70 33 / 30 945-0 info@elsner-elektronik.de Germany +49 (0) 70 33 / 30 945-20 www.elsner-elektronik.de Technical support: +49 (0) 70 33 / 30 945-250...
