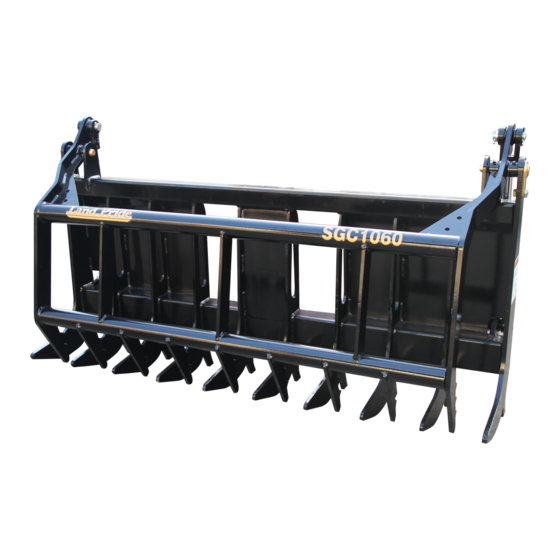

SGC1060 & SGC1072
35663
Claw Grapple With
Kubota B Hitch Plate
Table of Contents
Claw Grapple With
Skid/Loader Hitch Plate
Read the Operator's Manual entirely. When you see this symbol,
!
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French
Language, please see your Land Pride dealer.
Claw Grapple With
No Hitch Plate
380-092M
Operator's Manual
Printed 5/15/24
