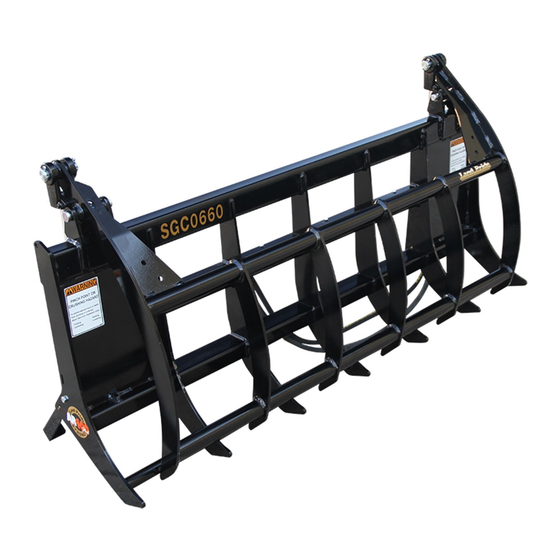

Claw Grapple
SGC0660
37407
Claw Grapple With
Kubota B Mount Hitch
Table of Contents
Claw Grapple With
Front Loader Hitch Plate
!
Read the Operator's Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French
Language, please see your Land Pride dealer.
Claw Grapple With
Blank Hitch Plate
380-164M
Operator's Manual
Printed 1/31/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SGC0660 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Land Pride SGC0660

  • Page 1 Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit. For an Operator’s Manual and Decal Kit in French Language, please see your Land Pride dealer. Printed 1/31/19...
  • Page 2: Machine Identification

    Model Number Serial Number Machine Height Machine Length Machine Width Machine Weight Delivery Date First Operation Accessories Dealer Contact Information Name: Street: City/State: Telephone: Email: California Proposition 65 WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov SGC0660 Claw Grapple 380-164M 1/31/19...
  • Page 3 Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
  • Page 4 Land Pride products. Download the appropriate App on your Refer to Parts Manual QR smart phone, open the App, point your Locator on this page for phone on the QR code and take a picture. detailed instructions. SGC0660 Claw Grapple 380-164M 1/31/19...
  • Page 5: Important Safety Information

     Important Safety Information Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual. Safety at All Times Look for the Safety Alert Symbol Careful operation is your best The SAFETY ALERT SYMBOL indicates there is a assurance against an accident.
  • Page 6: Transport Safely

     Lower attachment to the ground and  Replace parts on this attachment implement. follow all shutdown procedures with genuine Land Pride parts only.  Attach the chain to the tractor before leaving the operator’s seat to Do not alter this attachment in a way drawbar support or other specified perform maintenance.
  • Page 7 Use Seat Belt and ROPS Keep Riders Off Lights and Devices Machinery  Land Pride recommends the use of a CAB or roll-over-protective-  Slow moving tractors, and  Never carry riders on tractor or structures (ROPS) and seat belt self-propelled equipment can implement.
  • Page 8: Safety Labels

    Spray soapy water onto the cleaned area. all damaged or missing labels. Order new labels from your Peel backing from label and press label firmly onto the nearest Land Pride dealer. To find your nearest dealer, surface. visit our dealer locator at www.landpride.com.
  • Page 9: Using This Manual

    Table of Contents Introduction Introduction Owner Assistance Land Pride welcomes you to the growing family of new product owners. This Claw Grapple has been designed The dealer should complete the Online Warranty with care and built by skilled workers using quality Registration at the time of purchase.
  • Page 10: Tractor Requirements

    Tractor Weight ....See Warnings Below Before You Start IMPORTANT: Do not hitch SGC0660 grapple to a Make sure the intended tractor conforms to the skid steer. This grapple is not designed to handle requirements provided on this page.
  • Page 11: Section 1: Assembly & Set-Up

    Park Stand Rotated Down (Left-Hand Shown) “Optional Third Function Valve Kits” on page 12. Figure 1-1 If Land Pride’s optional Third Functions Valve Kits Park Stands with optional Hydraulic Hose Kits are not purchased, customer is to supply hydraulic hoses, fabric sleeves,...
  • Page 12 6. Raise loader arms until park stands (#1) are slightly off the ground. Place tractor in park or set park brake, shut tractor engine off, and remove switch key. SGC0660 Claw Grapple 380-164M 1/31/19...
  • Page 13 Secure hitch pins with wire retaining pins. Make sure wire retainers are caught over end of pins. Rotate park stands (#1) up. Refer to “Park Stands” on page 7 for detailed instructions. 8. Continue with “Hook-Up Hydraulic Hoses” on page 10. 1/31/19 SGC0660 Claw Grapple 380-164M...
  • Page 14: Purge Hydraulic System

    Hoses” on page 7. d. Tighten fittings (#3B) after all trapped air has been removed. Route hydraulic hoses through the most convenient path to access the tractor/loader power equipment couplers. SGC0660 Claw Grapple 380-164M 1/31/19...
  • Page 15: Equipment Clearances

    4. Place transmission in park or set park brake, shut tractor engine off, and remove switch key. 5. Rotate park stands (#1) down. Refer to “Park Stands” on page 7 for detailed instructions. 1/31/19 SGC0660 Claw Grapple 380-164M...
  • Page 16 Third Function Valve Kit #380-093A “Third Function Valve Kit #380-149A” above to the Figure 2-1 SGC0660 grapple fittings. This hose kit is us used with B2320, B2650, B2301, & B2601 Kubota tractors with Third Function Valve Kit #380-093A front mounted loaders.
  • Page 17: Section 2: Options

    Refer to Figure 2-4 on page 13: mounted loader. This kit is designed to fit: • L3301 & L3901 Kubota tractors with LA525 front • mounted loader. B3350 & B2650 Kubota tractors with LA534 or LA534A front mounted loader. 1/31/19 SGC0660 Claw Grapple 380-164M...
  • Page 18: Operating Checklist

    A person or animal could be nearby in a blind spot. putting equipment into service. Operate grapple through its full range of movements to check for clearances. Refer to “Equipment Clearances” on page 11. SGC0660 Claw Grapple 380-164M 1/31/19...
  • Page 19: Section 3: Operating Procedures

    • Wear appropriate personal protective gear, including eye protection when appropriate, when operating a power machine without an enclosure or protective shield. Dust and debris can get into the eyes. 1/31/19 SGC0660 Claw Grapple 380-164M...
  • Page 20: Transport Safety

    Always drive at a safe speed and slow down when going around corners. Avoid sudden braking. 8. Leave enough clearance when turning so that the grapple and load does not contact obstacles such as vehicles, buildings, trees, or fences. SGC0660 Claw Grapple 380-164M 1/31/19...
  • Page 21 4. Close grapple claws around the roots of the bush. 5. Raise grapple up to rip bush from ground. 1/31/19 SGC0660 Claw Grapple 380-164M...
  • Page 22 Proceed by getting onto the seat of your tractor and starting it up. It isn’t going to take you long to learn how to use your new Land Pride Claw Grapple, but we do recommend that you take a little time to practice securely attaching and detaching your grapple to and from your loader hitch plate.
  • Page 23: Section 4: Maintenance & Lubrication

    3. Repaint parts where paint is worn or scratched to prevent rust. Ask your Land Pride dealer for aerosol • Check hydraulic hoses and fittings frequently. Brush and touch-up paint.
  • Page 24: Lubrication Points

    Legend 37412 Upper Claw Grapple Pivot Points 2- Zerks (1 per side) Type of Lubrication: Multi-purpose Grease Quantity = As required (make sure grease is visible) SGC0660 Claw Grapple 380-164M 1/31/19...
  • Page 25: Section 5: Specifications & Capacities

    Jaw opening 35" Number of teeth 7 Bottom & 6 Top Teeth spacing 9 7/8" Tooth thickness 5/16" AR400 Working length of teeth 8 3/8" Hydraulic cylinder 2" x 6" x 1 1/8" Rod 37413 1/31/19 SGC0660 Claw Grapple 380-164M...
  • Page 26: Section 6: Features & Benefits

    Greasable jaw pivot Extends service life. Can control all grapple and loader movements with a joystick. Provides Third Function Valve Kit (Accessory) easy hooking and unhooking of hydraulic hoses at the front of the loader. SGC0660 Claw Grapple 380-164M 1/31/19...
  • Page 27: Section 7: Troubleshooting

    Prying objects out of the ground. Never use grapple to pry objects. Wedging objects between teeth with upper Do not wedge objects between teeth with claw. upper claw. 1/31/19 SGC0660 Claw Grapple 380-164M...
  • Page 28: Torque Values Chart For Common Bolt Sizes

    = nominal thread diameter in millimeters x thread pitch 1-1/2" - 12 1330 2970 2190 4820 3560 Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above. SGC0660 Claw Grapple 380-164M 1/31/19...
  • Page 29: Warranty

    This Warranty is limited to the repair or replacement of any defective part by Land Pride and the installation by the dealer of any such replacement part, and does not cover common wear items. Land Pride reserves the right to inspect any equipment or parts which are claimed to have been defective in material or workmanship.
  • Page 30 Corporate Office: P.O. Box 5060 Salina, Kansas 67402-5060 USA www.landpride.com...
