ASSEMBLY:
Requires at least 2 people for assembly.
Assemble the chair as per the assembly instructions below.
DIRECTIONS:

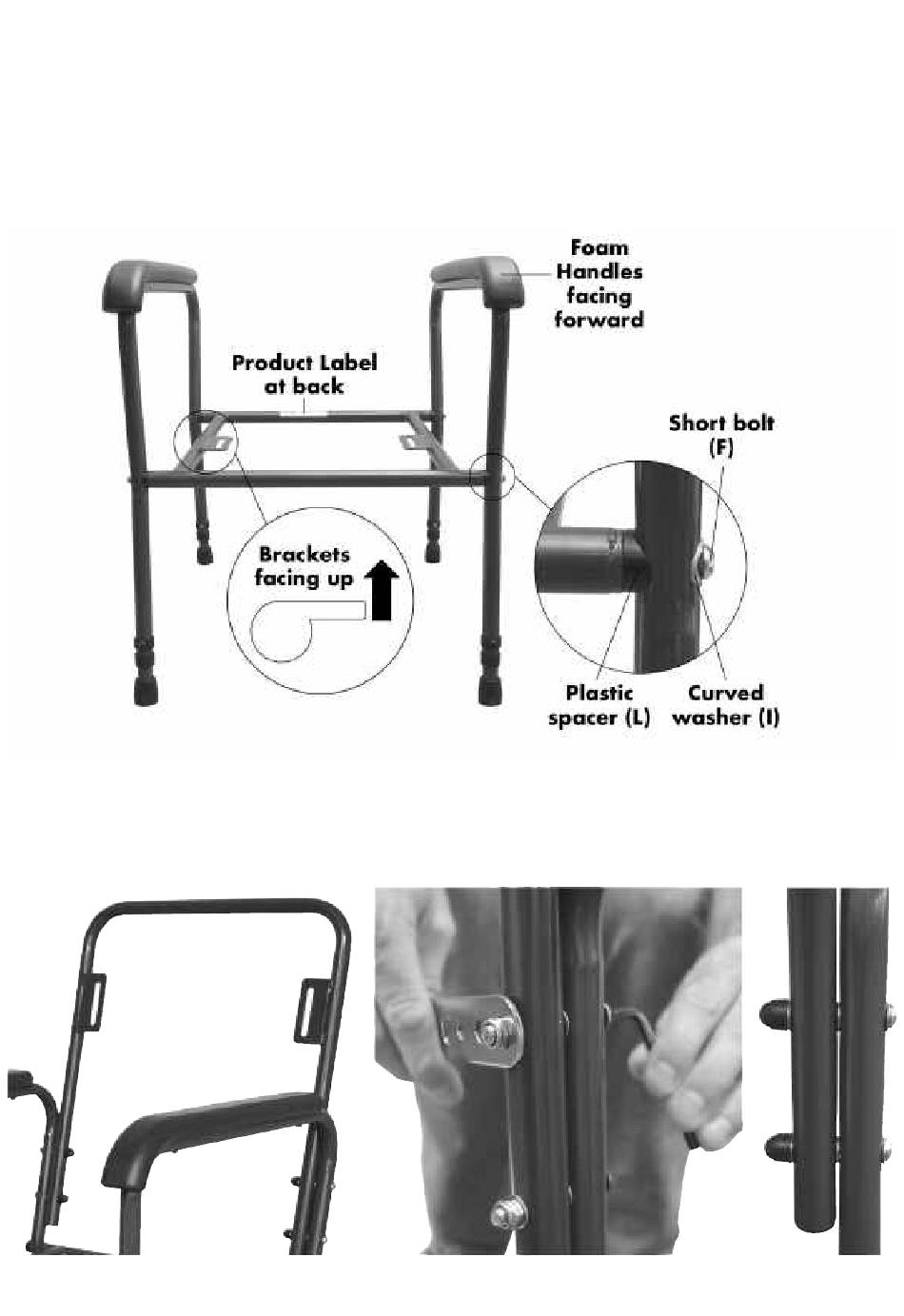

1) Attach seat frame (C) to chair sides (E), using short bolt (F), a plastic spacer (L) and 1 curved washer (I).
• Ensure seat brackets are facing up, and ensure Aidapt label is at the back. (fig. 1)
• Foam handles facing forwards.
• Label at back.
• Brackets facing up.
Fig. 1
2) Use an allen key (O) to attach rear seat frame (D) to chair sides (E), ensuring rear seat frame brackets (fig. 2) are
on the inside, using long bolt (G), 3 washers (H) and 1 nut (K). (fig. 3)
Repeat this step to ensure there are 2 bolts (G) fastened on both sides.
Ensure bolts (G) are tightened for use, then cover end of bolt using bolt cover caps (J). (fig. 4) Use spanner (N) to
put on nut (K).
Fig. 2
Fig. 3 Fig. 4
